- Page 1 If you have damaged or missing parts please contact the company you purchased the product from and notify them of the issue right away. CAUTION: Do not install damaged parts!!! Raptor Series Truck Accessories | P:877.769.3765 | F: 877.875.7446 | E: sales@raptorseries.com...
- Page 2 In the event that you need to ship your part back to return/exchange, please ship to the warehouse below: CYC Returns Warehouse 2415 Cathy Lane Jasper, IN 47546 Raptor Series Truck Accessories | P:877.769.3765 | F: 877.875.7446 | E: sales@raptorseries.com...
- Page 3 Raptor Series Warranty LIMITED TEN (10) YEAR WARRANTY For Powder Coated Steel Products CYC Engineering, Inc. guarantees the original purchaser of our products a limited ten (10) year warranty from the date of original purchase against manufacturer defects in materials, workmanship and finish under normal use.

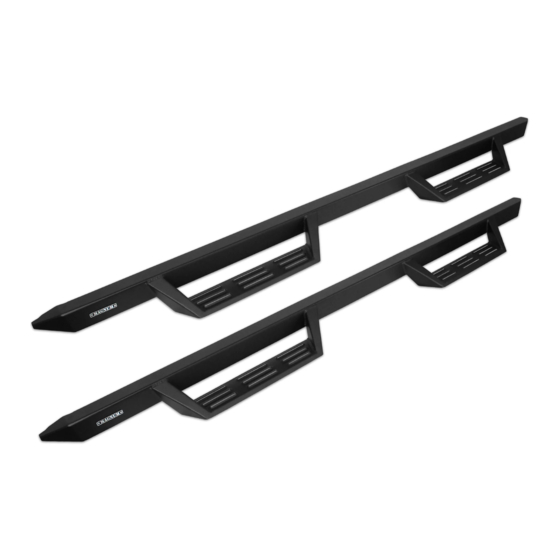

- Page 4 Rev 1 GTS10FD MAGNUM RT STEPS Components: Hardware: M8 x 25 mm Hex Head Bolts Qty 18 M8 Hex Head Nuts Qty 6 M8 Flat Washers Qty 24 Passenger M8 Lock Side Step Bar Washers Qty 1 Qty 24 RTSPN175 Bolt/Nut Plates Qty 6 M8 Plastic...
- Page 5 Rev 1 Note: When installing the brackets and bars, all hardware must be left loose until all the items are attached. Remove all contents from the package and check stainless steel tubes for any damage. Also, verify that all components and hardware listed above are included before you begin installation.
- Page 6 Rev 1 Fasten each bracket using two (2) M10 x 30MM Hex Head Bolts, two (2) M10 Flat Washers, two (2) M10 Lock Washers. M10 X 30 MM HEX HEAD BOLT M10 LOCK WASHER M10 FLAT F r o WASHER M10 FLAT WASHER M10 LOCK WASHER CENTER AND...
- Page 7 Rev 1 Installing the Step Bar MOUNTING RTSPN175 BRACKET BOLT/NUT PLATE Line up mounting points on the step bar with the M8 FLAT mounting holes in each WASHER bracket. M8 LOCK WASHER Fasten the step bar to each bracket using one (1) M8 x 25MM RTSPN175 Bolt/Nut Plate, HEX HEAD...
