Your satisfaction is important to us, please let us help!
If you have any questions or concerns during the installation, our support representa-
tives are available to assist you.
Please call: 1-877-769-3765 or Live Chat at www.raptorseries.com
If you have damaged or missing parts please contact the company you purchased the
product from and notify them of the issue right away.
CAUTION: Do not install damaged parts!!!
Raptor Series Truck Accessories | P:877.769.3765 | F: 877.875.7446 | E: sales@raptorseries.com
Advertisement
Related Manuals for Raptor Series MAGNUM RT Series
Summary of Contents for Raptor Series MAGNUM RT Series
- Page 1 If you have damaged or missing parts please contact the company you purchased the product from and notify them of the issue right away. CAUTION: Do not install damaged parts!!! Raptor Series Truck Accessories | P:877.769.3765 | F: 877.875.7446 | E: sales@raptorseries.com...
- Page 2 In the event that you need to ship your part back to return/exchange, please ship to the warehouse below: CYC Returns Warehouse 2415 Cathy Lane Jasper, IN 47546 Raptor Series Truck Accessories | P:877.769.3765 | F: 877.875.7446 | E: sales@raptorseries.com...
-
Page 3: Limited Lifetime Warranty

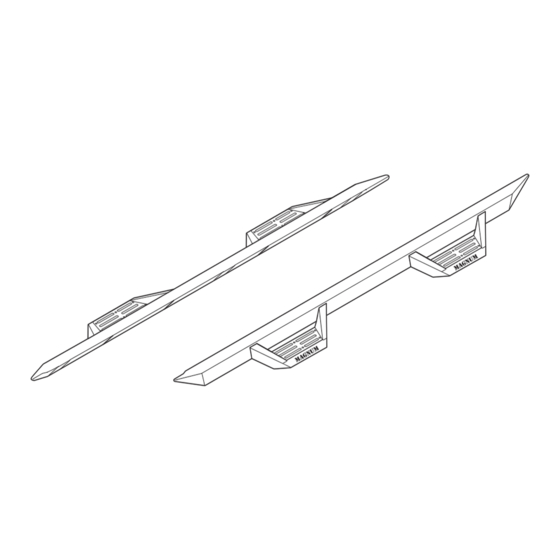

Raptor Series Warranty LIMITED TEN (10) YEAR WARRANTY For Powder Coated Steel Products CYC Engineering, Inc. guarantees the original purchaser of our products a limited ten (10) year warranty from the date of original purchase against manufacturer defects in materials, workmanship and finish under normal use. - Page 4 Rev 1 RTS93FD MAGNUM RT STEPS Components: Hardware: RTSPN175 M8 x 30 mm Hex Head Bolts Bolt/Nut Plates Qty 6 Qty 18 M8 Plastic M8 Hex Head Push Nuts Nuts Qty 6 Qty 6 M8 Flat Washers Qty 24 Passenger Driver Side Side Step Bar Step Bar...
- Page 5 Rev 1 Note: When installing the brackets and bars, all hardware must be left loose until all the items are attached. Remove all contents from the package and check steps for any damage. Also, verify that all components and hardware listed above are included before you begin installation. Remove the black tape and large rubber grommets over the mounting holes located on the inside face of the rocker panel.
- Page 6 Rev 1 Install first U Nut Clip so that the threads are to the inside of the rocker panel. Be careful not to drop U-NUT the U Nut Clip inside of the rocker panel (4a). Install second U Nut Clip onto the pinchweld making sure the threads are facing downward (4b).
- Page 7 Rev 1 Installing the Brackets Install Front/Rear Brackets to the rocker panel using one (1) M8 Hex Head Bolt, one (1) M8 Lock Washer and one (1) M8 Flat Washer per bracket (6a). Attach lower portion of Front/Rear Brackets using one (1) M8 Hex Head Bolt, one (1) M8 Lock Washer and one (1) M8 Flat Washer per bracket (6b).
- Page 8 Rev 1 Installing the Step Bar RTSPN175 BOLT/NUT PLATE Line up mounting points on MOUNTING BRACKET the step bar with the mounting holes in each bracket. M8 FLAT WASHER M8 LOCK Fasten the step bar to each WASHER bracket using one (1) RTSPN175 Bolt/Nut Plate, one (1) Plastic Push Nut, one (1) M8 Hex Head Nut, two (2) M8 Lock Washers,...
