Raptor Series 1301-0151 Manual

1301-0151
RUNNING BOARD

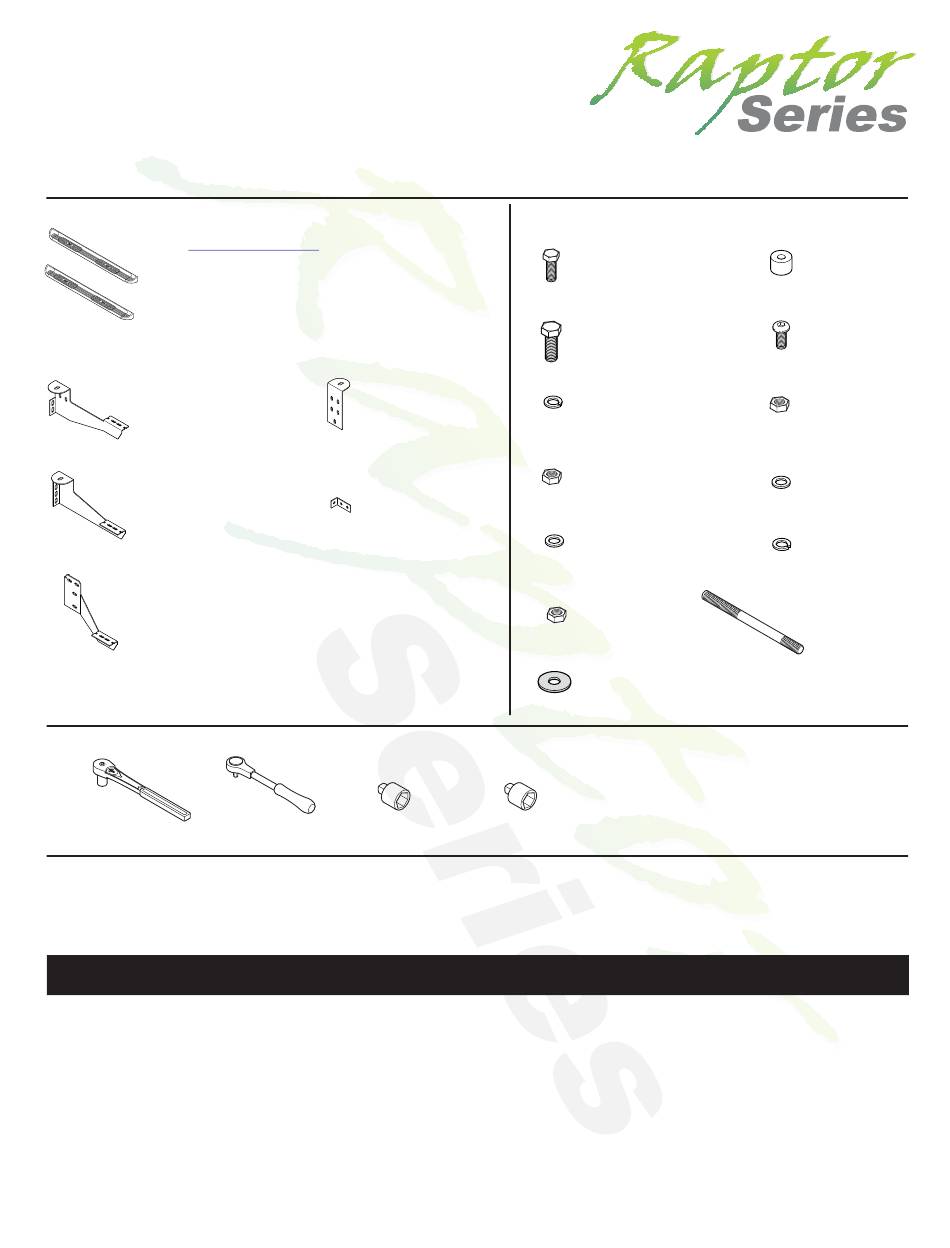

Components:
Driver Side Running Board
Qty. 1
Passenger Side Running Board
Qty. 1
Front Bracket
Qty 2
Center Bracket
Qty 2
Rear Bracket
Qty 2
Tools Required:
RATCHET
Torque Specifications:
For Cab Mount Installations
Cab mount bolts are torqued to 70 Ft Lbs. All other M8 through M12 sized bolts/nuts are set to 15-20 ft lbs.
Note: When installing the brackets and bars, all hardware must be left loose until all the items are attached.
1.
Remove all contents from the package and check stainless steel running boards for any damage. Also,
verify that all components and hardware listed above are included before you begin installation.
2.
Read installation manual and installation drawing completely. Understand all
brackets and bolts before installation.
Rear Bracket
Mount
Qty 2
L Bracket
(Used On
1500 Model Only)
TORQUE
17MM SOCKET
WRENCH
Hardware:
M8 x 30 MM
Hex Head Bolts
Qty 2
M10 x 30 MM
Hex Head Bolts
Qty 6
M10 Lock
Washers
Qty 12
M10 Hex Head
Nut
Qty 24
M10 Flat
Washers
Qty 30
M8 Hex Head
Nut
Qty 2
Spacer Washer
Qty 12
14MM SOCKET
1
Rev 2
Rubber Block
Qty 6
M5 Button
Head Bolt
Qty 12
M5 Hex Head
Nut
Qty 12
M8 Flat
Washers
Qty 4
M8 Lock
Washers
Qty 2
Load Reaction
Studs
Qty 6
1301-0151
