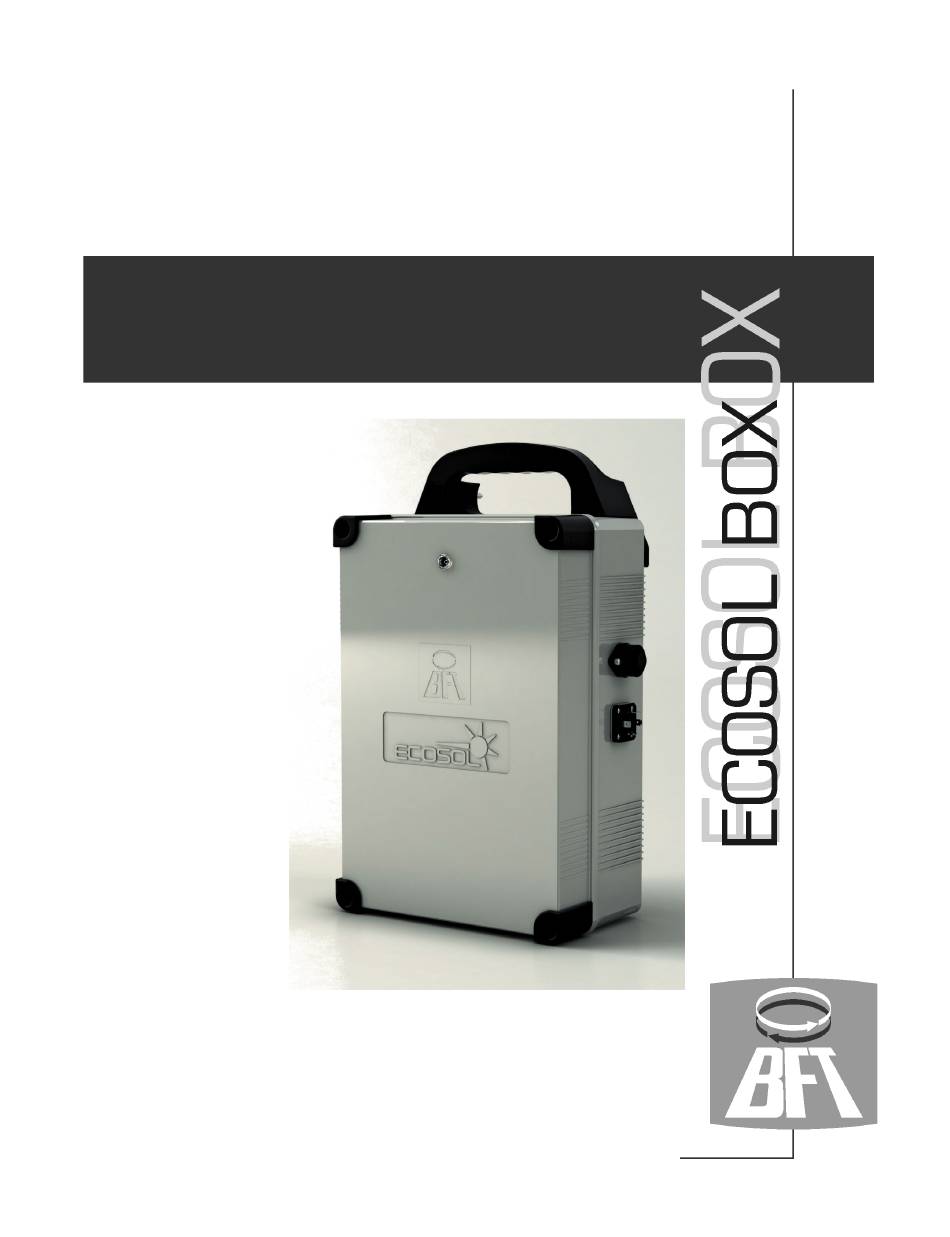

- Page 1 QUICK INSTALLATION GUIDE ECOSOL BOX TO LIBRA UL-R, ARES AND DEIMOS BT www.BFTGateOpeners.com | (800) 878-7829 | Sales@BFTGateOpeners.com...
- Page 2 Tighten connector to cable terminal to Tighten connector to cable terminal to the ecosol box the ecosol box the ecosol box the ecosol box connector connector Tighten connector to cable Tighten connector to cable www.BFTGateOpeners.com | (800) 878-7829 | Sales@BFTGateOpeners.com...
- Page 3 ECOSOL CONNECTIONS TO THE DEIMOS BT & ARES TRANSFORMER WIRES MUST BE DISCONNECTED!! DEIMOS BT / ARES NECESSARY CONNECTIONS TERMINAL STRIP OPTIONAL CONNECTIONS 3 -24 V IN TERMINAL ON ROUND CONNECTOR 4 +24 V IN TERMINAL ON SQUARE CONNECTOR 12 -24 V OUT + V-SAFE 13 +24 V OUT 21 COMMON...
- Page 4 ECOSOL CONNECTIONS TO LIBRA UL-R ALWAYS-ON ACCESSORY POWER 24VDC RADIO TRANSMITTER PROGRAMMING DIPSWITCH PROGRAMMING 1. Press RADIO LEARN BUTTON once. LED3 should DIPSWITCH 1 blink once every second. Turn on when ECOSOL Double (external battery pack) is 2. Press and hold the 2 top buttons on your connected to Ecosol board.
