Summary of Contents for BFT ORION G

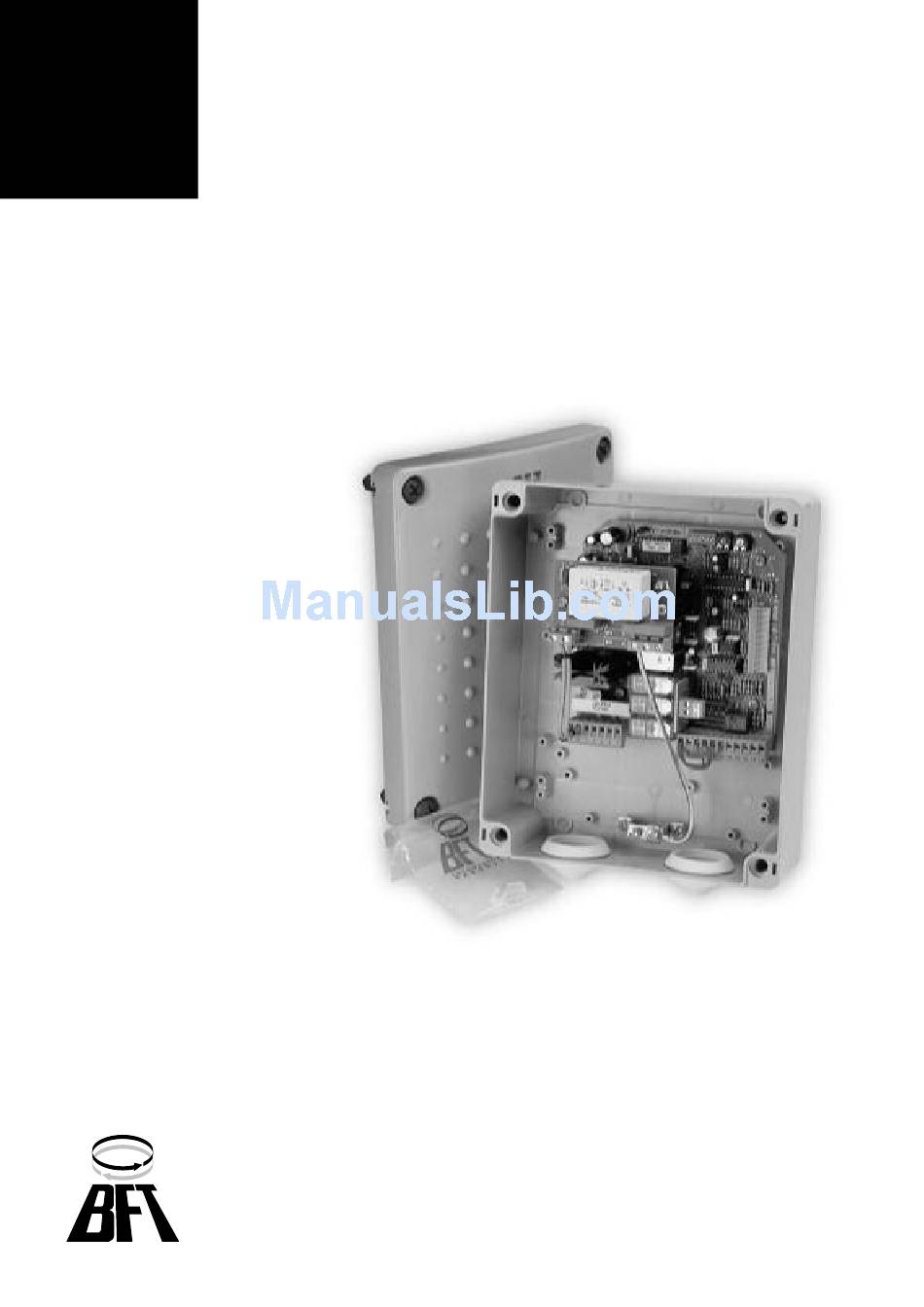

- Page 1 ORION G D811230 30-11-00 Vers. 04 CONTROL UNIT...
- Page 2 1) GENERAL OUTLINE the power supply connections. JP3 FILTER The ORION G board is used to control one single-phase motor of up to 800W. 1 Earth (GND). Its main feature is the electronic breaking control during the stopping phase. 2-3 Single-phase power supply: 230V ±10% 50/60 Hz. (2 Neutral - 3 ATTENTION - Only qualified personnel should be employed.
- Page 3 Braking should not be sudden. b) Braking which is too weak creates slippage due to inertia. Braking can be increased by turning it clockwise. 7) LED FUNCTIONS (Fig.1) 7.1) BOARD ORION G 1 - START Lights up upon start impulse. 2 - STOP Turns off upon opening of the block contact.
- Page 4 ORION G-GBR ORION G-GBR Fig. 1 Fig. 2 230V 50/60Hz 10% Fig. 3 1) TRIMMER SIGILLATO TRIMMER SCALED TRIMMER SIGILLÈ TRIMMER VERSLEGELT TRIMMER SELLADO TRIMMER LACRADO Start 2) INSERIMENTO SCHEDA RADIO RIC. ENCLENCHEMENT CARTE RADIOREC. PLUGGING-IN OF RADIO-RECEIVER BOARD CONEXION TARJETA RADIORRECEPTOR EINFÜGUNG KARTE FUNKEMPÄNGER...
