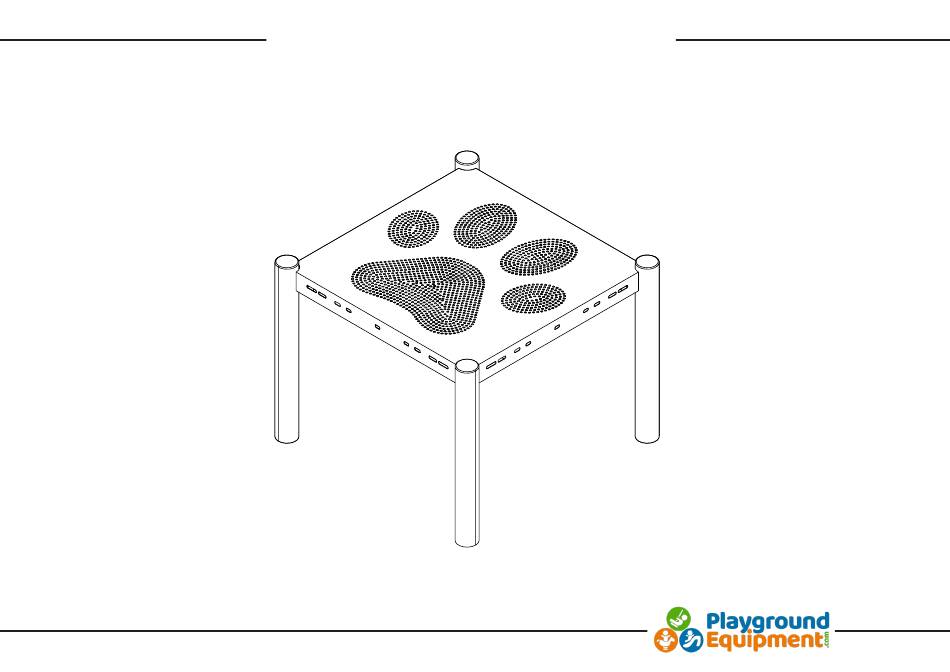

- Page 1 Paw Print Grooming Deck PDP012 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PDP012 - Install Guide Metal Paw Print Deck Qty: 1 Paw Print Deck Support Posts Qty: 4 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PDP012 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com...
- Page 4 PDP012 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PDP012 - Install Guide In-Ground Mounting Option To In-Ground mount the Dog Park Equipment, start by digging a hole appropriate to the equipment being installed. For most of the Dog Park Equipment, a 12” diameter x 18” deep footing is used. (Some Equipment may specify a different size footing.)
- Page 6 PDP012 - Install Guide Connect the Paw Print Deck to the Support Posts using one (1) M10*25mm Bolt, and one (1) M10 Washer for each connection point. Then Place the assembled equipment into the footings. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
