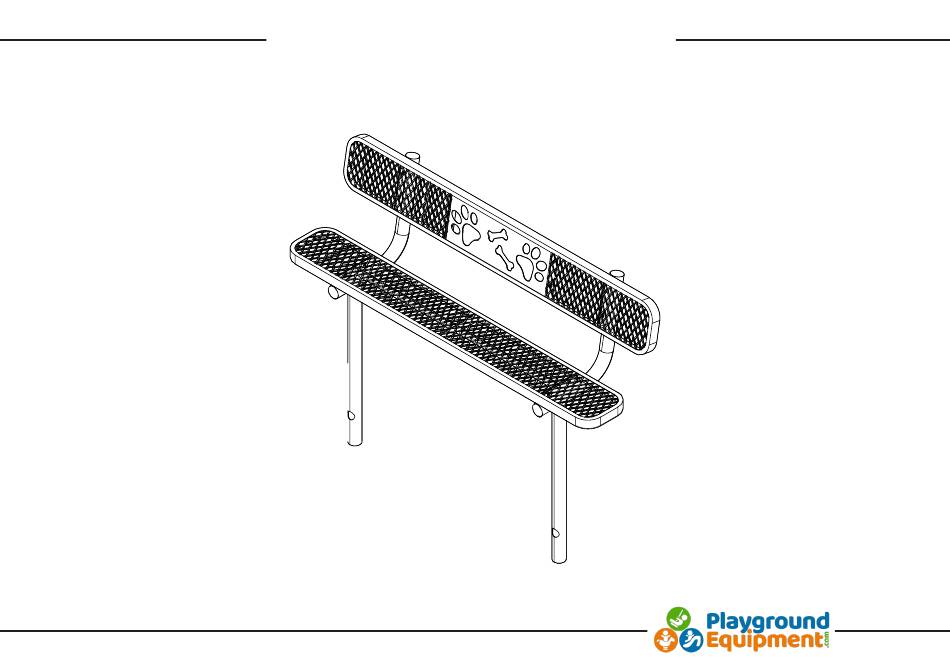

- Page 1 6 ft Dog Park Bench PDP001 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PDP001 - Install Guide Dog Park Bench Back Qty: 1 Dog Park Bench Seat Qty: 1 Dog Park Bench Leg Qty: 2 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PDP001 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com...
- Page 4 PDP001 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PDP001 - Install Guide In-Ground Mounting Option To In-Ground mount the Dog Park Equipment, start by digging a hole appropriate to the equipment being installed. For most of the Dog Park Equipment, a 12” diameter x 18” deep footing is used. (Some Equipment may specify a different size footing.)
- Page 6 PDP001 - Install Guide Attach the Bench Seat to the two Bench Legs using two (2) M10*25mm Bolts, four (4) M10 Washers, and two (2) M10 Lock Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 7 PCE001 - Install Guide Connect the Bench Back to the top of the Bench Legs using using two (2) M10*25mm Bolts, four (4) M10 Washers, and two (2) M10 Lock Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
