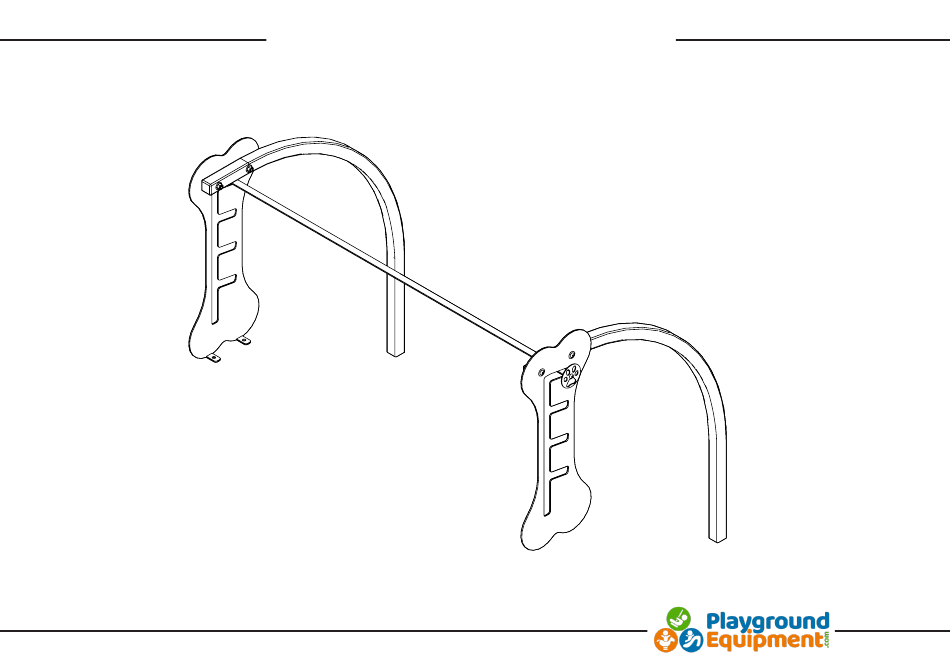

- Page 1 Dog Bone Jump Bar PDP013 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PDP013 - Install Guide Dog Bone Support Frame Qty: 2 Arch Support Post Qty: 2 Dog Jump Bar Qty: 1 Paw Print Safety Stop Qty: 2 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PDP013 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com...
- Page 4 PDP013 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PDP013 - Install Guide In-Ground Mounting Option To In-Ground mount the Dog Park Equipment, start by digging a hole appropriate to the equipment being installed. For most of the Dog Park Equipment, a 12” diameter x 18” deep footing is used. (Some Equipment may specify a different size footing.)
- Page 6 PDP013 - Install Guide Surface Mounting Option The recommended Surface Mounting option for the Dog Park equipment is to use the provided J-Bolts. Start by digging a hole appropriate to the specific equipment being installed. For most of the Dog Park Equipment, a 12”...
- Page 7 PDP013 - Install Guide Assemble the Dog Bone Support Frames and the Arch Support Posts using two (2) M10*65mm bolts, four (4) M10 Washers, and two (2) M10 Lock Nuts for each side. Mount the Dog Bone Jump Bar to...
- Page 8 PDP013 - Install Guide Insert the Dog Jump Bar into the slots of the Dog Bone Support Frames. Attach the Paw Print Safety Stops to each end of the Dog Jump Bar using one (1) M10*25mm Bolt for each side.
