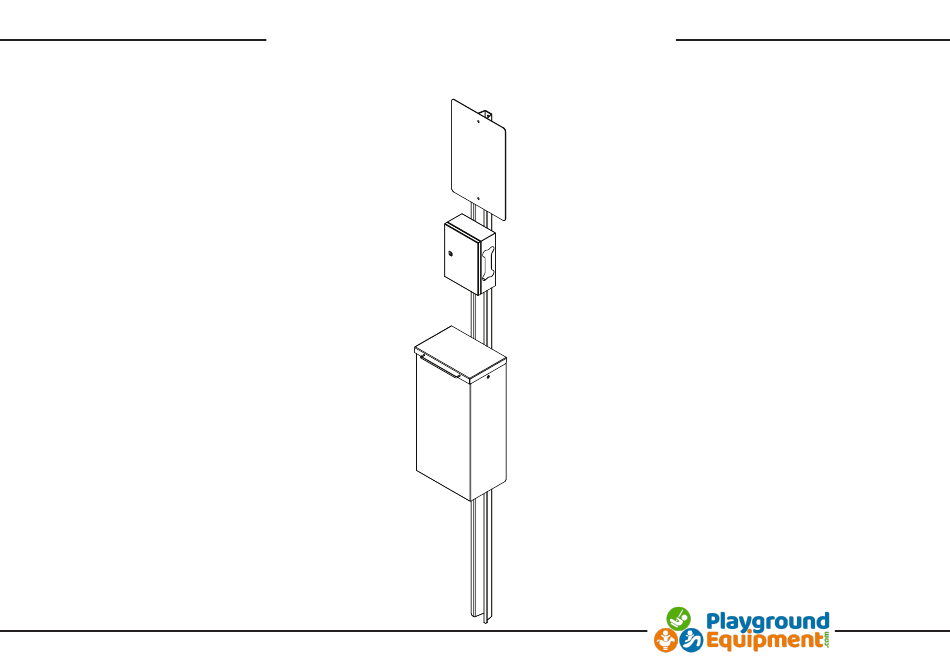

- Page 1 Pet Waste Station PDP003 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PDP003 - Install Guide Pet Waste Bag Dispenser Qty: 1 Pet Waste Station Post Qty: 1 Pet Waste Receptacle Qty: 1 Pet Waste Station Sign Qty: 1 Spacer Bracket Qty: 1 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PDP003 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com...
- Page 4 PDP003 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PDP003 - Install Guide In-Ground Mounting Option To In-Ground mount the Dog Park Equipment, start by digging a hole appropriate to the equipment being installed. For most of the Dog Park Equipment, a 12” diameter x 18” deep footing is used. (Some Equipment may specify a different size footing.)
- Page 6 PDP003 - Install Guide Attach the Waste Station Sign to the Waste Station Post using two (2) M8*80mm Bolts, and two (2) M8 Lock Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 7 PDP003 - Install Guide Attach the Waste Bag Dispenser to the Waste Station Post using two (2) M8*80mm Bolts, and two (2) M8 Lock Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 8 PDP003 - Install Guide Slide the Spacer Bracket up over the post from the bottom. This spacer will align with the top bolt hole of the Waste Receptacle. Attach the Waste Recepticle to the Waste Station Post using three (3) M8*80 Bolts, and three M8 Lock Nuts.
