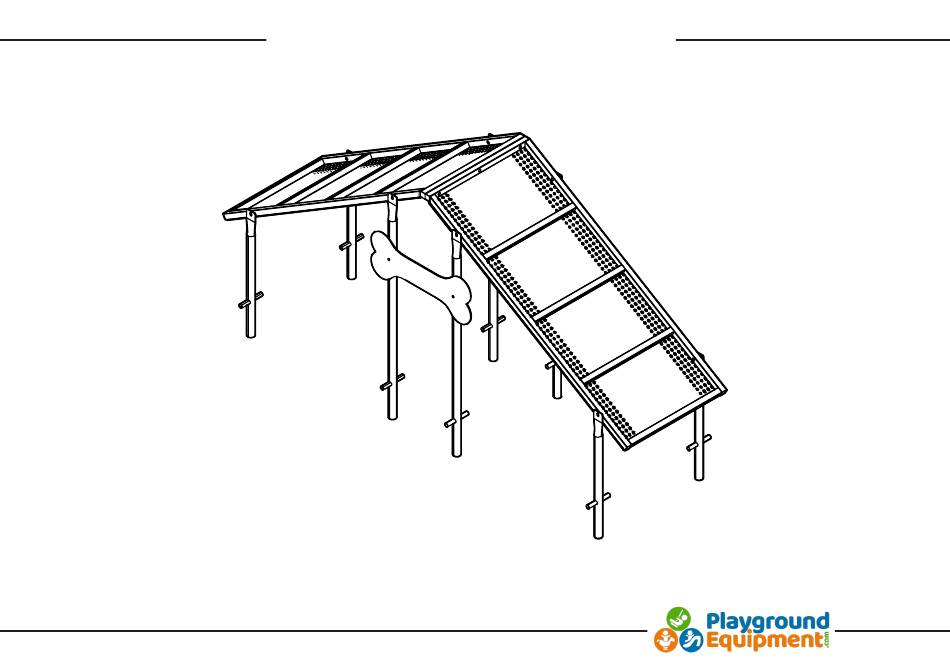

- Page 1 Dog A-Frame Agility Ramp PDP010 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PCE001 - Install Guide A-Frame Ramp Section Qty: 2 Ramp Leg - Long Qty: 4 Dog Bone Attachment Qty: 2 Ramp Leg - Short Qty: 4 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PCE001 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 4 PCE001 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PCE001 - Install Guide In-Ground Mounting Option To In-Ground mount the Dog Park Equipment, start by digging a hole appropriate to the equipment being installed. For most of the Dog Park Equipment, a 12” diameter x 18” deep footing is used. (Some Equipment may specify a different size footing.) Place the equipment in the footing hole and...
- Page 6 PDP010 - Install Guide Attach the two sections of the A-Frame Ramp together in the center using three (3) M8*45mm Bolts, three (3) M8 Washers, and three (3) Barrel Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 7 PDP010 - Install Guide Attach the four (4) Ramp Leg -Short and the four (4) Ramp Leg -Long sections to the A-Frame Ramp using eight (8) M8*20mm Bolts, eight (8) M8 Washers, and eight (8) Barrel Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097...
- Page 8 PDP010 - Install Guide Attach the two (2) Dog Bone Attachments to the assembled Ramp Leg - Long sections using four (4) M8*50mm Bolts, eight (8) M8 Washers, and four (4) M8 Lock Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
