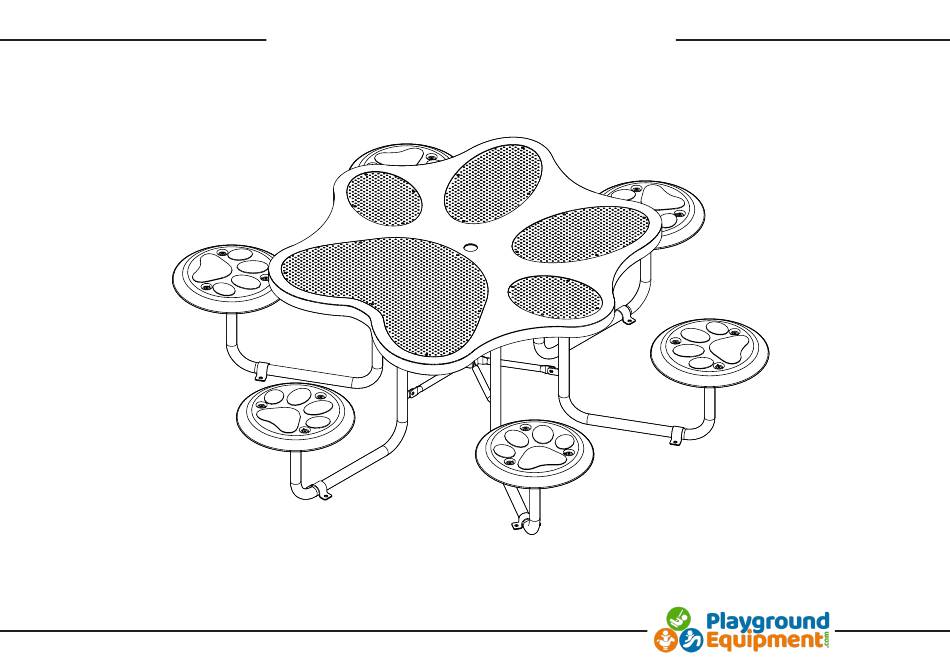

- Page 1 Paw Print Table PDP008 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PDP008 - Install Guide Paw Print Table Top Qty: 1 Table Center Support Qty: 1 Paw Print Table Leg Qty: 6 Mounting Bracket Qty: 6 Paw Print Seat Qty: 6 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PDP008 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com...
- Page 4 PDP008 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PDP008 - Install Guide Surface Mounting Option The recommended Surface Mounting option for the Dog Park equipment is to use the provided J-Bolts. Start by digging a hole appropriate to the specific equipment being installed. For most of the Dog Park Equipment, a 12”...
- Page 6 PDP008 - Install Guide Attach the Paw Print Seats to the Paw Print Table Legs using three (3) M8*20mm Bolts, six (6) M8 Washers, and three (3) M8 Lock Nuts. (Repeat for each of the legs.) www.PlaygroundEquipment.com Toll Free: 1-800-667-0097...
- Page 7 PDP008 - Install Guide Attach each of the six assembled Paw Print Table Legs to the Center Support using one (1) M10*25mm Bolt, two (2) M10 Washers, and one (1) M10 Lock Nut. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 8 PDP008 - Install Guide Place the Paw Print Table Top onto the assembled legs. Line up the holes on the underside frame of the Table Top and connect each leg using two (2) M10*25mm Bolts, four (4) M10 Washers, and two (2) M10 Lock Nuts.
