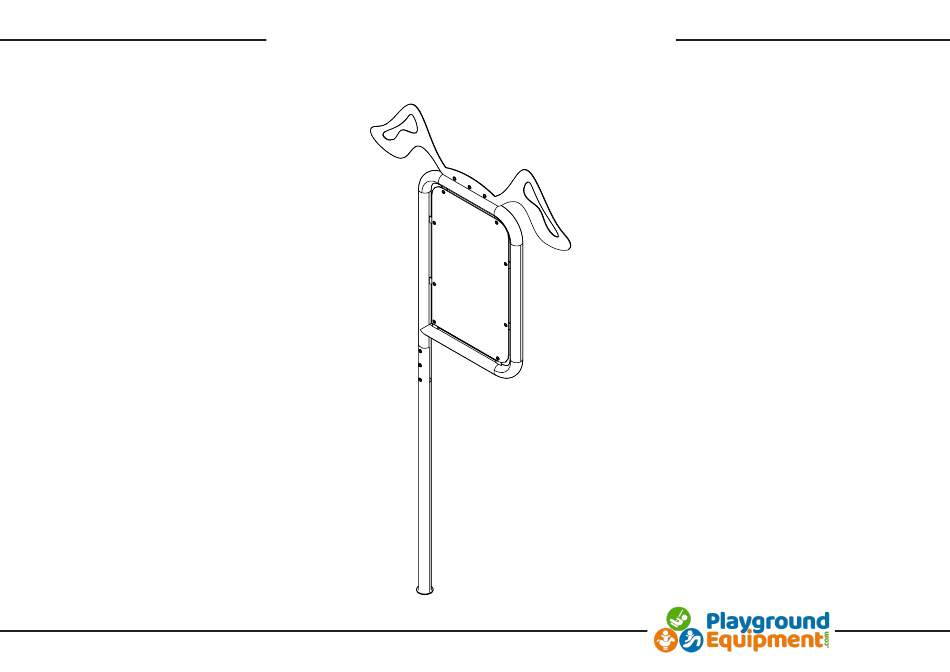

- Page 1 Dog Park Sign PDP005 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 2 PDP005 - Install Guide Dog Park Sign Board Qty: 1 Dog Park Sign Ears Qty: 1 Dog Park Sign Post Qty: 1 www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 3 PDP005 - Install Guide M8*20mm M8*30mm M8*45mm M8*50mm M8*80mm M10*25mm M10*35mm M10*65mm M8 Washer M10 Washer M10 Spring M8 Lock Nut M10 Lock Nut Barrel Nut Washer Material Specifications: Posts - Steel Plastics - Low Density Polyethelyne Hardware - Stainless Steel www.PlaygroundEquipment.com...
- Page 4 PDP005 - Install Guide Soil Soil In-ground Surface Concrete Concrete Mounting Mounting www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 5 PDP005 - Install Guide In-Ground Mounting Option To In-Ground mount the Dog Park Equipment, start by digging a hole appropriate to the equipment being installed. For most of the Dog Park Equipment, a 12” diameter x 18” deep footing is used. (Some Equipment may specify a different size footing.)
- Page 6 PDP005 - Install Guide Attach the Dog Park Sign Ears to the Dog Park Sign Board using three (3) M8*20mm Bolts, six (6) M8 Washers, and three (3) M8 Lock Nuts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097 International: 1-317-747-0203...
- Page 7 PDP005 - Install Guide Attach the Dog Park Sign Board to the Dog Park Sign Post by lining up overlapping sections of the split post, and affix using three (3) M8*45mm Bolts to secure to the threaded inserts. www.PlaygroundEquipment.com Toll Free: 1-800-667-0097...
