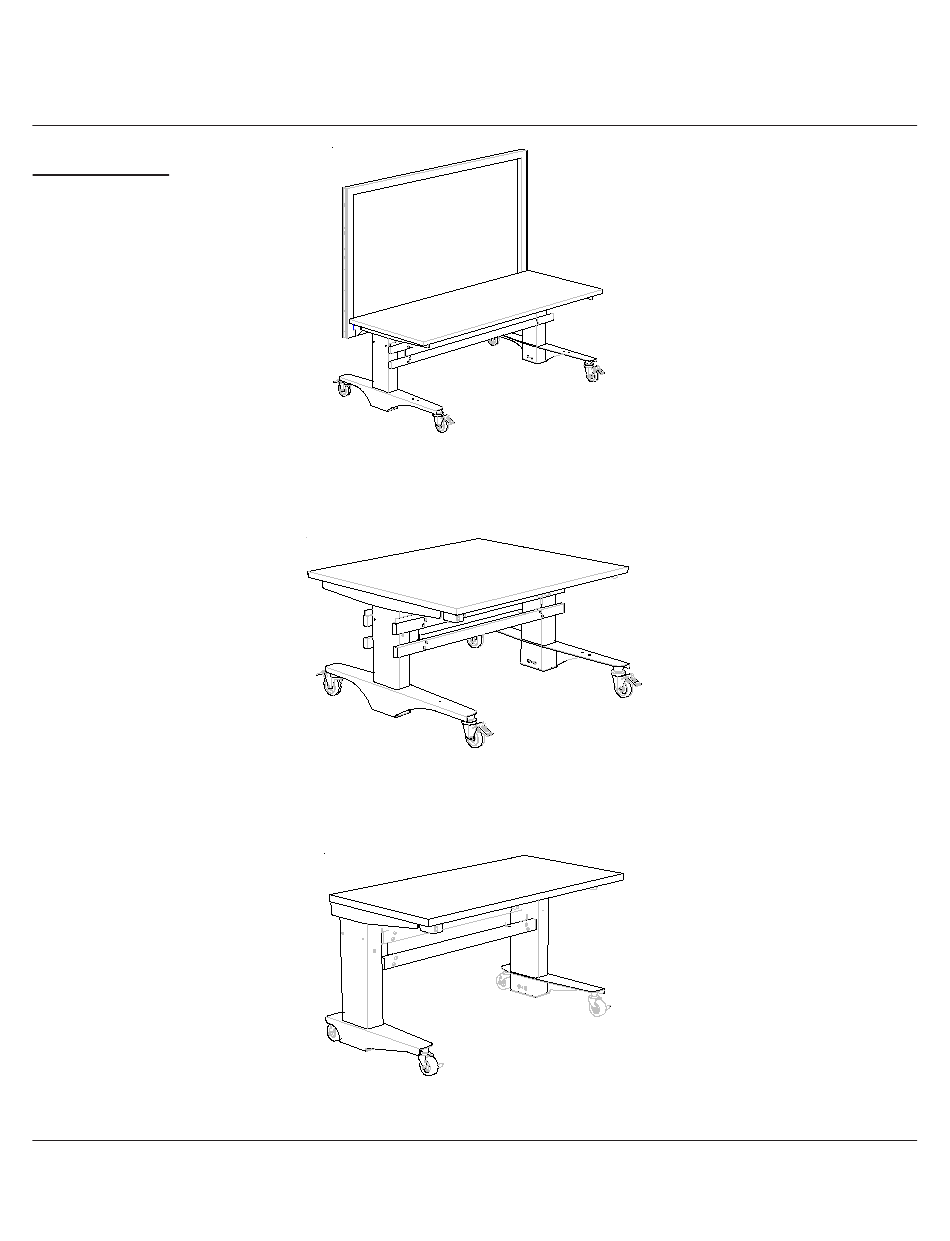

C4310. Work Station, Electric
C4311. Work Station, Manual
C4312. Work Table, Electric
C4313. Process Table, Electric
Healthcare
Height Adjustable Tables
®
Instructions
Part no. 1b3x59 rev E.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Healthcare C4310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HermanMiller Healthcare C4310

  • Page 1 Healthcare Height Adjustable Tables ® Instructions Products: C4310. Work Station, Electric C4311. Work Station, Manual C4312. Work Table, Electric C4313. Process Table, Electric Part no. 1b3x59 rev E. © 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ® Y, Z, Action Office, Mirra and Healthcare are among the registered trademarks of Herman Miller, Inc. Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
  • Page 2: Tools Required

    Tools Required: Power drill with Bit set Allen Wrenches Phillips Screwdriver Parts Included: Work Surface Riser Frame (for C4310. & C4311. only) Control Box Drawer Bearers (for Electric) Part no. 1b3x59 rev E. © 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
  • Page 3 Procedure: C4310. & C4311. Work Station Assembly 26 1/2” 1. Lower the ErgoStat base to its lowest position. -18x screw 5/16 5/8” (95010302) 1/4” 2. Install two 5/16-18x5/8” socket button head screws in each top support as shown (one in the front tapped hole and one in the bottom tapped hole). Leave at least a 1/4” gap between the side of the support bracket and underside of the screw head.
  • Page 4 Riser Frame Blade 3. Rest the top tube of the Riser Frame on the floor and center the Riser Frame over the width of the ErgoStat with the Riser Frame blades outside the top supports. Engage the notches in the tip of the Riser Frame Blades in the front top support screws. Rotate the Riser Frame toward the back of the ErgoStat so that the back of the Riser Frame blades rest on the bottom top support screws.
  • Page 5 For All Height Adjustable Tables Front Bottom View 1. Lay Work Surface, top down, on a clean padded surface. Front Edge 2. Locate Drawer Bearer pre-drilled mounting holes which are as shown above. Part no. 1b3x59 rev E. © 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
  • Page 6 Drawer Bearer Open End Front Edge 3. With open end of Drawer Bearer facing Front Edge of work surface, attach Drawer Bearer using two (2) screws provided. 4. Repeat for remaining Drawer Bearers. Top Bracket Top Bracket Stretcher Part no. 1b3x59 rev E. ©...
  • Page 7 5. Align pre-drilled holes in underside of Work Surface with mounting holes in Stretcher and Top Brackets, and secure Work Surface to base with Screws provided, using Power Drill and Phillips Bit. NOTE: WORK SURFACE INSTALLATION IS SHOWN FOR WORK STATION. WORK SURFACES FOR WORK TABLE AND PROCESS TABLE INSTALL IN LIKE MANNER.
  • Page 8 NOTE : CONTROL BOX FOR C4310. WORK STATION MOUNTS OUTBOARD OF TOP BRACKET. POWER CORD WILL RUN BEHIND STRETCHER AND OUTBOARD OF TOP BRACKET TO CONTROL BOX. CONTROL BOXES FOR C4312. WORK TABLE & C4313. PROCESS TABLE MOUNT INBOARD OF TOP BRACKET. POWER CORDS WILL RUN IN FRONT OF STRETCHER AND INBOARD OF TOP BRACKET TO CONTROL BOX.
  • Page 9 For Manual Adjustable Height Tables. Locking Caster Figure 1b: Caster Base Leveling Glide Figure - 1a Pull pin (1204242-01) -18x screw 5/16 3/4” (94071305) Figure - 2 Part no. 1b3x59 rev E. © 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
  • Page 10 1. Place base in desired location. For glide bases, level the base by adjusting the four glides on the bottom of the feet (Figure 1a). For caster bases, apply the caster locks (Figure1b) when base is in use. 2. To adjust height, remove the 5/16-18x3/4” socket flathead screw using a 3/16” Allen wrench (Fig.
