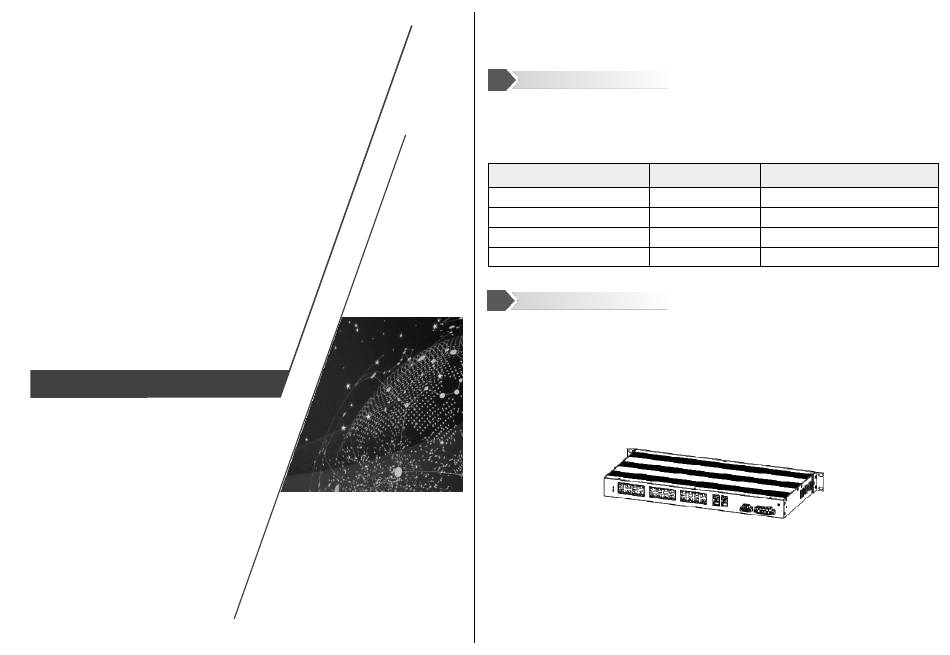

Industrial Ethernet Switch
User manual
MISCOM7028GP-4GF-24GTPOE
1
Packing list
The package of this switch contains the following items. If any item is found
to be missing or damaged, please contact the agent or the customer service
center of Maisvchfor assistant.
Items
Industrial Ethernet Switch
Power cord
User manual
Console cable
Product description
2
This series of products is a 28-port Layer 2 Gigabit managed PoE
rack-mounted industrial Ethernet switch, supporting 4 Gigabit optical ports
and 24 Gigabit PoE cooper ports. PoE complies with IEEE802.3af/at
standards and supports different power supply options such as DC48~57V or
AC120~264V/DC130-370V.
MISCOM7028GP-4GF-24GTPoE
Unit:mm
Quantity
Remarks
1PCS
1PCS
2*cables for 2AD220 model
1PCS
1PCS
Advertisement
Related Manuals for Maisvch MISCOM7028GP-4GF-24GTPOE Series
Summary of Contents for Maisvch MISCOM7028GP-4GF-24GTPOE Series
- Page 1 Packing list The package of this switch contains the following items. If any item is found to be missing or damaged, please contact the agent or the customer service center of Maisvchfor assistant. Items Quantity Remarks Industrial Ethernet Switch 1PCS Power cord 1PCS 2*cables for 2AD220 model...
- Page 2 Interface description Number AC Pin definition DC Pin definition Power 1 input V1+/positive Power 1 input L1/live wire Power 1 input V1-/negative Power 1 input N1/neutral line Protective ground (ground) Protective ground (ground) 1. Indicator lights 6. Relay alarm output terminal [Connect to the relay] This series of switches supports the relay alarm function, and the wiring 2.
- Page 3 The switch indicator lights description is shown in the table below: Indicator Status Definition lights System Status LED The power is connected and operating normally PWR1/PWR2 The power is not connected or the system is not operating normally Number Pin definition Flashing The system is operating normally On/Off...
- Page 4 Please make sure that the input voltage is within the input voltage range No valid network connection is established on marked on the switch. the port The transmission distance has a certain relationship with the connected wire. It is recommended to use a standard Cat5e/6 network cable. The equipment must be grounded for lightning protection, otherwise the ...
-
Page 5: Specifications
[Device connection] Log in WEB Page Step 1 Connect one end of the ground wire to a suitable position, and fix the ground plate on the switch panel with washers and screws. Step 2 Connect the power cord to the switch's power terminals. The device supports WEB management and configuration. - Page 6 The accessories and power supply that come with the product are guaranteed for one year. When sending the product back to Maisvch for repair, it is recommended that the customer use the original packaging or the packaging with the...
- Page 7 The product after-sales service is detailed in the purchase and sale service in time. contract, and Maisvch has the final interpretation right of this description. Copyright 2021 Maisvch Technology All rights reserved. The right to interpret the information published in this material belongs to Wuhan Maisvch Technology Co., Ltd.
