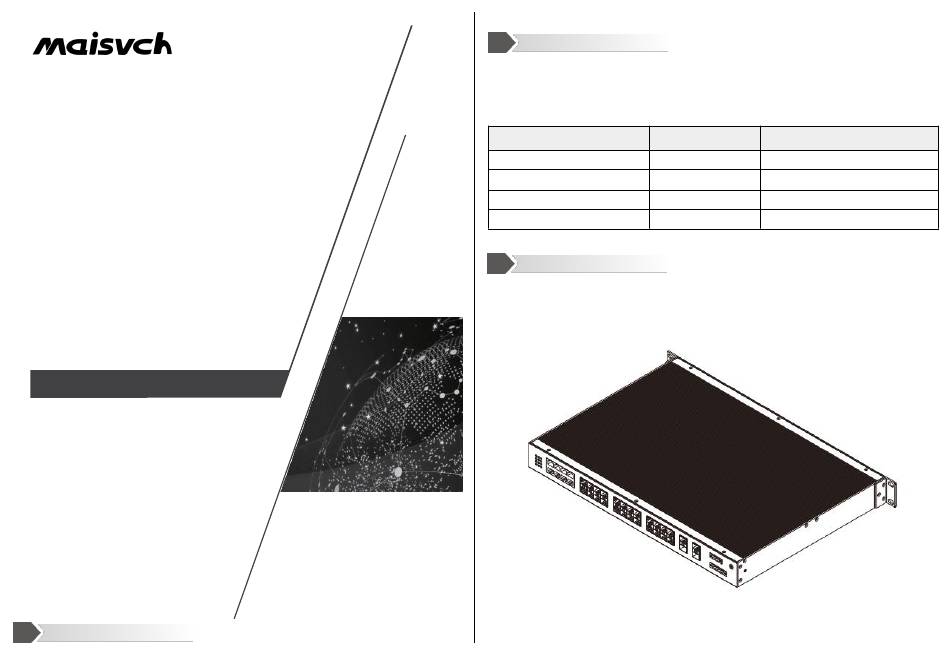

Industrial Ethernet Switch
User manual
MISCOM8036GX-4XGF-24GF-8GT
Interface description
3
Packing list
1
The package of this switch contains the following items. If any item is found
to be missing or damaged, please contact the agent or the customer service
center of Maisvch for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Console cable
2
Product description

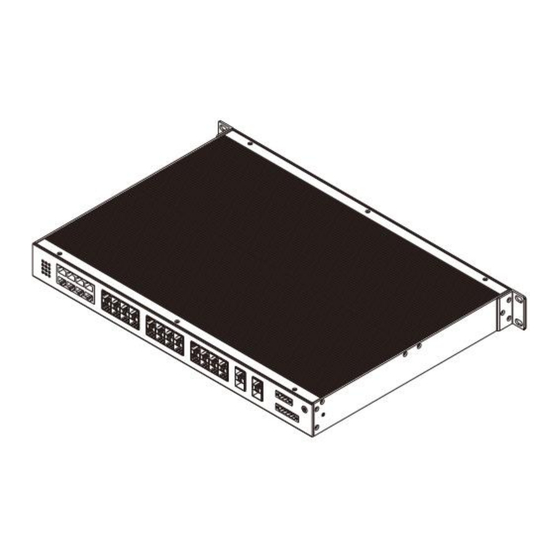

This type of switch is a layer 3 10-gigabit rack-mounted industrial Ethernet
switch, MISCOM8036GX-4xGF-24GF-8GT provides 36 ports (4 10-gigabit
fiber ports, 24 gigabit fiber ports, and 8 gigabit copper ports).
Quantity
Remarks
1PC
1PC
AD220 model only
1PC
1PC
Advertisement
Related Manuals for Maisvch MISCOM8036GX-4XGF-24GF-8GT
Summary of Contents for Maisvch MISCOM8036GX-4XGF-24GF-8GT
- Page 1 Console cable Product description Industrial Ethernet Switch This type of switch is a layer 3 10-gigabit rack-mounted industrial Ethernet switch, MISCOM8036GX-4xGF-24GF-8GT provides 36 ports (4 10-gigabit User manual fiber ports, 24 gigabit fiber ports, and 8 gigabit copper ports). MISCOM8036GX-4XGF-24GF-8GT...
- Page 2 Power 1 Input V1+/Positive(DC) Power 1 Input V1- /Negative (DC) Grounded Power 2 Input V2+/Positive(DC) Power 2 Input V2-/Negative (DC) [Connect to the relay] This series of switches supports the relay alarm function, and the wiring terminals use 3-position 5.08mm pitch terminals. This relay is a normally open and a normally closed relay, the middle one is the common terminal, the 1.
- Page 3 cable of our company to connect to the serial port of the PC. The interface No valid network connection is established on communication standard is 3-wire RS232. the port The communication parameters of the serial port are as follows: Rear panel Baud rate: 115200, data bit: 8, parity bit: None, Stop bit: 1, flow control: None.
- Page 4 To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch. Please make sure that the input voltage is within the input voltage range ...
-
Page 5: Specifications
Click the "OK" button to log in the WEB interface of the device. Storage Temp. -40℃~+85℃ 5%~95%(No condensation) Humidity Specifications Industry Standard MISCOM8036GX-4XGF-24GF-8GT IEC61000-4-2(ESD), Level 4 Switch properties IEC61000-4-5(Surge), Level 4 Bandwidth 144Gbps ※Ethernet ports support 6KV lightning protection... - Page 6 The accessories and power supply that come with the product are guaranteed for one year. When sending the product back to Maisvch for repair, we recommend using the original packaging or equivalent protective packaging to avoid risks during transportation.
