Industrial Ethernet Switch
User manual
MIEN1203-F
MIEN2204-2F
MIEN2205
MIEN2205-F
Packing list
1
The package of this switch contains the following items. If any item is found to be
missing or damaged, please contact the agent or the customer service center of
Maisvch for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
2
Product description

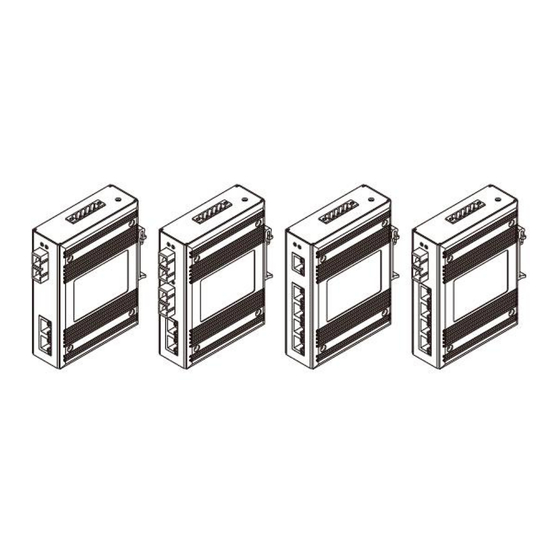

This series switches are unmanaged din-rail industrial Ethernet switch.
MIEN1203-F supports 3 100M Ethernet ports (1*100M fiber port and 2*100M copper
ports); MIEN2205 supports 100M Ethernet ports (5*100M copper ports);
MIEN2205-F supports 5 100M Ethernet ports (1 100M fiber port and 4 100M copper
port).
Version:V2.2
Quantity
Remarks
1PCS
AD220 model only
1PCS
1PCS
Advertisement
Related Manuals for Maisvch MIEN1203-F
Summary of Contents for Maisvch MIEN1203-F
- Page 1 Product description Industrial Ethernet Switch This series switches are unmanaged din-rail industrial Ethernet switch. MIEN1203-F supports 3 100M Ethernet ports (1*100M fiber port and 2*100M copper User manual ports); MIEN2205 supports 100M Ethernet ports (5*100M copper ports); MIEN2205-F supports 5 100M Ethernet ports (1 100M fiber port and 4 100M copper port).
- Page 2 Connect to the power Interface description Using 5-position locking terminals with 5.08mm spacing.The DC power supply supports dual power input with range from DC9-60V, which also support non-polarity Take MIEN2205-F as an example input.the wiring definitions are as follows: Number Pin definition AC model pin definition Power 1 Input V1+/Positive...
-
Page 3: Hardware Installation
Hardware installation Network cables connection Connect the optical fiber and network cable to the port in the correct Installation Precautions To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static ... -
Page 4: Specifications
Heat Aluminum alloy single-rib chassis surface scattered Specifications IP protection IP40 Weight about 0.64kg MIEN1203-F MIEN2204-2F MIEN2205 MIEN2205-F Working Environment Switch properties Working Bandwidth -40℃~+85℃ Temp. 748Kbit Cache size Storage -40℃~+85℃ MAC table size Temp. Port Humidity 5%~95%(No condensation) 2*100Base-F... -
Page 5: Order Guide
The accessories and power supply that come with the product are guaranteed for one year. When sending the product back to Maisvch for repair, we recommend using the original packaging or equivalent protective packaging to avoid risks during...
