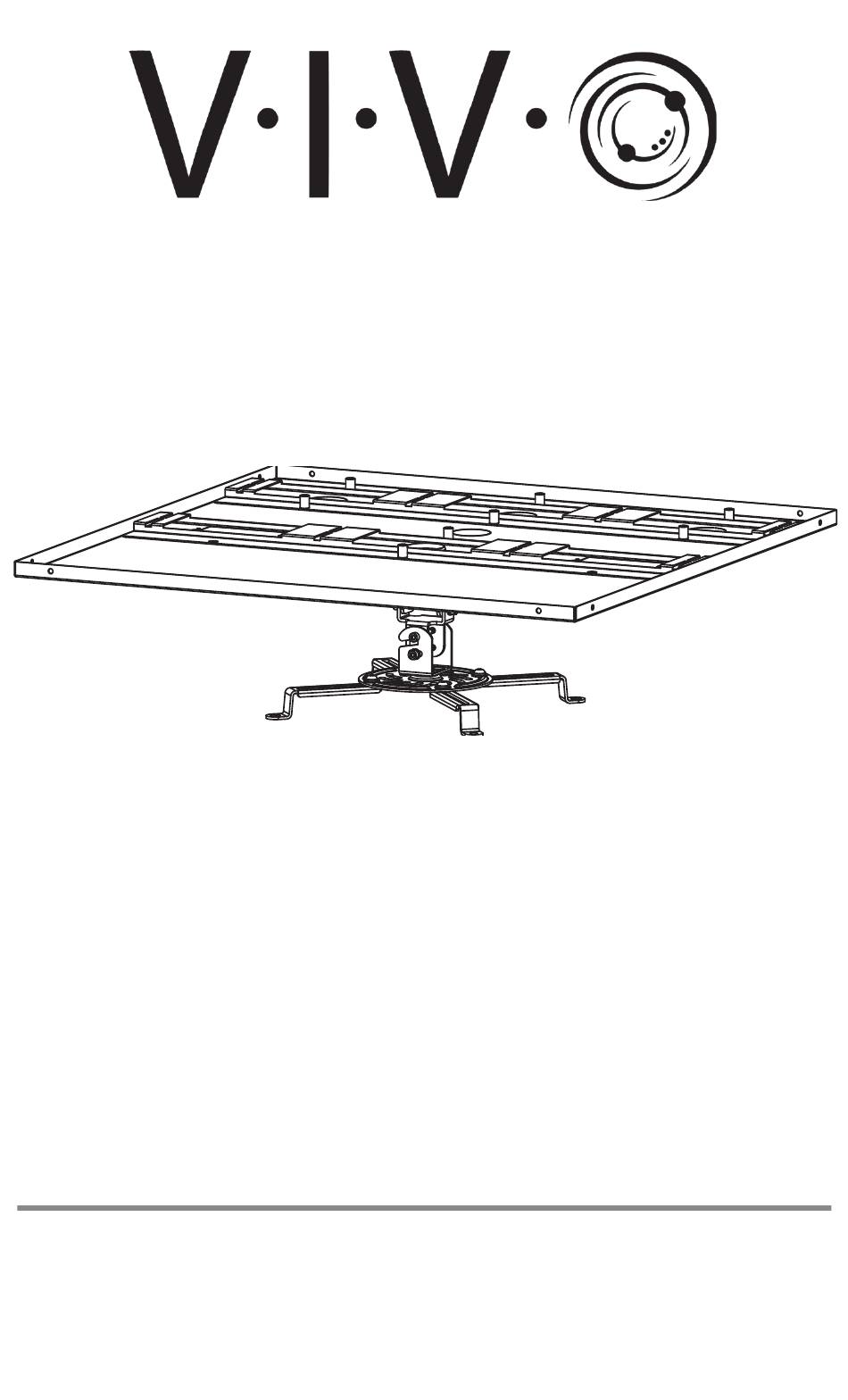

  • Page 1 Universal Drop Ceiling Projector Mount MOUNT-VP07DP Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.

  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) Mount Tilt Bracket Mounting Bracket D (x1) E (x2) F (x1) Ceiling Plate Clip Security Cable Included Hardware & Tools S-A (x2) S-B (x2) S-C (x6) S-D (x6) S-E (x6) S-F (x2) M6x18mm M6 Washer M5x12mm...

  • Page 4: Assembly Steps

    Assembly Steps *Optional* Direct Ceiling Installation Wood Joist Mounting: Proceed to Page 14 Concrete/Brick Mounting: Proceed to Page 15 STEP 1 Remove plastic plug from Ceiling Plate STEP 2 Insert the T Ends of Security Cable (F) through two of the slots on Ceiling Plate (D) as shown, spreading them apart so that the weight is distributed as much as possible.
  • Page 5 STEP 2 - Cont’d Place the Ceiling Plate (D) into the ceiling grid. Insert the end of Security Cable (F) through the small side hole on Cable Lock (F1) in the direction of the arrow. Wrap the Security Cable (F) around a beam or other support and feed it back through the center hole in Cable Lock (F1).
  • Page 6 STEP 3 Slide the Clips (E) over the T-Bar to hold down the Ceiling Plate (D). STEP 4 (B) to Mount (A) using Plastic Oval Washers (S-F), Plastic M5 Washers (S-E), Connect Tilt Bracket Small M5 Washers (S-D), M5x12mm Screws (S-C) and 4mm Allen Wrench (T-A).
  • Page 7 STEP 5 Option A: Above Ceiling Cable Management If cables are above the ceiling, route cables through the large opening in Ceiling Mount Option B: Below Ceiling Cable Management If cables are located below the ceiling, route the cables through the side of Ceiling Mount...
  • Page 8 STEP 6 (S-A) (S-B) Attach the Mount to the Ceiling Plate using M6x18mm Screws with M6 Washers (T-B) tighten using a 5mm Allen Wrench...
  • Page 9 STEP 7 Loosen the four screws on the Mounting Bracket (C) using 4mm Allen Wrench (T-A) and unfold the Arms (C1). 4 Hole Mounting Patterns For 3 Hole Patterns see Page 10 Align arms on Mounting Bracket (C) with mounting holes in projector and secure to projector using Screws (M-A through M-D) and Washers (M-E through M-H) most appropriate for your projector.
  • Page 10 3 Hole Mounting Patterns If you projector only has 3 mounting holes, use 4mm Allen Wrench (T-A) to remove one of the Arms (C1) from the Mounting Bracket (C). Align arms on Mounting Bracket (C) with mounting holes in projector and secure to projector using Screws (M-A through M-D) and Washers (M-E through M-H) most appropriate for your projector.
  • Page 11 STEP 8 Hook the projector onto the Tilt Bracket (B) on the outside of the Oval Washers. Oval Washer Secure using M5x12mm Screws (S-C) with M5 Plastic Washers (S-E) on the inside and M5 Washers (S-D) on the outside. Tighten using 4mm Allen Wrench (T-A).

  • Page 12: Tilt Adjustments

    STEP 9 Adjust angle and rotation of projector using 4mm Allen Wrench (T-A). Upper tilt joint is for pitched ceilings only. Tilt Adjustments Adjust tilt angle using one or both of these adjustments. Pitched Ceilings Only Use the upper tilt joint to adjust the base angle for a pitched or angled ceiling. Using the 4mm Allen Wrench (T-A), loosen the bolts, set the angle, then re-tighten.
  • Page 13 Adjust as Desired Assembly Complete...
  • Page 14 - Optional - Wood Joist Mounting Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/16” (4.5mm) Align holes in Ceiling Mount (A) with wood ceiling joist and mark drilling locations. Use of a stud Hole Depth: finder is recommended for finished ceilings. 2.2”...

  • Page 15: Concrete Mounting

    - Optional - Concrete Mounting Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/8” (10mm) Hole Depth: Mark drilling locations in ceiling using a pencil. 2.4” (60mm) Press Concrete Anchors (W-B) into drilled holes, and secure Ceiling Mount (A) to ceiling using ST6.3x55mm Screws (W-A) and M6 Mounting Washers (W-C).
  • Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
