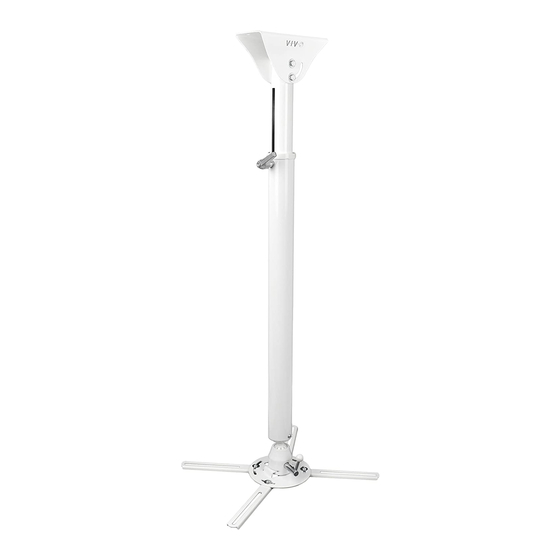

White projector ceiling mount

Advertisement

Quick Links

White Projector Ceiling Mount
Instruction Manual
SKU: MOUNT-VP05W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vp05w
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-VP05W and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-VP05W

  • Page 1 White Projector Ceiling Mount Instruction Manual SKU: MOUNT-VP05W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vp05w help@vivo-us.com www.vivo-us.com 309-278-5303...
  • Page 2 Drill Screwdriver CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete. If unsure, please contact us at vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303.
  • Page 3 ASSEMBLY STEPS STEP 1 Attach arms (C) to plate (B) using (M-G) bolts and (M-F) washers. Align arms to mounting holes in projector and tighten using (M-I) Allen key. STEP 2 Mount projector to assembly using appropriate bolts and washers. Use (M-H) spacers if needed. M-A/M- B M-C/M- D M-E/M- F...
  • Page 4 STEP 3 Route cables through pole (A). STEP 4 OPTION A: Drywall/Wood Stud Installation Use top plate of pole (A) to mark hole placement. Using 3/16” bit, drill 2.2” into ceiling stud. Mount pole (A) to ceiling using (W-A) screws and (W-C) washers. *Use of a stud finder is recommended.
  • Page 5 STEP 4 (Continued) OPTION B: Concrete/Brick Wall Installation For concrete ceiling installation use a pencil to mark drilling locations, and drill 2-3/8” deep holes using a 3/8” bit. Mount part (A) to ceiling using (W-A) screws, (W-B) anchors, and (W-C) washers. STEP 5 Remove small bolt from bottom of pole (A).
  • Page 6 STEP 6 Adjust height and tilt angle of pole (A) using Allen key (M-I). 90 ° 0°...
  • Page 7 STEP 7 Tilt and rotate projector for best image projection. 360 ° -20° 20° -20° 20°...
  • Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
