Summary of Contents for EK EC7

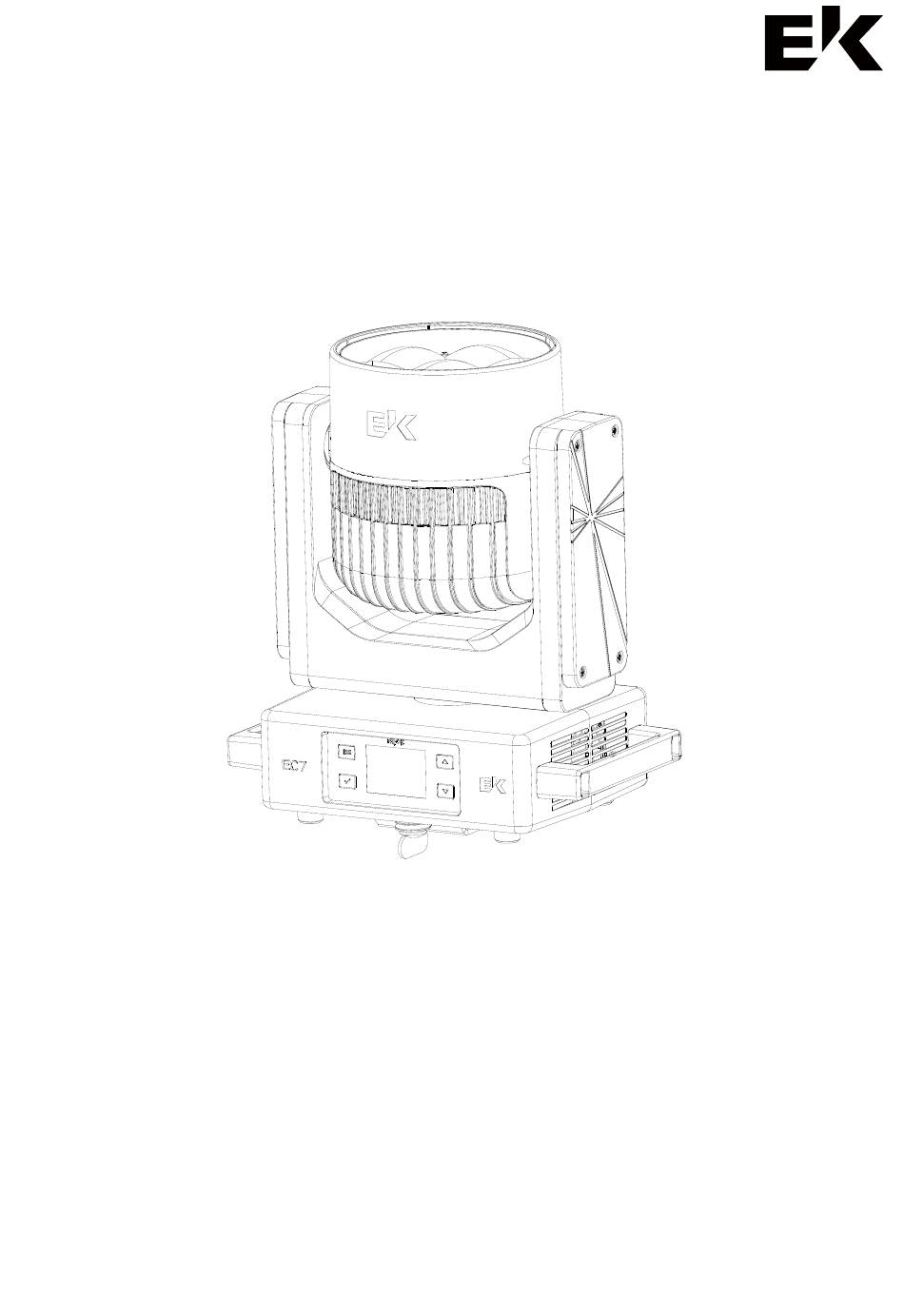

- Page 1 EC� ＵＳＥＲ ＭＡＮＵＡＬ...
-
Page 2: Table Of Contents
CONTENTS �� Safety Informa on �� Dimension �� Control �� Fixture Specifica ons �� Technical datasheet �� Photometric Diagram �� Fixture Se ing �� Menu func on �� Installa on and Connec on �� Installa on & Notes �� Power Connec on ��... -
Page 3: Safety Informa On
1.Safety Informa on WARNING!Before carrying out any operations with the unit,carefully read this instruction manual and keep it with care for future reference,It contains important information about the installation,user and maintenance of the unit. WARNING General instruc on - The products referred to in this manual conform to the European Community Directives and are therefore marked with CE. -
Page 4: Dimension
2.Dimension... -
Page 5: Control
3.Control 2 3 4 5 6 7 8 1.Control Pannel 5.5pin(or 3pin) DMX In 2.Fuse 6.5pin(or 3pin) DMX Out 3.Power In 7/8.Artnet 4.Power Out 9.Omega bracket with clamp Menu Display Function Description Illustration Function Menu Option MODE（Left） Menu Operation Enter Menu Increase Numberic Value Scroll Up DOWN... -
Page 6: Fixture Specifica Ons
4.Fixture Specifica on 4.1 Technical datasheet EK-EC7 PHOTOMETRICS Light Source 7*50W RGBWW LED Color Temperature 2800K -10000K Output Up to 7400 lumen >93 LED Life 30000H KEY FEATURES ° ° TILT Color System RGBWW Zoom Beam angle 3.8°-33.8°，Field angle 5.5°-51.2°... - Page 7 4.1 Technical datasheet Power Factor 230V@0.97 Ambient -10～45℃ PHYSICAL Dimension 323*207*381mm Weight 9.7Kg IP Rating IP20 Cooling Aluminum alloy heat sink with low noise fan Housing Black flame-retardant nylon with fiber reinforcement,spray-painted Installation Sit-flat floor mounting, side hanging and flown mounting CONTROL Protocol DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC...
-
Page 8: Photometric Diagram
4.2 Photometric Diagram Beam angle： 3.8° Distance(M) llluminance(lux) 42000 10500 4667 2625 1680 Beam angle：33.8° Distance(M) llluminance(lux) -
Page 9: Fixture Se Ing
5 Fixture Se ing 5.1 Menu Func on EK-EC7 Main Menu Menu level 2 Menu level 3 Menu level4 Remark Basic Default: Mode Standard Standard Advanced Basic Engine Source Art-Net Default:DMX sACN Universe 000-255 Default: 0 DMX Address 1-512 Default: 1... - Page 10 Default: No (Up+Down+U Key Lock p+Down+Ent Auto Fan Mode Default: Auto Theatre Constant Default: STD STD Power Power Mode Power ECO Power Reverse Mapping Default: Off Zoom Reposition Default: On Dimmer Curve 1 Default: Dimmer Curve 2 Dimmer Curve Dimmer Dimmer Curve 3 Curve 1 Dimmer Curve 4...
- Page 11 DISP:V1.0 NET:V1.0 System Version CTR1-XY:V1.0 CTR2-MOTOR:V1.0 DMX Monitor INFORMATION Fans Monitor Led Fan 100% IP Address 2.198.159.207 Network parameters IP Mask 255.0.0.0 54-10-EC-5B-B2- MAC Address 4350******** Reset MANUAL CONTROL Channel Tilt Colour TEST Zoom Are you sure ? Upload Firmware Yes / No Pan Offset 000-255...
- Page 12 3. Make sure that the device is not exposed to extreme heat, moisture or dust. 4. Make sure that the structure to which you are hanging the modules can support the weight. EC7 may be set up on a solid and even surface. The unit can also be mounted upside down to a cross arm. For fixing, stable mounting clips are required.
-
Page 13: Power Connec On
WARNING Do not use the power cable if the insulation layer has been damaged, Do not put the power cable on other wires. When the EC7 is not in use or clean, please remove the power cable. Do not vigorously plug in or drag the power cable. -
Page 14: Data Connec On
6.3 Data Connec on Artnet connection next fixtures DMX CONNECTION DMX512 控台 next fixtures... - Page 15 DMX Connection COMMON DMX十 DMX一 DMX INPUT DMX OUTPUT Not Used Not Used 120Ω 1/4 W resistor COMMON DMX十 DMX INPUT DMX OUTPUT DMX一 EXAMPLE OF DMX ADDRESSING The below table shows an example of starting addresses for four fixtures assuming a first fixture with starting address of 001.
-
Page 16: Dmx Chart
6.4.1 DMX Chart Basic 000-255 PAN Fine 000-255 TILT 000-255 TILT Fine 000-255 ZOOM 000-255 From narrow to wide beam 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz) 104-107 Light ON 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) Strobe 208-212 Light ON... - Page 17 6.4.2 DMX Chart 068-072 Raw color channels gamma 2.2 (Default) 073-074 Color Calibration Off (Default) 075-076 Color Calibration Factory 077-078 Color Calibration Customized 079-080 Set customized calibration at full white 081-082 Set customized calibration at 3200K 083-084 Set customized calibration at 5600K 085-086 Record customized calibration 087-088...
- Page 18 LAYERS Standard Advanced 000-255 PAN Fine 000-255 TILT 000-255 TILT Fine 000-255 ZOOM 000-255 From narrow to wide beam 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz) 104-107 Light ON 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) Strobe 208-212 Light ON...
- Page 19 087-088 None 089-090 Reverse Mapping Off (Default) 091-092 Reverse Mapping On 093-097 Pixel Map Disabled(Default) 098-102 Pixel Map On RGB Mode 103-107 Pixel Map On RGBW Mode 108-112 Zoom Reposition On(Default) 113-117 Zoom Reposition Off 118-167 FREE HOLD 3S FUNCTION 168-188 PWM frequency=600Hz and Save...
- Page 20 000-255 Green 000-255 Blue 000-255 White 000-255 000-009 010-255 CTO 10000K~2800K 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz) 104-107 Light ON 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) Strobe 208-212 Light ON(Layer2 Slave) 213-225 Random Slow Strobe 226-238...
- Page 21 000-003 Light OFF 004-103 Strobe from low (1Hz) to fast (25Hz) 104-107 Light ON 108-207 Pulsation from slow (0.5 Hz) to fast (25 Hz) Strobe 208-212 Light ON(Layer3 Slave) PIXELS 213-225 Random Slow Strobe 226-238 Random Medium Strobe 239-251 Random Fast Strobe 252-255 Light ON(Layer3 Master) Dimmer...
-
Page 22: Error Informa On
7 Error Informa on Make sure the area below the installation place is free from unwanted persons during setup. Switch off the unit, unplug the main cable and wait until the unit has cooled down. All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded. - Page 23 E K I N C . Address: NO.55 Zhongzhun Road, Cuiheng New District, Zhongshan City, Guangdong Province Phone: 0086 (0760) 88280099 www.eklights.com...
