EK ShowPro LEDPRO132 User Manual

Led profile spot - variable white
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LED PROFILE SPOT - VARIABLE WHITE
LEDPRO132

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ShowPro LEDPRO132 and is the answer not in the manual?

Questions and answers

Related Manuals for EK ShowPro LEDPRO132

Summary of Contents for EK ShowPro LEDPRO132

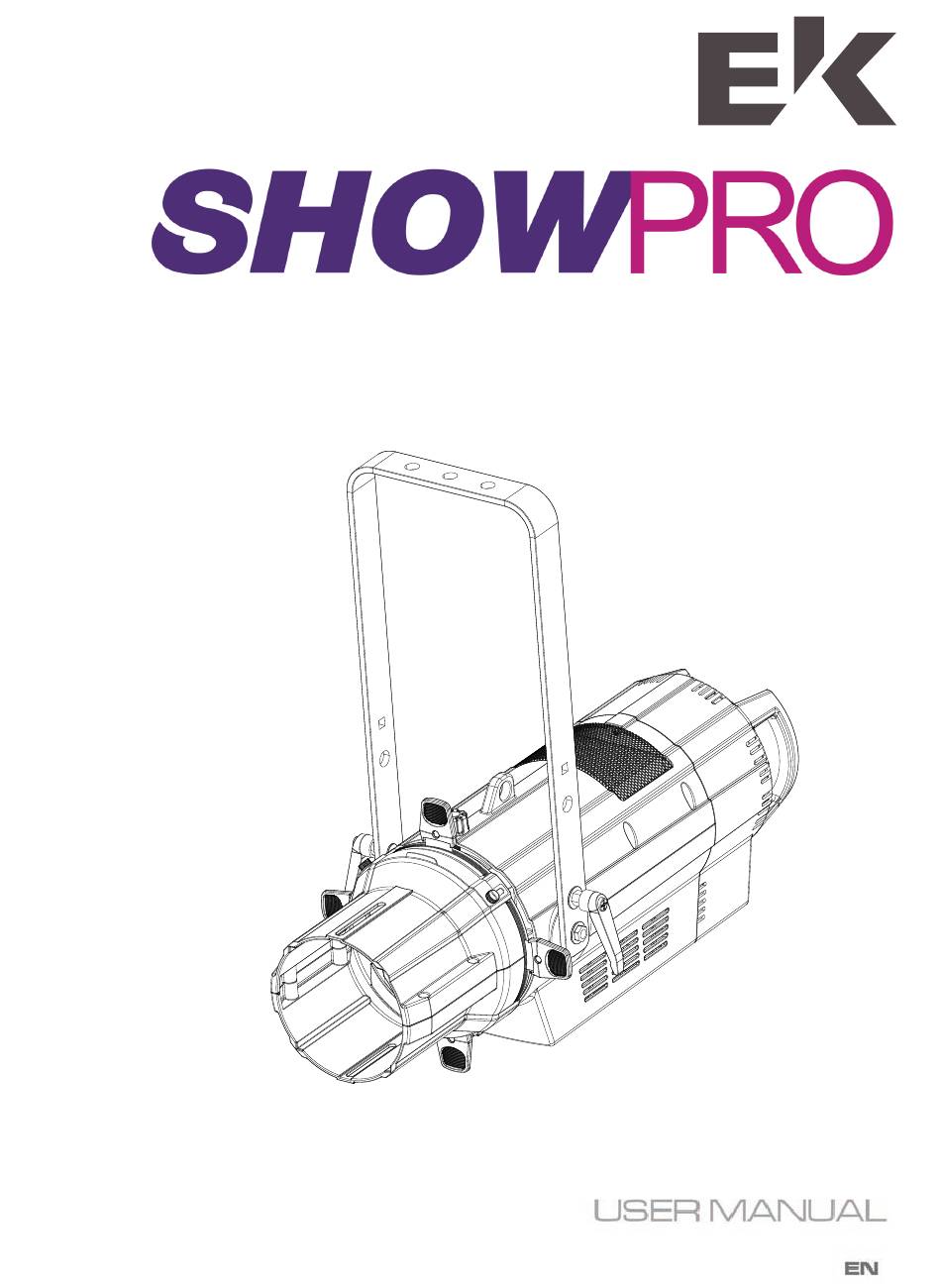

  • Page 1 LED PROFILE SPOT - VARIABLE WHITE LEDPRO132...

  • Page 2: Warnings And Installation Precautions

    WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with .

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety General instructions Warnings and installation precautions General information Introduction Features Speci cations Maintenance Cleaning the unit Fuse replacement Trouble shooting Overview Dimensions Operation Display menu functions DMX functions DMX pin diagram Menu Function Chart DMX Function Chart Photometrics Packing content EPROFILE VW...

  • Page 4: Introduction

    INTRODUCTION The EPROFILE VW is a variable white LED pro le. FEATURES - 250W LED with exquisite color rendering (up to CRI 92) - Innovative six-color mixable LED light source - Variable white color temp presets from 2800K ~ 8000K - Adjustable +/- green hue ne tuning - Independent control of discrete source colors (red, orange, green, royal blue, blue, lime) - Higher output than traditional 750W ellipsoidal re ector spotlights...

  • Page 5: Maintenance Cleaning The Unit

    MAINTENANCE MAINTENANCE AND CLEANING THE UNIT • Make sure the area below the installation place is free from unwanted persons during setup. • All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded.

  • Page 6: Overview

    OVERVIEW Gobo Barrel holder Focus rotation slot knob Handle knob Accessory Lens tube holder (sold separately) slot Framing shutter (x 4) Menu display Menu navigation buttons Bracket tightening knob PowerCon In & Out DMX In & Out Mounting bracket...

  • Page 7: Dimensions

    DIMENSIONS 595.5 287.7...

  • Page 8: Operation

    OPERATION DISPLAY MENU FUNCTIONS - DMX Address: Assign DMX starting address to the EPROFILE VW - DMX Mode: Select either 3-. 5-, 6- or 8-, 11-, 15- or 17-channel mode - Color Temperature: Select from 36 di erent white temperatures (2800K ~ 8000K) - Hue Adjust -25% / +25 % submenu - Manual Color Mixer: Manually set ROGBBL values to create custom colors - Master/Slave: Set the EPROFILE VW to function either as a master or slave when linking multiple units...

  • Page 9: Menu Functions

    MENU FUNCTIONS Menu level 3 Main Menu Menu level 2 Menu level4 Remark DMX Address <001> Default 001 DMX Channel Default 11Ch 11Ch 15Ch 17Ch 2800K Dimmer<0-100> 2900K Hue<-25~25> 3000K 3100K 3200K …… …… 5300K Color 5400K Default 2800K Temperature 5500K 5600K Static...
  • Page 10 MENU FUNCTIONS (cont’d) Default O <125-255> Orange <125-255> White Balance Green <125-255> Manual ALL=255 Royal Blue <125-255> Blue <125-255> Lime <125-255> 600Hz 1200 Hz 2000 Hz LED Frequency Default 1200Hz 4000 Hz 6000 Hz 25KHz Auto Fan Mode Default Auto Back Light Default On 9999H...
  • Page 11 DMX CHARTS Function Value Percent/Setting Dimmer 000-255 0~100% 000-005 2800 006-013 2800K - 2900K 013-020 2900K - 3000K 020-027 3000K - 3100K 027-034 3100K - 3200K 034-041 3200K - 3300K 041-048 3300K - 3400K 048-055 3400K - 3500K 055-062 3500K - 3600K 062-069 3600K - 3700K 069-076...
  • Page 12 DMX CHARTS • Function Value Percent/Setting • Dimmer 000-255 0~100% Dimmer Fine 000-255 0~100% Color Refer to 3CH CHART Temperature • 000-000 001-255 -25~25 000-010 No Function Strobe 011-255 Strobe slow to fast Function Value Percent/Setting 000-255 0~100% Orange 000-255 0~100% Green 000-255...
  • Page 13 DMX CHARTS 11CH Function Value Percent/Setting Dimmer 000-255 0~100% 000-255 0~100% Orange 000-255 0~100% Green 000-255 0~100% Royal Blue 000-255 0~100% Blue 000-255 0~100% Lime 000-255 0~100% 000-010 No Function Strobe 011-255 Strobe slow to fast Color Refer to 3CH CHART Temperature 000-000 001-255...
  • Page 14 DMX CHARTS 17CH Function Value Percent/Setting Dimmer 000-255 0~100% Dimmer Fine 000-255 0~100% 000-255 0~100% Red Fine 000-255 0~100% Orange 000-255 0~100% Orange Fine 000-255 0~100% Green 000-255 0~100% Green Fine 000-255 0~100% Royal Blue 000-255 0~100% Royal Blue Fine 000-255 0~100% Blue...
  • Page 15 PHOTOMETRICS Beam Angle: 26° Full Distance (m) Luminance (lux) 42390 4710 1695 meters colors 1998 8514 4806 1791 30960 3440 1238 42390 4710 1695...
