Summary of Contents for EK SHOWPRO COLLIDER FC

  • Page 1 ＵＳＥＲ　ＭＡＮＵＡＬ...

  • Page 2: Table Of Contents

    www.eklights.com CONTENTS SAFETY DIMENSIONS DESCRIPTION INTRODUCTION POWER CONNECTION ETHERNET CONNECTION DMX CONNECTION TECHNICAL SPECIFICATION PHOTOMETRICS MENU MENU DESCRIPTION DMX CHANNELS TROUBLE SHOOTING...

  • Page 4: Dimensions

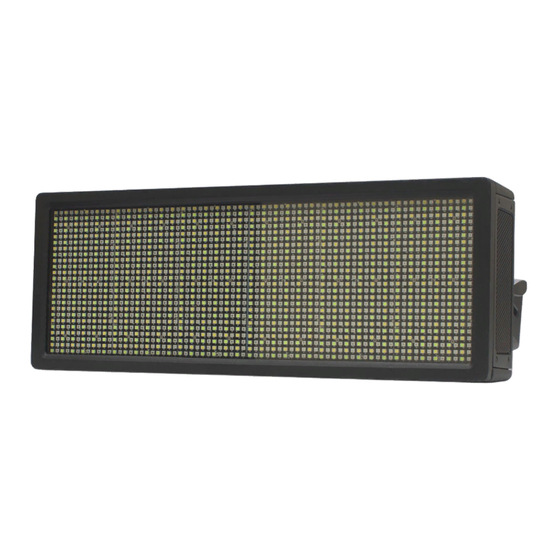

    www.eklights.com DIMENSIONS DESCRIPTION The most powerful RGBW pixel-mappable LED strobe on the planet. Harness the stunning kinetic energy of accelerated particles of pure blinding two-layer colors. Onboard macros enable quick programming of IP65-rated tour-grade construction. DMX and Artnet control.

  • Page 5: Introduction

    INTRODUCTION 48 individually controllable segments for dynamic e ects 1 2 3 4 6 7 8 1. HANGING BRACKET KNOB 2. DMX IN 3. ART-NET IN 4. POWER IN 5. DISPLAY 6. POWER OUT 7. ART-NET OUT 8. DMX OUT Display Function Navigation EFFECT DESCRRIPTION...

  • Page 6: Power Connection

    www.eklights.com POWER CONNECTION Power In Power out Warning ETHERNET CONNECTION Ethernet Switch Network Cable Network Cable...

  • Page 7: Dmx Connection

    DMX CONNECTION DMX512 Controller Subsequent DMX512 CONTROLLER COMMON DMX一 DMX INPUT DMX OUTPUT DMX十 Relation between DMX and Address DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS MODE ALLOCATION 1ST FIXTURE 2ND FIXTURE 3RD FIXTURE 4TH FIXTURE 001-004 002 - 007 001 - 014 14CH 001 - 192...

  • Page 8: Technical Specification

    www.eklights.com TECHNICAL SPECIFICATION PHOTOMETRICS Light Source: 1728 x 1W RGBW LED Beam Angle: 98° F ield Angle: 156° Output: 1281LUX @ 5 meters POWER Mains: 100 - 240 VAC, 50/60 Hz Consumption: 1500W/230V (FULL ON) Power connections: PowerCon In/Out Power linking: Up to 2 units @ 230V KEY FEATURES Color Mixing:...

  • Page 9: Menu

    MENU Menu(-) Main Menu Menu level 2 Menu level 3 Menu level ... Remark DMX Address 1-512 Default: 1 STATIC Default: R=0~255 Manual Colour Select BASIC G=0~255 RGBW STROBE STROBE BASIC B=0~255 W=0~255 PIXELS RGBW STROBE Default: DMX Mode 48PX PIXELS 12PX 48PX...
  • Page 10 www.eklights.com MENU Background …… Black …… Show 16 Show 17 Show 18 Show 19 Foreground Show 20 Show 21 Show 22 Show 23 Sequence RGBW Black STAND ALONE Background RGBW Fixed Color Default: RGBW Static RGBW <000-255> Green <000-255> Default: Manual Color RGBW=255 Blue...
  • Page 11 1.CONNECT （1）DMX Address Setting 1. 3/4-1/4-2/6/7/8/14/144/192/202 setting the DMX address according to below range. 3CH Mode：1-510 4CH Mode：1-509 6CH Mode：1-507 7CH Mode：1-506 8CH Mode：1-505 14CH Mode：1-499 144CH Mode：1-369 192CH Mode：1-321 202CH Mode：1-311 (2) 192/202CH are more suitable for Ethernet control.

  • Page 12: Menu Description

    www.eklights.com MENU DESCRIPTION 2.SETUP (1)Screen： 1.Back Light：Set delay time for menu display to go dark at either 10, 20 or 30 seconds or choose always on 2.Flip Display 3.Key Lock：password: UP-DOWN-UP-DOWN-ENTER (2)Fixture (3)white balance (4)dimmer mode: 4 dimming curve modes (5)Fan Mode (6)Temperature (3).Ethernet...

  • Page 13: Dmx Channels

    DMX CHANNELS BASIC - STATIC Channel Function Value Percent/Setting Remark 000-255 Red intensity Green 000-255 Green intensity Blue 000-255 Blue intensity White 000-255 White intensity BASIC - STROBE (Color can be choosen by menu) Channel Function Value Percent/Setting Remark 000-005 Blackout DIMMER 006-255...
  • Page 14 www.eklights.com DMX CHANNELS 043-085 Ramp down 086-128 Ramp up-down 129-171 Random 172-214 Lightning 215-255 Spikes...
  • Page 15 DMX CHANNELS PIXELS - PIXELS Art-net+DMX PIXEL Function Value Percent/Setting Remark MODE Artnet Artnet Blackout 000-005 DIMMER Minimum to maximum 006-255 FLASH DURATION 000-255 15ms-990ms Single flash No Flash 000-010 with ch 1 FLASH RATE Strobe slow to fast 011-255 No Effect 000-002 If selected, the...
  • Page 16 www.eklights.com PIXEL LAYOUT...
  • Page 17 BASIC - STATIC Channel Function Value Percent/Setting Remark 000-255 Red intensity Green 000-255 Green intensity Blue 000-255 Blue intensity White 000-255 White intensity BASIC - STROBE (Color can be choosen by menu) Channel Function Value Percent/Setting Remark 000-005 Blackout DIMMER 006-255 Minimun to maximum FLASH DURATION...
  • Page 18 PIXELS - PIXELS PIXEL Art-net+DMX Function Value Percent/Setting Remark MODE Artnet Artnet Blackout 000-005 DIMMER Minimum to maximum 006-255 FLASH DURATION 000-255 15ms-990ms Single flash No Flash 000-010 with ch 1 FLASH RATE Strobe slow to fast 011-255 000-002 No Effect If selected, the fixture will Static...

  • Page 19: Trouble Shooting

    ADVANCED - ADVANCED 1 Percent/Setting Channel Function Value Remark FLASH 000-255 Strobe dimmer DIMMER No output - Single flash No flash/Closed 000-030 with ch 1 Strobe slow to fast 031-100 FLASH Open 101-130 STROBE Random strobe slow to fast 131-200 Open 201-255 Red intensity...
  • Page 20 106-110 FX 20 FX 21 111-115 FX 22 116-120 FX 23 121-125 RESERVED(TBD) 126-205 From 1 to 10 pixel, 1 Random pixel(with density) 206-255 more pixel every 5 steps Static indexing 000-050 FX SPEED From slow to fast 051-255 From MENU 000-051 Mode OFF 052-101...
  • Page 21 021-025 FX 3 026-030 FX 4 031-035 FX 5 036-040 FX 6 041-045 FX 7 046-050 FX 8 051-055 FX 9 056-060 FX 10 061-065 FX 11 066-070 FX 12 071-075 FX 13 AUTO FX 076-080 FX 14 081-085 FX 15 086-090 FX 16 091-095...
  • Page 22 No output - Single 000-030 No flash/Closed - Same - flash with ch 1 031-100 Strobe slow to fast - Same - LAYER2 FLASH STROBE 101-130 Open - Same - STROBE Random strobe 131-200 - Same - slow to fast 201-255 Open - Same -...
  • Page 23 FX 14 076-080 FX 15 081-085 FX 16 086-090 FX 17 091-095 FX 18 096-100 FX 19 101-105 FX 20 106-110 FX 21 111-115 FX 22 116-120 121-125 FX 23 126-205 RESERVED(TBD) From 1 to 10 Random pixel(with density) 206-255 pixel, 1 more pixel every 5 steps Static indexing...
  • Page 24 FX 23 121-125 RESERVED(TBD) 126-205 From 1 to 10 Random pixel(with density) 206-255 pixel, 1 more pixel every 5 steps Static indexing 000-050 LAYER2 FX SPEED From slow to fast 051-255 Choose the step of Continuous start selection 000 -200 start Enables an internal...
  • Page 25 BG STROBE Open 101-130 Random strobe slow to fast 131-200 Open 201-255 Red intensity BG RED 000-255 Green intensity BG GREEN 000-255 Blue intensity BG BLUE 000-255 White intensity BG WHITE 000-255 LAYER1 Strobe Dimmer 000-255 DIMMER No output - Single No flash/Closed 000-030 flash with ch 13...
  • Page 26 Choose the step of Continuous start selection 000-200 start Enables an internal distribution of the LAYER1 FX OFFSET macro between a Random distribution 201-255 multitude of lights on a specific DMX line basing on their DMX starting address. LAYER2 FX No Function 000-010 (Colors and strobe are controlled by...
  • Page 27 EMPTY From MENU 000-051 Mode OFF 052-101 DIMMER MODE Mode 1 102-152 Mode 2 153-203 Mode 3 204-255...
