Summary of Contents for EK Nitec ShowPro Pharos

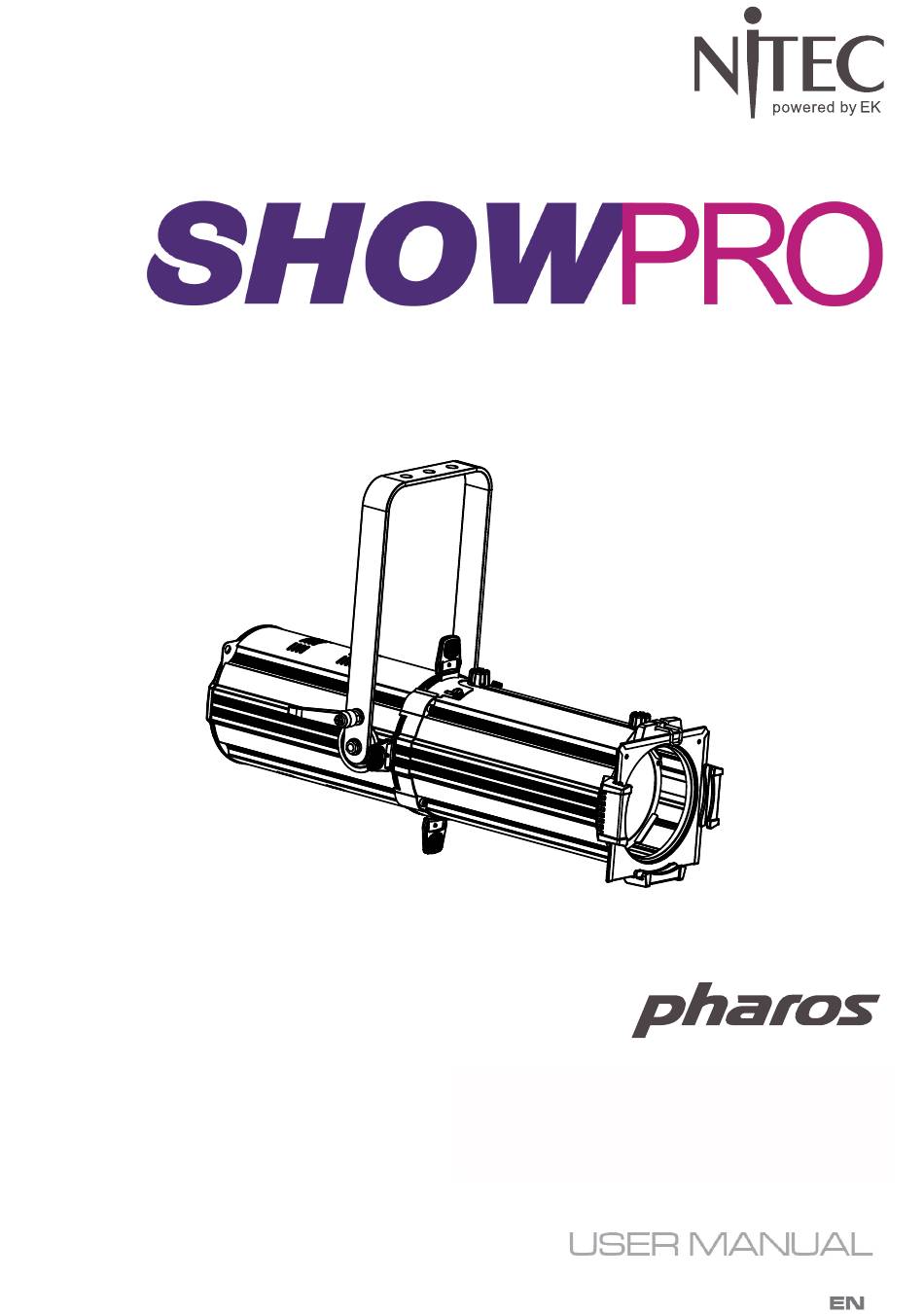

- Page 1 Compact LED profile with zoom...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY / GENERAL INSTRUCTIONS INTRODUCTION Features Speci cations OVERVIEW Rear view Top view DIMENSIONS CONTROL MENU OVERVIEW Control Panel Function Menu DMX FUNCTION CHART 3-channel mode 1-channel mode OPERATION MAINTENANCE PACKING CONTENT - PHAROS - Gel Frame - Framing Shutters - Gobo Holders - Power Cord... - Page 3 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with .
-
Page 4: Introduction
INTRODUCTION PHAROS is a compact LED pro le with zoom. FEATURES - Output comparable to 575W conventional pro les - 25° - 50° zoom for convenient versatility across many applications - Crisp gobo image projection, even at close range - Extremely at eld projection - Gel frame brackets and retaining clip included - Flicker-free output for worry-free video - Quiet operation suitable for studio use... -
Page 5: Overview
OVERVIEW Rear View Mounting Bracket Framing Shutter (x4) Safety Cable anchor Display Menu Buttons Power Out Gel Frame Fuse Holder and Power In In/Out Top View Gel Frame Holder Focus Knob Zoom Knob Gobo Holder Thumbscrew Bracket Tightening Knob... -
Page 6: Dimensions
DIMENSIONS... -
Page 7: Control Menu Overview
CONTROL MENU OVERVIEW CONTROL PANEL BUTTON FUNCTION Menu Selects operating mode or exits submenus Scrolls up through option lists or selects higher value Down Scrolls down through option lists or selects lower value Enter Activates displayed menu option or selected value FUNCTION MENU MODE OPTIONS / VALUES... -
Page 8: Dmx Function Chart
DMX FUNCTION CHART Channel Function Value Percent/Setting 3-CHANNEL MODE Dimmer 000 - 255 0–100% 000 - 010 No function Strobe 010 - 255 Strobe speed (slow to fast) 000 - 051 Dimmer Speed set from display 052 - 101 Dimmer speed mode o Dimmer Speed 102 - 152 Dimmer speed mode 1 fast... -
Page 9: Operation
OPERATION FRAMING SHUTTERS Use the (4) framing shutters to shape the projected beam ZOOM and FOCUS KNOBS Use the Zoom knob to adjust beam angle Use the Focus knob to adjust sharpness of projected patterns or beam edges CUSTOM GOBOS The gobo holder accepts M size (66mm outer/ 48mm inner) custom gobos GELS Color gels may be inserted in the gel frame, which ts into the gel frame holder... - Page 10 T2A-...
