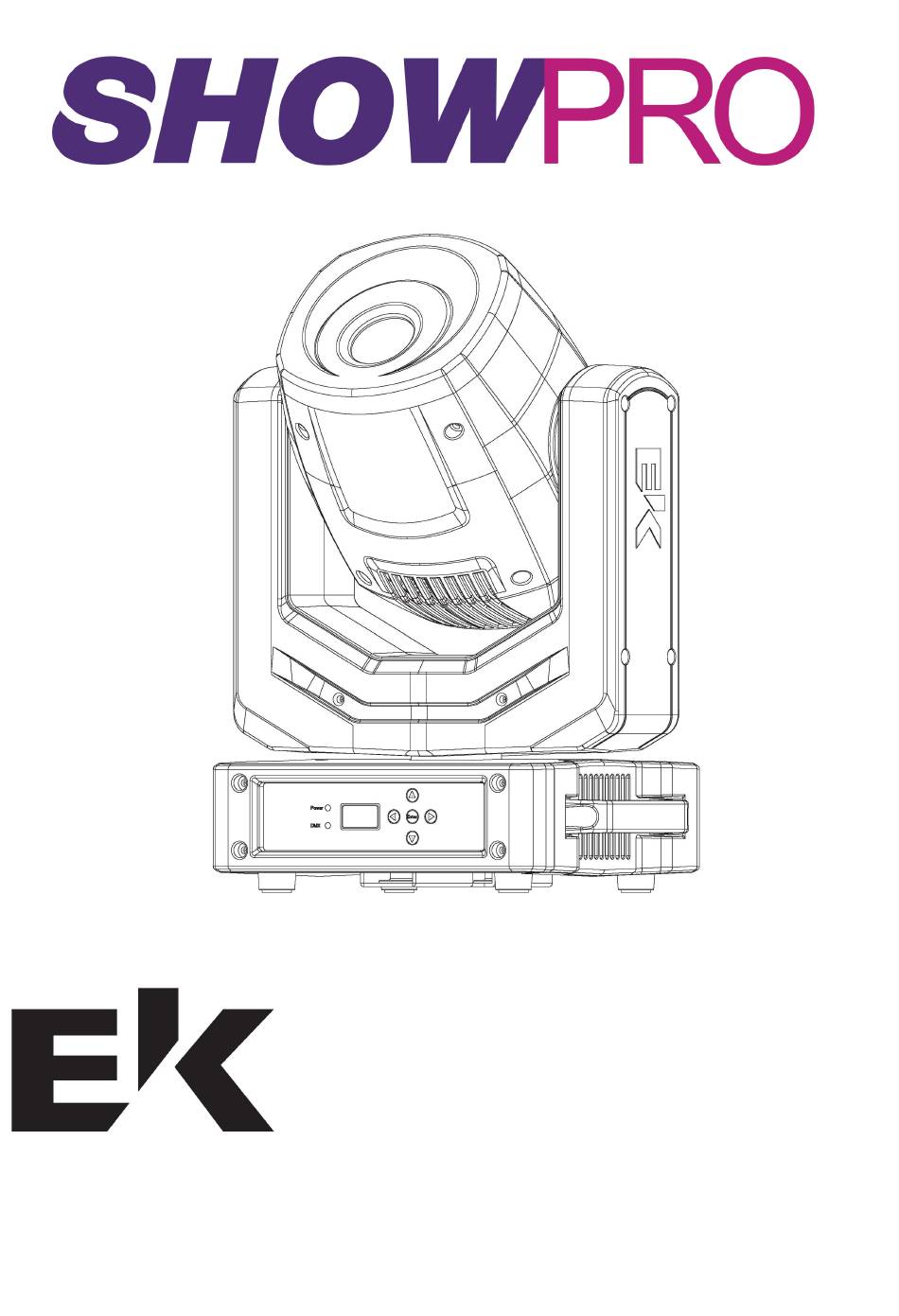

- Page 1 E3spot USER MANUAL...
-
Page 2: Table Of Contents
www.eklights.com TABLE OF CONTENTS SAFETY DIMENSIONS DESCRIPTION INTRODUCTION POWER LINKING PHOTOMETRICS DMX CONNECTION GOBO MOUNTING AND REPLACEMENT TECHNICAL SPECIFICATIONS FUNCTION MENU MENU DESCRIPTION DMX CHANNELS TROUBLESHOOTING... -
Page 3: Safety
Before carrying out any operations with the unit, carefully read this instruction manual and keep it for future reference. It contains important information about the WARNING installation, usage and maintenance of the unit. SAFETY General Instructions The products referred to in this manual conform to the European Community Directives. Leave servicing to skilled personnel only. -
Page 4: Dimensions
www.eklights.com DIMENSIONS... -
Page 5: Description
DESCRIPTION Compact, quick, feature-packed moving head 1 x 60W OSRAM RGBW LED Infinite RGBW color mixing with 7 gobos + open Ultra smooth dimming and perfectly consistent color mixing Advanced optical system projects saturated colors Flawless motorized pan/tilt movement and gobo indexing Selectable DMX channels 15/18/23 INTRODUCTION... - Page 6 www.eklights.com INTRODUCTION 3. Power Indicator 1. Safety Rope Mounting Hole 2. Handle 4. Left 6. Right 7. POWER CON In 5. Up 8. POWER CON Out 11. Main Fuse Holder 12. Clamp Fast Holder 9. DMX 3-Pin XLR Out DMX 3-Pin XLR 13.
-
Page 7: Power Linking
POWER LINKING 5/ 6/ 7... Using POWER CON In/Out Power Out Power In Power cable connected in series Attention：connect 9 units maximum Do not connect more than maximum allowable number of fixtures Do not use damaged power cables. WARNING Turn off power when the units are not in use. PHOTOMETRICS Beam Angle 18°... -
Page 8: Dmx Connection
www.eklights.com DMX CONNECTION DMX512 Controller DMX Signal Cable DMX Signal Cable DMX Signal Cable 5/ 6/ 7.. COMMON DMX十 DMX INPUT DMX OUTPUT DMX一... -
Page 9: Gobo Mounting And Replacement
DMX CONNECTION Relation between DMX and Address STARTING ADDRESS STARTING ADDRESS STARTING ADDRESS STARTING ADDRESS MODE ALLOCATION 1ST FIXTURE 2ND FIXTURE 3RD FIXTURE 4TH FIXTURE 15CH 001-001 18CH 002-019 23CH 002-024 Follow above method for subsequent fixtures, calculating starting addresses as indicated. GOBO MOUNTING AND REPLACEMENT Spring Gobo... -
Page 10: Technical Specifications
www.eklights.com TECHNICAL SPECIFICATIONS Photometrics: Misc/Options Light Source：OSRAM 60W RGBW LED Power Cord: Neutrik POWER CON Beam Angle：18° Omega Bracket：Included (1 pc) Output：606 LUX @5 meters Flight Case：Optional Key Features: Thermal Color Mixing：RGBW Cooling : Active( variable speed fan) Rotating Gobos: 7+1 Max.Ambient: 40°... -
Page 11: Function Menu
MENU Main Menu Menu level 2 Menulevel Menu level 4 Remark Default ： 1 DMXAddress 1-512 15CH DMX Functions Default ： 23CH DMXChannels 18CH 23CH Default: Pan Inverse Default: Tilt Inverse 000-255 Motor Setup Tilt 000-255 Motor Gobo 000-255 Prism 000-255 Focus 000-255... -
Page 12: Menu Description
www.eklights.com MENU Auto Test Auto Test … 000-255 Default ： Tilt:=128 Pan Fine 000-255 Dimmer=255 Tilt 000-255 Shutter = 255 Tilt Fine 000-255 Pan/Tilt Speed 000-255 Dimmer 000-255 Shutter 000-255 Test Setup 000-255 Manual Test Green 000-255 Blue 000-255 White 000-255 Gobo 000-255... - Page 13 MENU DESCRIPTION Motor Setup 1. Pan/Tilt inverse on/off selection 2. Pan/Tilt motor offset (for fine tuning pan/tilt position) 3. Gobo / Prism / Focus motor offset (for fine tuning positions) Adjustments to motor offsets should be made when selected function is at home (DMX = 0) position System Setup 1.White Balance : Adjust RGB (125-255) levels to achieve desired white light 2.Dimmer Mode: Four selectable dimmer curves: OFF Dimmer 1, 2, 3 (fast, medium, slow )
-
Page 14: Dmx Channels
www.eklights.com DMX CHANNELS 15CH 15CH Function Value Percent/Setting Remark 000-255 Rotation Angle: 540 Pan Fine 000-255 Tilt 000-255 Rotation Angle: 270 Tilt Fine 000-255 Pan/Tilt Speed 000-255 Fast to slow 000-199 No function Special Function 200-209 Reset all (Hold 3 Seconds) 210-255 No function 000-255... - Page 15 DMX CHANNELS 15CH 000-010 Prism 011-127 Prism On Prism 128-189 Left Rotation Fast to Slow 190-193 Stop Rotation 194-255 Right Rotation Slow to Fast Shutter closed 000-0 31 No function (shutter open) 032-063 064-095 Strobe slow to fast 096-127 No function (shutter open) Strobe 128-159...
- Page 16 www.eklights.com DMX CHANNELS 18CH 000-007 WHITE 008-015 Gobo 1 016-023 Gobo 2 024-031 Gobo 3 032-039 Gobo 4 040-047 Gobo 5 048-055 Gobo 6 056-063 Gobo 7 064-073 Gobo 1 Shaking Gobo 074-082 Gobo 2 Shaking 083-091 Gobo 3 Shaking 092-100 Gobo 4 Shaking 101-109...
- Page 17 DMX CHANNELS 23CH 23CH Function Value Percent/Setting Remark 000-255 Rotation Angle: 540 Pan Fine 000-255 Tilt 000-255 Rotation Angle: 270 Tilt Fine 000-255 Pan/Tilt Speed 000-255 Fast to slow 000-199 No function Special Function 200-209 Reset all (Hold 3 Second) 210-255 No function 000-255...
- Page 18 www.eklights.com DMX CHANNELS 23CH 000-127 Stop Rotation 128-189 Left Rotation Fast to Slow Gobo Rotation 190-193 Stop Rotation 194-255 Right Rotation Slow to Fast 000-010 Prism 011-127 Prism On Prism 128-189 Left Rotation Fast to Slow 190-193 Stop Rotation 194-255 Right Rotation Slow to Fast 000-031 Shutter closed...
-
Page 19: Troubleshooting
DMX CHANNELS 23CH Auto Program Speed 000-255 Speed slow to fast 000-010 Sound sensitivity OFF Sound Sensitivity Sound sensitivity adjustment (low to high) 011-255 No Function 000-010 011-058 Motor Show 1 059-106 Motor Show 2 Motor Show 3 Motor Show 107-154 155-202 Motor Show 4...
