ADTRAN SDG-8733 Quick Start Manual

Hide thumbs Also See for SDG-8733:
Table of Contents

Advertisement

Quick Links

Download this manual
Description
The SDG-8733 and SDG-8734 are carrier-class, dual-band, Wi-Fi 7 10G routers designed to deliver top-end Wi-Fi 7 performance, multi-
gigabit throughput, and advanced service delivery capabilities.

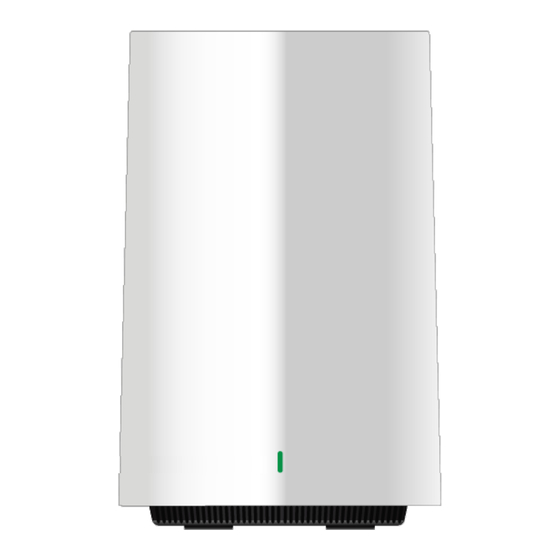

Figure 1:  SDG-8733 and SDG-8734 Wi-Fi 7 10G Routers
The SDG-8733 and SDG-8734 come with pre-loaded software packages as shown in the table below.
Table 1:  Versions of the SDG-8733 and SDG-8734
Description
SDG-8733 with SmartOS
SDG-8733 with PlumeOS DHCP
SDG-8733 with PlumeOS PPPoE
SDG-8734 with SmartOS
SDG-8734 with PlumeOS DHCP
SDG-8734 with PlumeOS PPPoE
WARNING
A warning indicates a hazard
that, if not avoided, could result in
death, injury, or serious property
damage.
Service Delivery Gateway
SDG-8733 and SDG-8734
Wi-Fi 7 10G Routers
P/N
17600074FxS
17600074FxPD
17600074FxPP
17600075FxS
17600075FxPD
17600075FxPP
CAUTION
A caution indicates a hazard
that, if not avoided, could result in
service interruption, damage to
the equipment, or minor property
damage.
August 2024
Doc Number: 6SDG873334-13A

NOTE
A note highlights additional, but
important, information or
features.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDG-8733 and is the answer not in the manual?

Questions and answers

Related Manuals for ADTRAN SDG-8733

Summary of Contents for ADTRAN SDG-8733

  • Page 1 Doc Number: 6SDG873334-13A   Description The SDG-8733 and SDG-8734 are carrier-class, dual-band, Wi-Fi 7 10G routers designed to deliver top-end Wi-Fi 7 performance, multi- gigabit throughput, and advanced service delivery capabilities. Figure 1:  SDG-8733 and SDG-8734 Wi-Fi 7 10G Routers The SDG-8733 and SDG-8734 come with pre-loaded software packages as shown in the table below.

  • Page 2: Installation

    Due to compliance certification requirements, use only pluggable optics supplied by Adtran. Adtran cannot certify system integrity with other pluggable optics. Installation After unpacking the unit, inspect it for damage. If damage is noted, file a claim with the carrier and then contact Adtran. For more information, see Warranty. Installation Guidelines Shipment Contents Step 1: Placing the SDG-8733 and SDG-8734...

  • Page 3: Step 2: Connecting The Power

     3. The SDG begins powering up immediately as the SDG-8733 and SDG-8734 have no on/off power switch.  4. Verify that the Power LED is green, indicating that the SDG-8733 and SDG-8734 is receiving power. If the LED is red, the unit is receiving an incorrect amount of power.

  • Page 4: Step 4: Quick Setup

     3. Open a web browser and enter the following: http://router or http://setup. A sign-in page should appear. If you are unable to connect to the SDG-8733 and SDG-8734 using either of these shortcuts, you can also enter the IP address of the unit. The default IP address is 192.168.1.1.

  • Page 5: Ethernet Status Leds

    LEDs When the SDG-8733 and SDG-8734 first power up, it performs self-tests. Once the power up self-tests are complete, the LEDs display the status of the device. Multifunction Status LED for SmartOS The Multifunction Status LED on the front of the unit indicates the status of the device. The following table defines this LED's different states while running SmartOS.

  • Page 6: Reset Button

    Electrical Power is provided by a region specific AC to 15V DC power adapter (USB-C) that is included with the SDG-8733 and SDG-8734. The nominal output is 15V DC ±5% with a maximum current rating of 3.0 Amps. Regional plug adapter specifications are as follows: NOTE It is strongly suggested that the power supply (a 5.9-foot (1.8 m) power cord) included with the SDG-8733 and SDG-8734 be...

  • Page 7: Warranty

    Adtran offers training courses for our products, including customized training and courses taught at our facilities or at customer sites. For inquiries, see https://adtran.com/training. Warranty Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found online at https://www.adtran.com/warranty. Safety and Regulatory Refer to the Safety and Regulatory Compliance Notice for this product (17600074FxS, 17600074FxPD, 17600074FxPP;...

  • Page 8: Regulatory Compliance

    This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: l   This device may not cause harmful interference, and l   This device must accept any interference received, including interference that may cause undesired operation. SDG-8733 and SDG-8734 Quick Start Guide...

  • Page 9: Can Ices-3(B)/Nmb-3(B)

    Canadian Department of Communications Radio Interference Regulations This digital apparatus (Wi-Fi 7 Router Model SDG-8733 and SDG-8734) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 10 HANDLING PRECAUTIONS REQUIRED 1.800.827.0807     Brand names and product names included in this document are trademarks, registered trademarks, or trade *6SDG873334-13A* names of their respective holders. Copyright © 2024 Adtran, Inc. All Rights Reserved. SDG-8733 and SDG-8734 Quick Start Guide...
