ADTRAN jobAid+ 434 RG Manual

CLEI: BVMDV00D_ _
Product P/N: 1287782F1
Documentation for ADTRAN ® Network Solutions products is available
for viewing and download directly from the ADTRAN Support
Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
1
2
3
4
2.4
5.0
1
2
WPS
Ethernet Interface
The 434 RG ONT supports data service through four 10/100/1000Base-T Ethernet interfaces via RJ-45-style connectors.
Power
Power is provided by a 12 VDC Power Adapter that is included with the 434 RG ONT. The Power Adapter operates from a main power source input of
100 to 240 VAC, 50/60 Hz, with a nominal output of 12 VDC. The total power consumption with WiFi enabled, 4 Ethernet Ports running and both POTS
lines off-hook is approximately 15.0 Watts. A connection for an optional un-interruptible power supply (UPS) is also provided.
MoCA 2.0
Multimedia over Coax Alliance (MoCA) is an industry standard technology for connecting the home to a service provider. MoCA technology uses
existing coaxial cabling for distributing high definition video with multi-room applications such as DVRs.
The 434 RG ONT supports MoCA Version 2.0 and is backward compatible to MoCA Version 1.1. MoCA 2.0 operates in C4-band with a frequency of 1000
MHz and in D-band with a frequency range from 1125 to 1675 MHz. Channel bandwidth throughput increased from > 125 Mb/s (MoCA 1.1) to 400 Mb/
s (MoCA 2.0). Refer to the ADTRAN 424RG and 434RG Residential Gateway ONT Basic Configuration Guide for provisioning MoCA.
ADTRAN 434 RG
2 POTS/4 GigE/RF/MoCA
with Dual Band WiFi
The following related online documents and resources provide additional information for this
product:
Total Access 5000 GPON OLT User Interface Guide
Total Access 5000 Series Fiber to the Premises Deployment Guide
ADTRAN 424RG and 434RG Residential Gateway Basic Configuration Guide
D
ESCRIPTION
The ADTRAN 434 Residential Gateway (RG) 2 POTS/4 GigE ONT with RF (434 RG ONT,
P/N: 1287782F1) provides Triple Play and WiFi services to a customer premises. The 434 RG ONT
also supports RF and Multimedia over Coax Alliance (MoCA 2) with backward compatibility to

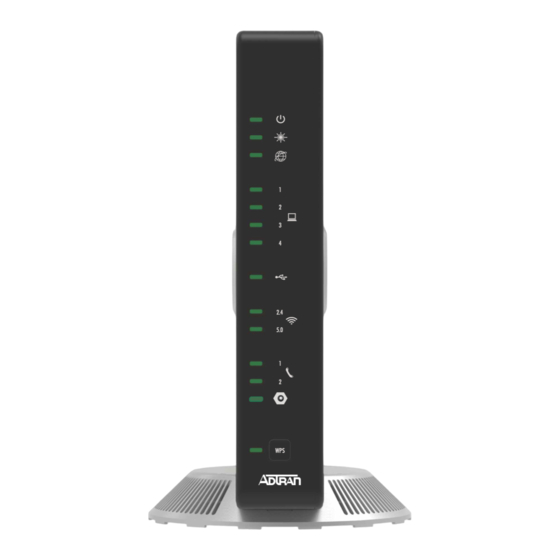

1.1. The illustration at the left displays the front and rear of the 434 RG ONT.
F
EATURES
RESET
The 434 RG ONT supports the following features:
USB
■ Two POTS (PHONE) Ports
■ Four Ethernet Ports
■ 2.4 GHz and 5 GHz WiFi
GE 1
■ CATV (with Coaxial Connection)
■ MoCA 2.0 (backward compatible with 1.1)
GE 2
■ USB 2.0 Port
GE 3
■ 12 VDC Power Adapter
■ UPS Connector
GE 4
■ Reset Button
Resetting the ONT
PHONE 1
PHONE 2 PHONE 2
A reset button is available if the 434 RG ONT needs to be rebooted. The Reset button is located just
USB
above the port on the rear of the 434 RG ONT. To reset the 434 RG ONT, press the RESET
button for 5 seconds or longer.
MoCA+RF
!
WARNING
UPS UPS
All settings will return to Factory Defaults; registration provisioning
will be lost.
12V
POTS Processing
POTS uses in-band signaling tones and currents to determine call status (for example, call
request). Because POTS allows for the transfer of audio signals below 3.3 kHz, POTS systems are
also used for modems that allow data transmission (referred to as dial up connections).
jobAid
Issue Date: May 2019
Document P/N: 61287782F1-22C
1
