Summary of Contents for lubluelu SL61

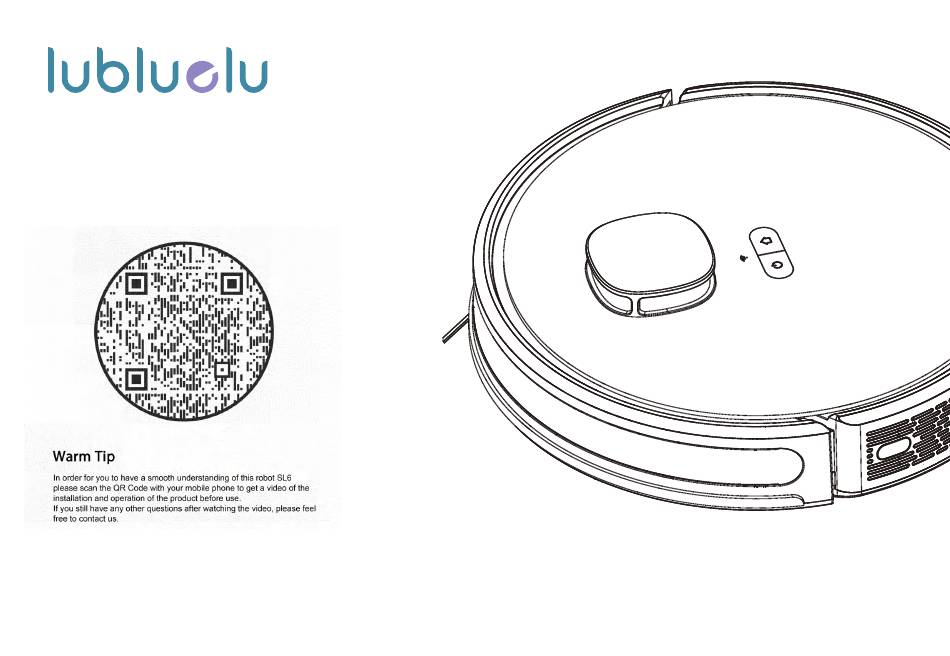

- Page 1 Model:SL61 Robot Vacuum Cleaner...
-
Page 2: Table Of Contents
Table of Contents Safety Warnings ................................ Introduction .................................. Installation and APP Connection ........................Use Instructions ................................. Function Module ..............................Maintenance ................................Malfunctions and Troubleshooting ........................ -
Page 3: Safety Warnings
Safety Warnings Application Restrictions This machine is used for indoor cleaning only. Do not use the machine outdoors (such as open balcony), on non-floors (such as sofa) or in • commercial or industrial places. • Do not use the machine in the place of cliff without protective rails (such as duplex floors, open balcony, furniture top). •... -
Page 4: Battery And Charging
Safety Warnings Battery and Charging Do not use the battery, charging base or charger produced by any third parties. • • Do not disassemble, repair or modify the battery or charging base without authorization. • Do not keep the charging base close to heat sources (such as radiator). •... -
Page 5: Introduction
Introduction Packing List Machine Charging Base 2-in-1 Dustbin & Water Tank Side Brush High-Efficiency filter+sponge Adapter Mop Holder Cleaning Brush... - Page 6 Introduction Machine WIFI Indicator Recharge Light OFF: Offline Short Press to Recharge Light Flash: Connecting Light ON: Online Power/Clean/Pause Short press to start Clean/Pause Press and hold for 3 seconds to System Reset Power ON/OFF Insert a pin to trigger the switch, the machine will shut off to reset the system.
- Page 7 Introduction Sensor and Structure Clilff sensor Charging Contacts Button Omni Wheel Side Brush Laser radar Battery cover Driving Wheel Rolling Brush Infrared Bumper Sensor 2-in-1 Dustbin & Water Tank Infrared receiving sensor...
- Page 8 Introduction 2-in-1 Dustbin & Water Tank Charging Base HEPA Filter Power Indicator High-efficiency filter cover Filter Sponge Dustbin Button Primary filter Signal Transmission DC IN Tank Cover Charging contact poles...
-
Page 9: Installation And App Connection
Installation and APP Connection Notices Please sort out the wires, debris and fragile, Avoid personal injury or property damage caused unstable, valuable and potentially dangerous by entanglement, jamming, dragging, or bumping objects on the ground before starting the device. of equipment. Do not use the robot to clean liquid. - Page 10 Installation and APP Connection 3. Connect the adapter to the charging base and arrange the 1. Remove the protective strips. power cable properly. 4. Place the charging base in proper position and power on for charging. 2. Install the side brushes. Align the side brush with the corresponding holes press the side brush until you hear a click, indicate successful assembly.
- Page 11 Installation and APP Connection 5. Do not move the charging base arbitrarily and keep it asway 6. Power-On and Charging from direct sunlight Press and hold to power on. When the indicator is illuminated, place the machine to the base for charging. The voice prompt of "Start Charging"...
- Page 12 Installation and APP Connection Install Mopping Module 1. Add water into water tank: Open the tank cover, add an 3. Install the mop to the holder. appropriate amount of water and then screw it tight. Do not add any cleaning agent. 2.
-
Page 13: Quick Connection
Installation and APP Connection Quick Connection 1.Activate the Bluetooth and make sure your phone is connected with the 2.4 GHz WiFi that usually only shows the name of the WiFi. Please don't connect the 5GHz WiFi with your phone. 2.Download and install the APP: Search the "smart life" in Appstore/Google Play or scan the QR code to download it. 3.Open the "smart life"... - Page 14 Installation and APP Connection Quick Connection 5.Add your device: Open the"smart life "APP and click "Add" Device" to add your robot vacuum. 6.Discovering Devices: Allow "smart life"APP to get the related permissions,then click 'Add' ( it usually needs to take 8-10 seconds.) Smart life Smart life smart life...
- Page 15 Installation and APP Connection Quick Connection 7.Enter the WiFi password and click the "next" 8.Wait for auto-connecting. It needs to take 1-2 minutes. 9.Click "Done" and log in to the App operation page. SL61 SL61...
- Page 16 Installation and APP Connection Slow Connection 1.Activate the WiFi in phone to connect to 2.4GHz network. 4.Log in the APP and click "Add Device"/+ Button 2.Download App: Search "Smart Life"in Appstore or scan 5.Choose "Small Home Appliances" – Robot Vacuum (Wi-Fi) the QR code.
- Page 17 Installation and APP Connection Slow Connection 6.Enter the password and click "Next". 8.Click "Confirm the Indicator is Blinking" button. 7.Press both "Power + Charge" buttons for 3 seconds and the light 9.Select the AP mode. starts to flash, which means the machine starts network distribution.
- Page 18 Installation and APP Connection Slow Connecton 10.Click “Next”. 12.Wait for the connection. 13.Click “Done” to log in APP. 11.Then select SMATR LIFE XXX and return. SL61...
-
Page 19: Use Instructions
Use Instructions Charging Power ON/OFF Auto Mode: The machine will automatically return to the charging Press and hold for 3 seconds till the indicator is illuminated, base for charging after cleaning. which means the machine has been powered on. Press and hold Manual Mode: In the PAUSE state, short press to start the for 3 seconds in standby mode, the indicator is OFF, which... -
Page 20: Function Module
Function Module Smart Clean (Default) Targeted Clean 1.Before the first use, Robot Vacuum will scan the domestic 1.Select " Press to run” in the APP. environment first and generate a map with smart area divisions. 2.Select a point to be cleaned on the map, then click "Go Cleaned area Cleaned area... - Page 21 Function Module Customized Clean Designated Clean Select “Area Sweep” in the APP and click "+ cleaning area" in the right. Select an area to be cleaned on the map and click "Go Here” 1.Select the cleaning function for the selected area in the APP. Robot Vacuum will start the clean within the customized area.
-
Page 22: Maintenance
Maintenance It’s recommended to clean the rolling brush every 1~2 weeks. Side brush (to be cleaned every week) 1. Turn the machine over and press the buckle to remove the brush lid. 1. Turn the machine over and pull out the side brush vertically. 2. - Page 23 Maintenance Dustbin and Filter Clean the dustbin (to be cleaned every 2~3 days) (to be cleaned every week) 1. Press and hold the button to pull out the dustbin. 1. Clean the filter: Remove the filter sponge and HEPA filter. Gently tap the HEPA filter to remove the dust.
- Page 24 Maintenance Clean the infrared bumper sensor Clean the charging contacts (to be cleaned every month) (to be cleaned every month) Clean the edge sensor (to be cleaned every month)
- Page 25 Maintenance Battery Clean the signal transmitting area (to be cleaned every month) • The machine is equipped with high-performance rechargeable lithium-ion battery. For the sake of battery performance, please keep the machine fully charged in daily maintenance. If the machine will not be used for a long time, please power it off •...
-
Page 26: Malfunctions And Troubleshooting
Malfunctions and Troubleshooting Descriptions Machine cannot be switched on • The battery is low, please place the machine to the spring contact of the charging base and the machine will automatically power on. Machine cannot be switched on. • Ambient temperature is less than 32°For more than 104°F, please use the machine in the 32°F~ 104°F environment. - Page 27 Malfunctions and Troubleshooting Voice Prompt Solutions The voice prompt will be heard when the dustbin is removed. Please insert the dustbin. Insert dustbin Please pick up the machine; if the machine is not fully contact the ground, please move the Put the vacuum on the floor before starting machine to a flat place and start again.
