Lubluelu L20 Manual

Product overview

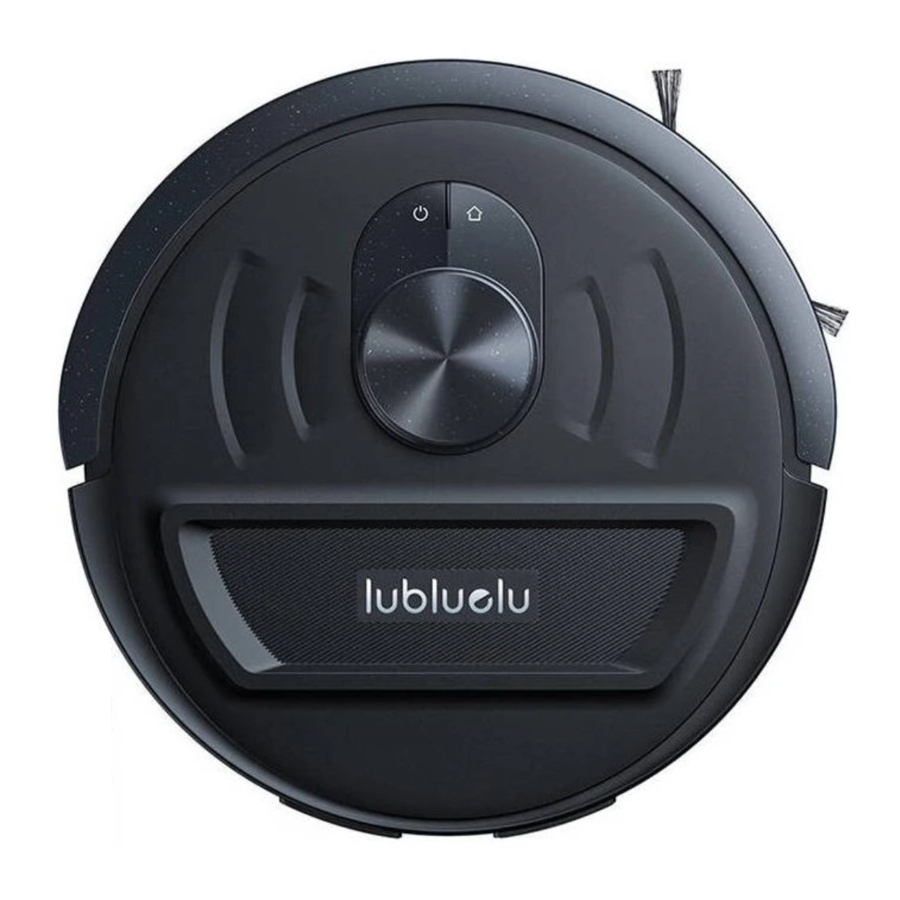

Main unit

Two-in-one water tank and mopping module

Charging Station

Product installation

Installation of Charging Station

1. Find a suitable location against the wall to place the charging station and connect it to the power supply;

2. Step 2: When using the device for the first time, press and hold the button to power it on, then manually place the main unit against the charging station for charging.


1. Before use, please remove the anti-collision protection strips on both sides of the main unit, the protective film on the front collision lens, and the infrared lens protective film;
2. During charging, do not install the mopping module to prevent damp mops from leaking and damaging the floor;
3. Please put away the power cord, otherwise it may be dragged by the robot, causing the charging station to shift or power off;
4. Do not use this device in a room with infants and young children, and keep it away from them;
5. When the main unit is charging on the charging station, children or pets shall not be allowed to approach or collide with the main unit, to avoid danger;
6. In order to facilitate the smooth return of the main unit to the charging station after cleaning, it is recommended to start the appliance from the charging station and that you do not move the charging station during the cleaning process;

Installation of mopping module

1. Install the mop
   Insert the wrung damp mop into the mop holder and paste it on the Velcro;

2. Fill the two-in-one water tank with water
   Open the rubber cap of the two-in-one water tank inlet, pour clean water into the tank, then fasten the rubber cap;

3. Install the mopping module
   Install the mopping module into the bottom of the two-in-one water tank according to the direction shown in the diagram;

4. Install the two-in-one water tank
   Install the two-in-one water tank into the main unit according to the direction shown in the diagram, until you hear a "click" sound.


1. Do not pour hot water into the two-in-one water tank to avoid deformation of the water tank; do not flush or soak the two-in-one water tank;
2. Do not use detergents, disinfectants, solid detergents, and other cleaning products to prevent corrosion and blocking of the two-in-one water tank;
3. Due to production testing reasons, there may be a small amount of water residue in the two-in-one water tank, which is a normal phenomenon;
4. When mopping the floor, set up virtual walls or a no-go area in carpeted areas; do not use the mopping function on the carpet;
5. When the device is charging or not in use, remove the mopping module, pour out the excess water in the water tank, and clean the mop to avoid mildew or odours;
6. It is recommended to clean the mop after each use to ensure the water output speed and cleaning effect. If necessary, the mop can be replaced with a new one;
7. When the main unit is charging on a wooden floor, timely remove the mopping module to prevent the mop from leaking and damaging the floor.

Installation and APP Connection

Quick Connection

1. Activate the Bluetooth and make sure your phone is connected with the 2.4 GHz WiFi that usuaIIy only shows the name of the WiFi. Please don't connect the 5GHz WiFi with your phone.

2. Download and install the APP: Search the "smart life" in App store/Google Play or scan the QR code to download it.

3. Open the "smart life" App, agree to the "User Agreement and Privacy Policy" and register your account.

4. Turn on the robot vacuum, then press the "" and the "" button meantime for at least 3 seconds until the WiFi button flashes.

5. Add your device: Open the"smart life "APP and click "Add" Device" to add your robot vacuum.

6. Discovering Devices: Allow "smart life" APP to get the related permissions, then click "Add' ( it usually needs to take 8-10 seconds.)

7. Enter the WiFi password and click the "next".

8. Wait for auto-connecting. It needs to take 1-2 minutes.

9. Click "Done" and log in to the App operation page.


Slow Connection

1. Activate the WiFi in phone to connect to 2.4GHz network.

2. Download App: Search "Smart Life" in App store or scan the QR code.

3. Registration: Open the APP and complete the registration.

4. Log in the APP and click "Add Device"/+ Button.

5. Choose "Small Home Appliances" — Robot Vacuum (Wi-Fi).

6. Enter the password and click "Next".

7. Press both "Power + Charge" buttons for 3 seconds and the light starts to flash, which means the machine starts network distribution.

8. Click "Confirm the Indicator is Blinking" button.

9. Select the AP mode.

10. Click "Next".

11. Then select SMART LIFE XXX and return.

12. Wait for the connection.

13. Click "Done" to log in APP.


Turning on/off and cleaning modes

1. Power on/off
   Press and hold the power button for 3 seconds. The power button indicator turns on, and the main unit enters standby mode. When the main unit is stationary, press and hold the power button to turn it off, and the indicator will turn off.
   When the main unit is in operation, pressing any button will pause the main unit. After a pause, press the power button again to continue cleaning.
2. Return to recharge
   In standby mode, press the recharge button, and the main unit will return to the charging station to recharge. When the main unit has finished cleaning, it will automatically return to the charging station to recharge, and the indicator will flash white. If the battery is low during cleaning, it will automatically return to the charging station to recharge.
3. Quick map building
   When the main unit is powered on for the first time, there is no map in the app. Place the main unit into the charging station, select quick map building in the app, and the main unit will build a map with one full house cleaning. After the main unit automatically returns to the charging station, the map will be completed and saved automatically.
4. Memory map
   After the main unit successfully completes a quick map building or cleaning and returns to the charging station to recharge, the app will automatically save and update the map. After the map is successfully built, you can divide, merge areas or customise room names in the app.
5. Full house cleaning
   Start full house cleaning through the app or by pressing the power button. The main unit will first carry out full house cleaning along a set path, then carry out edge cleaning and automatically return to the charging station to recharge after the cleaning is finished.
6. Edge cleaning
   Select Edge Cleaning in the app, and the main unit will automatically recognise the cleaning area and perform edge cleaning, and automatically return to the charging station to recharge after the cleaning is finished.
7. Area cleaning
   After setting the area cleaning in the app, the main unit will clean according to the planned area and automatically return to the charging station to recharge after the cleaning is finished.
8. Fixed-point cleaning
   Select fixed-point cleaning in the app, then set the target point on the map. The main unit will automatically plan the route to the target point and clean in a 2 m square area with the target point as the centre. The main unit will automatically return to the charging station to recharge after the cleaning is finished.
9. Scheduled cleaning
   Use the app to set the time of scheduled cleaning, and the main unit will automatically start cleaning at the specified time and automatically return to the charging station after the cleaning is finished.
   If the Do-Not-Disturb Mode is enabled, the scheduled cleaning will not be executed during the Do-Not-Disturb period.
10. Add water or clean the mop during operation
    During the cleaning process, if you need to add water or clean the mop, pause the device by pressing the power button, remove the two-in-one water tank and mopping module, add water or clean the mop, and then install the two-in-one water tank and mopping module. Finally, press the power button to continue working.
11. Sleep mode
    If the main unit is not charging and there is no operation for more than 5 minutes, it will automatically enter sleep mode. If it stays in sleep mode for more than 6 hours, it will automatically turn off. TO wake up the main unit, press any button Or use the app.
12. Resume cleaning
    During the cleaning process, if the battery is low, the main unit will automatically return to the charging station to recharge. After recharging, the main unit will automatically return to where it left off and continue the cleaning process. If you manually stop cleaning, then move or operate the main unit during the charging process, the resume cleaning will be cancelled.
13. Virtual wall/No-go area
    In the app, you can set up virtual walls or no-go areas to prevent the main unit from entering areas that do not need to be cleaned.
    Before using the virtual wall/no-go area function, you need to save the map in the app. Moving the main unit or major changes in the environment can cause the original map to become invalid and result in the loss of virtual walls/no-go areas.
14. Do-Not-Disturb Mode
    During the Do-Not-Disturb period, the main unit will not execute resume cleaning and scheduled cleaning or actively broadcast voice prompts. The Do-Not-Disturb Mode is enabled by default from 23:00 to 9:00. You can enable/disable the Do-Not-Disturb Mode or set the time period of the mode.
    During the do-not-disturb time period, the indicator will go off after the main unit has been charged for one minute.
15. Reset Wi-Fi
    When the mobile phone cannot connect to the main unit after resetting the password or for other reasons, reset the Wi-Fi connection by following the actions in the app download Of this manual.
16. Factory reset
    Press and hold the recharge button for 5 seconds until you hear a prompt, then press and hold for another 5 seconds for a factory reset. The main unit needs to reconnect to the app, and al related settings in the app will be cleared.
17. Firmware upgrade
    The device's firmware can be upgraded through the app. During the upgrade process, the main unit must be in the charging station or have a battery power more than 30%. It is not al owed to start cleaning during the upgrade process.

1. It is recommended to place the main unit in the charging position of the charging station before starting cleaning;
2. Before using the product, arrange the desks, chairs, household items, floor objects, etc. neatly, and clear power cords and small items laying on the ground to avoid the product being blocked during cleaning
3. Do not stand in front of the device while it is operating to avoid obstructing the device from identifying the area to be cleaned;
4. It is recommended not to turn off the main unit after it has finished working, but to keep it in the charging state for better performance in the next cleaning.

Indicator status description

Status description of main unit indicator

Device disassembly and cleaning

Please perform the following cleaning steps when the power is off!

Disassembly and cleaning of rolling brush components

1. Disassemble the rolling brush
   Turn the main unit over, lift the buckle and take out the rolling brush cover, and then take out the rolling brush;

2. Clean the rolling brush
   Use a cleaning brush to pick up and cut off the hair and fibre attached to the rolling brush, separate them from the rolling brush, and clean the surface dirt. It is recommended to replace the rolling brush every 6-12 months.


1. Turn off the power before replacing the rolling brush;
2. The cleaning brush has sharp blades used to cut through tangled debris that is difficult to clean. Keep the cleaning brush out of reach of children.

Disassembly and cleaning of side brush

1. Disassemble the side brush
   Turn the main unit over, use a screwdriver to remove the screws, and take out the side brush;

2. Clean the side brush
   Use a cleaning brush to pick up and cut off the hair and fibre attached to the side brush, separate them from the side brush, and clean the surface dirt. It is recommended to replace the side brush every 3-6 months.


1. Please replace the side brush with an original one to avoid damaging the main unit due to product differences;
2. Please be careful when using a screwdriver to replace the side brush to avoid scratching yourself.

Disassembly and cleaning of the two-in-one water tank and filter

1. Disassemble the two-in-one water tank
   Press the release button on the two-in-one water tank to take the water tank out;

2. Dump the rubbish in the two-in-one water tank
   Open the cover of the two-in-one water tank dust bin and dump the rubbish. Use a cleaning brush to clean the dust bin;

3. Disassemble the filter
   Take out the filter holder, remove the filter, and clean it with a cleaning brush;

4. Clean the filter
   Rinse the filter with clean water and allow it to air dry before using it again to prevent dust clumping

5. Clean the two-in-one water tank
   Rinse the two-in-one water tank dust bin with clean water and allow it to air dry for 24 hours before using it again to prevent dust clumping


1. Do not flush or soak the two-in-one water tank while cleaning the two-in-one water tank dust bin;
2. It is recommended to replace the filter with an original one every 3-6 months to ensure cleanliness.

Disassembly and cleaning of mop

1. Remove the mop
   Remove the mopping module from the two-in-one watertank and take the mop off the mop holder,

2. Clean the mop
   Rinse the mop with clean water and allow it to air dry before using it again to prevent dust clumping.


1. Please replace the mop with an original one to avoid affecting the cleaning effect due to product differences;
2. It is recommended to replace the mop with an original one every 3-6 months to ensure cleanliness.

Cleaning of components

1. Clean sensors in the main unit
   Use a soft and clean cloth to wipe the laser distance sensor, infrared lens, charging electrode plates, and cliff sensors of the main unit;

2. Clean the omni wheel
   Turn the device over and use a screwdriver to remove the omni wheel, and clean the hair and dirt on the wheel.


1. Do not use wet wipes, detergents, sprays, or other chemical products to clean the sensors, infrared recharging sensors, or charging electrode plates of the main unit;
2. Please be careful when using a screwdriver to replace components to avoid scratching yourself.

Troubleshooting

Tip: Some anomalies can be eliminated by resetting the system.

FAQs

Technical data

Safety instructions

Please read the manual before use.

To avoid injury to yourself and others, and to avoid unnecessary property damage, read carefully before using the product and observe the following "Safety instructions". The safety instructions are divided into two sections, "Warning' and "Caution". The "Warning" and "Caution" sections contain important information for safe use of the product and must be followed.

Important safety instructions to prevent death or serious injury from incorrect operations.

Important safety instructions to prevent minor injury or device damage from incorrect operation.

1. Do not use this product in wet places such as bathrooms or near water sources;
2. Do not use it to clean up liquids, matches and wet garbage;
3. Do not pull out/insert the power cord plug or touch the socket with wet hands;
4. Do not use damaged power plugs or loose sockets;
5. Do not use the main unit to clean flammable liquids such as kerosene, gasoline, objects with sparks, toner cartridges, toner and other combustible dust; do not use the device near the above items, or in environments with flammable and explosive gases to avoid fires;
6. Do not disassemble, repair, or modify the product on your own, to avoid fire, injury, or damage, except for the replacement of consumables in accordance with the manual;
7. Do not charge non-rechargeable batteries. Please use an AC power supply with a rated voltage rather than a generator or a DC power supply to avoid fire hazards and electric shocks;
8. Please use a dry cloth to clean the dust on the plug regularly to avoid a fire hazard caused by poor insulation and other reasons;
9. Please make sure to insert the plug firmly to avoid electric shock, short circuits, and fire;
10. Please immediately cut off the power and stop using the device in case of any malfunction to avoid smoke, fire, or electric shock;
11. If the device deforms, overheats abnormally, emits a burning smell, or makes an unusual noise during charging or use, immediately disconnect the power supply and unplug the device. Place it in an open and non-flammable area to ensure safety. Faulty products shall be replaced and repaired by the manufacturer or its maintenance specialist to avoid danger;
12. Please make sure to pull the plug from the power socket before conducting any cleaning and maintenance to avoid electric shock and injury;
13. Ifthe rolling brush malfunctions during use, please first turn off the power button and immediately check whether the rolling brush is entangled with hair or other long fibres, and clean it in a timely manner;
14. Do not spray water on the product body and plug, or immerse them in water;
15. When pulling out the plug, please make sure to hold the insulated part of the power cord and do not pull the power cord directly;
16. The battery is a sealed unit, and there is no safety hazard under normal circumstances; If liquid leaks out of the battery in extreme cases, it may cause irritation or burns. If you accidentally come into contact with the liquid, take the following instructions:
    1. skin contact - wash with soapywater;
    2. eye contact - immediately rinse with water for at least 15 minutes and seek medical help;
17. This device is not suitable for children or individuals with poor physical, sensory, and mental abilities or those who lack relevant experience and knowledge. Please provide supervision during use;
18. Please keep the robot vacuum and mop combo away from electromagnetic equipment in hospitals; instruct children not to play with the device as a toy; the device should only be used with the original accessories provided;
19. This power cord is only applicable for use with the robot vacuum and mop combo as specified by the merchant;
20. Before charging the device, check whether the power cord specifications match the required power voltage;
21. The appliance is only to be used with the power supply unit provided with the appliance;
22. This appliance contains batteries that are only replaceable by skilled persons;
23. Warning: the charging station against recharging non-rechargeable batteries;
24. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. Do not use this device outdoors, on non-flat surfaces, or in commercial or industrial environments;
2. Do not use the product in environments without protective fencing (such as duplex floors, open balconies, furniture tops);
3. Do not use it in environments above 35°C, below 0°C, or where there is any liquid or sticky substance on the floor;
4. Do not block the air outlet to avoid deformation, malfunction, or fire caused by overheating;
5. Do not drag the device to avoid scratching the floor;
6. Do not swing the device or allow young children to play with it to avoid injury or damage to the device;
7. Do not drop the device or collide it with other objects, or apply pressure to it to avoid fire or electric shocks caused by malfunctions;
8. Make sure to install the rolling brush and filter before using the device to avoid damage to the motor and device;
9. Check whether the power cord is intact before charging;
10. Before using the robot vacuum and mop combo for the first time or replacing the designated filter, turn off the main power and ensure the filter is properly installed;
11. Used battery packs should be properly disposed off. Do not discard them randomly;
12. Before using the product, arrange the desks, chairs, household items, floor objects, etc. neatly, and clear power cords and small items laying on the ground to avoid the product being blocked during cleaning
13. When the machine is running, keep curtains and tablecloths awayfrom the ground, and keep the carpet flat, so as to prevent the product from being blocked during operation and causing damage to your valuables;
14. Before the first use, make sure all room doors are open for the device to build a complete home map;
15. Do not stand in front of the device while it is operating to avoid obstructing the device from identifying the area to be cleaned;
16. If not used for a long time, the robot vacuum and mop combo should be fully charged before it is turned off. It is recommended to charge the device at least once every 3 months to avoid the battery damage;
17. Do not use or keep the device under extreme adverse conditions, such as extreme temperatures. It is recommended to use it in an indoor ambient environment and keep it in a cool and dry place.
