Lubluelu SG60 Manual

Introduction

Packing List

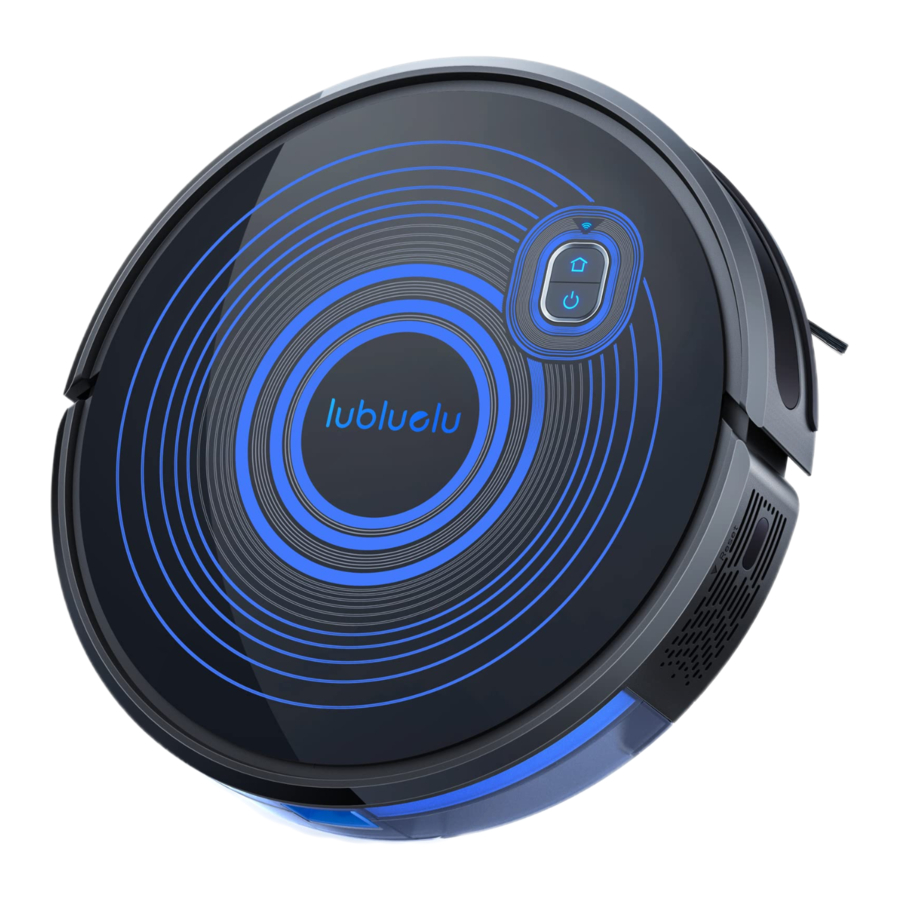

Machine

Sensor and Structure

Dustbin Accessories

Charging Base

Remote Control

Installation and APP Connection

Notices
Please sort out the wires, debris and fragile, unstable, valuable and potentially dangerous objects on the ground before starting the device.

Avoid personal injury or property damage caused by entanglement, jamming, dragging, or bumping of equipment.

Do not clean the liquid.

Please set up guardrail in the places with cliff to prevent physical injuries or property losses due to accidental falling of the machine or other items.

Installation

1. Remove the protective strips.

2. Install the side brushes.
   Press left brush (L) and the right brush (R) respectively into corresponding holes until the "click" sound is heard.

3. Connect the adapter to the charging base and arrange the power cable properly.

4. Place the charging base in proper position and power on for charging.

   Notes:
   1. Please place the charging base on a flat place against the wall.

   2. Reserve a space of more than 0.5m on both sides and more than 1.5m in the front.
   3. When the charging base is powered on, the charging indicator will be illuminated.
5. Do not move the charging base arbitrarily and keep it away from direct sunlight

6. Power-On and Charging
   Press and hold to power on. When the indicator is illuminated, place the machine to the base for charging. The voice prompt of "Start Charging" indicates successful charging.

   Note:
   If the battery is too low to start the machine, please place the machine to the charging base and it will automatically power on.

APP Connection

1. Activate the WIFI and Bluetooth in the phone.

2. Searchfor "Smart Life" in App Store/Scan QR code to search and download "Smart Life"
   (Note: "Smart Life" must be authorized to enable the Nearby Devices)

3. Open "Smart Life", then register and log in.

4. When the power is on, press and hold "Power" and "Recharging" for more than 3 seconds till the WIFI indicator starts to flash.

5. Enter "Smart Life", click "Add Device", then select + in the upper right corner to add device.

6. Search for Sweeping Robot, then click "Add".

7. Enter WIFI password for network configuration

8. Wait for automatic connection.

9. Click on "Done" in upper right corner to enter the operation interface.


Operation Instructions

Power ON/OFF
Press and hold for 3 second still the indicator is illuminated, which means the machine has been powered on. Press and hold for 3 seconds in standby mode, the indicator is OFF, which means the machine has been powered off. Note: The machine cannot be powered off during the charging.

Clean/Pause
After the machine is powered on, short press or use the remote control or APP to start cleaning.
Notes:

• Do not clean the liquid.
• The machine cannot start cleaning if the battery is lower than 15%, please charge the machine first.
• If the battery is lower than 15% during the cleaning, the machine will automatically return to the base for charging.
• Please clear up the wires on the ground (including the power cord of charging base) before cleaning to avoid power failure or property damages due to cable entanglement during cleaning.

Charging
Auto Mode: The machine will automatically return to the charging base for charging after cleaning.
Manual Mode: In the PAUSE state, short press to start the recharging or use the remote control or APP to start the recharging.
Note: If the machine cannot find the charging base, it will automatically return to the starting position, please place the machine back to the charging base manually.

Virtual Wall
You can setup magnetic strip to isolate the area snot to be cleaned (such as bathroom, kitchen, etc.)

Note: Please properly fix the magnetic strip on the ground to ensure the normal function of the virtual wall.

Auto Clean
In the default cleaning mode, the machine will set the scanning path to clean all the ground in an orderly and efficient manner. The machine will automatically return to the charging base for charging after cleaning.

Designated Clean
Press on the remote control, the machine will set the self-centered path to clean a circular area within a diameter of I.2m. After the cleaning is completed, the machine will automatically return to the starting position and stop cleaning.
(In addition, you can also press the direction buttons on the APP to manually guide the machine to the place needs to be cleaned.)

Edge Cleaning
To clean the edges indoors, the machine will move along the edge of fixed objects (such as walls) and return to the charging base after cleaning.
Short press on the remote control or use APP to quickly start the Edge Cleaning.

Appointment Cleaning
You can set appointment cleaning time on the APP and the machine will automatically start cleaning at the specified time and return to the charging base after cleaning (7X24h appointment)

Mute Mode
The voice will not prompt in the silent mode. Mute Mode can be activated or disactivated through the APP.

Suction Force
The Power Mode, Normal Mode and Mute Mode can be switched through the APP.

Maintenance

It's recommended to clean the rolling brush every 1-2weeks.

1. Turn the machine over and press the buckle to remove the brush lid.
2. Remove the rolling brush.

3. Clean the main brush and rolling brush with the tool provided and remove the entangled debris on the rolling brush.


Side brush (to be cleaned every week)

1. Turn the machine over and pull out the side brush vertically.

2. Remove the entangled hairs and dirt, then reinstall the side brush.

3. Press the left brush (L) and the right brush (R) into the corresponding holes to complete the brush installation.

Note: It is recommended to replace the side brush every months (especially when the side brush is seriously deformed) for the sake of satisfactory cleaning effect.

Dustbin and Filter (to be cleaned every 3--5 days)

1. Press and hold the button to pull out the dustbin.

2. Press and hold the dustbin lock to open and dump the dirt inside.


Clean the dustbin (to be cleaned every 1-2 weeks)

1. Clean the filter: Remove the filter sponge and HEPA filter. Gently tap the HEPA filter to remove the dust.
2. Clean the dustbin: Open the dustbin and clean with a brush or rag.

3. If the dustbin is too dirty, it can be washed with water. Please use only after being thoroughly dried.

   Notes:
   1. Please do not add detergent when washing the dustbin with water; make it thoroughly dry after wash.
   2. It is recommended to replace the HEPA filter every 3-6 months.

Clean the infrared bumper sensor (to be cleaned every month)

Clean the edge sensor (to be cleaned every month)

Clean the charging contacts (to be cleaned every month)

Clean the signal transmitting area (to be cleaned every month)

Battery

• The machine is equipped with high-performance rechargeable lithium ion battery. For the sake of battery performance, please keep the machine fully charged in daily maintenance.
• If the machine will not be used for a long time, please power it off before storage and charge the battery at least every three months to avoid battery failure.

Firmware Upgrading
The firmware can be upgraded through the APP when new firmware is detected. Please follow the instructions to complete the upgrading. More than half battery may be needed for the upgrading, it's recommended to complete the firmware upgrading on the charging base.

Malfunctions and Troubleshooting

Safety Warnings

Application Restrictions

• This machine is used for indoor cleaning only. Do not use the machine outdoors (such as open balcony), on non-floors (such as sofa) or in commercial or industrial places.
• Do not use the machine m the place of cliff without protective rails (such as duplex floors, open balcony, furniture top).
• Do not use the machine in the place more than 40C or less than 0C or on the ground with any liquids and viscous substances.
• Pleasehang up the wires on the ground indoors before use, to avoid the wires being entangled during cleaning.
• Please remove the fragile items and debris (such as vases, plastic bags, etc.) on the ground to avoid valuables being damaged due to obstacles or minor collisions.
• Those with physical, mental or perceptual impairments, Including children, are prohibited to use or operate the machine.
• This machine should not be used as a toy by the children. Pleasekeep children and pets away when the machine is working.
• Place the cleaning brush beyond the reach of the children.
• Do not place any objects (including children or pets) on the stationary or moving machine.
• Do not keep any parts of human body or pets such as hair and finger close to the suction port during the cleaning.
• Do not use the machine to clean the burning objects (such as unquenched cigarette butts)
• Do not use the machine to clean the plush carpet (some dark carpets may not be cleaned properly)
• Do not use the machine to clean the hard or sharpobjects (such as decoration wastes, glass, iron nails, etc.)
• Do not use the bumper as the handle.
• Please cut off the power before cleaning or maintaining the machine or the charging base.
• Do not wipe any parts of the machine with a damp cloth or any liquid.
• Pleasestrictly abide by the operation instructions. Any losses or injuries causedby improper operation shall be borne by the user.
• Do not activate the mop function on carpets or on top of furniture.
• Please remove the water tank during charging.

Battery and Charging

• Do not use the battery, charging base or charger produced by any third parties.
• Do not disassemble, repair or modify the battery or charging base without authorization.
• Do not keep the charging base close to heat sources (such as radiator).
• Do not wipe or clean the spring contacts of the charging basewith a damp cloth or wet hands.
• Do not discard the used battery arbitrarily. The used battery should be handed over to professional recycling agency for proper disposal.
• Do not use the machine if the power cord is broken or wrecked, please buy new power cord through official channels.
• Please power off the machine during transportation. It's recommended to transport the machine with original package.
• If the machine will not be used for a long time, please power it off after being fully charged, then store in a cool and dry place. Charge the battery at least every three months to avoid the battery failure due to excessive discharging.
