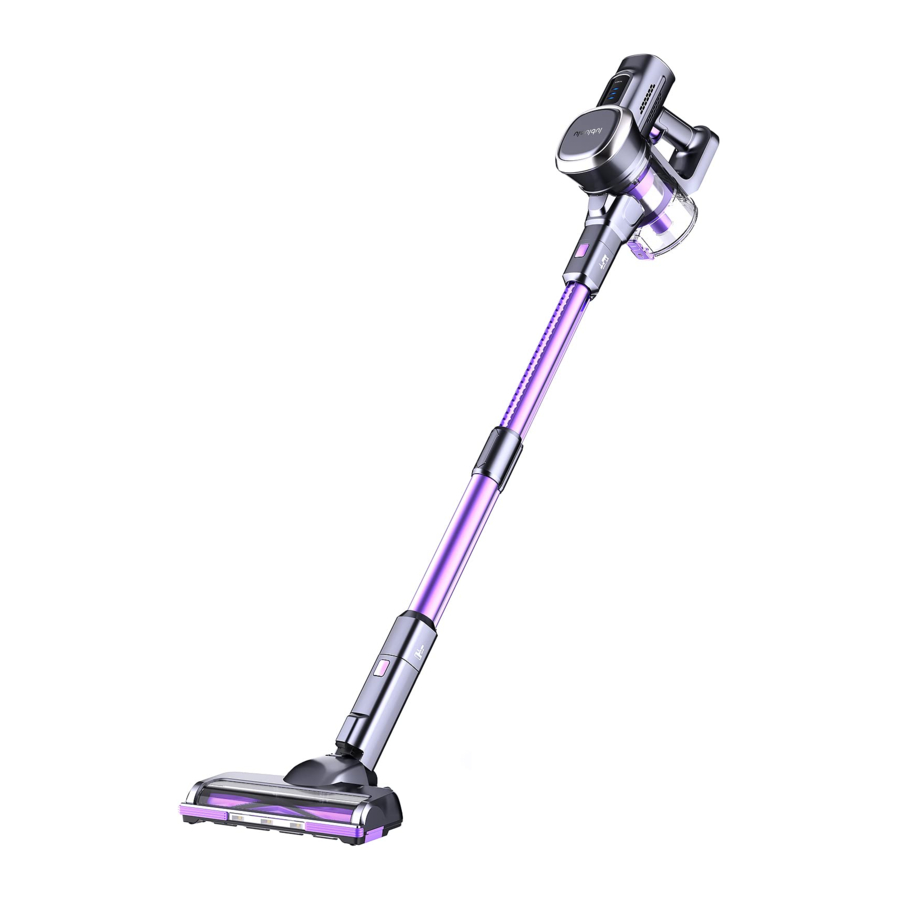

Lubluelu 202 Manual

Product Parts introduction

Accessory Instructions

Direct-drive LED multi-tasker power brush
Direct-drive technology increases the cleaning efficiency and creates a highly dynamic operation, very effective for agitating dirt embedded in the carpet, easy to clean fine dust and debris. Ideal for both hard floors and carpets.

Long suction nozzle
For corners, niches and other hard-to reach places, such as car seat and mat, picture frame, etc.

Soft dusting brush
Angled bristles on slender, oval shape provide anti-static cushioned contact. Suitable for dusting sofa, curtain or other fabric furniture, or delicate surfaces, electronics, and more.

Hair cleaning tool
Use the end with small blade to remove the hair and debris wrapped around the roller brush. Use the end with little brush to clean the brush window, also can be used to clean the Dustbin and HEPA.

Wall mount
Store the vacuum cleaner and brush on the wall by wall mount as needed.

Power adapter
Charge the battery of vacuum cleaner by Power adapter.

Filter HEPA
Top 11 Class Filter HEPA to increase the cleaning efficiency and remove up to 99.8% of microscopic dust particles as small as 0.3 microns.

Assembly

Install the Retractable metal tube

Insert the Retractable metal tube

Press the Release button and remove tube.

Install the Motorized floor brush

Insert the Motorized floor brush.

Press the Release button and remove Motorized floor brush.

Install the Roller Brush

Push the lock to the right, and pull the Roller brush out.

Put the Roller brush into the Brush window, place the left side to the correct position, and push the lock to the left to install the Roller brush.

Install Filter Components

To better clean the Filter case and Filter HEPA, press the Dust release button, clockwise rotate the Filter case and remove it, then remove the Filter HEPA from the Filter case.

After clean the Filter case and Filter HEPA, put the HEPA in the Filter case, and counterclockwise rotate the Filter case to instal it, and close the Dustbin case.

Install the Battery

Press the Battery release button, the battery pop out.

Slide the Battery into the main body.
The battery will click into position when correctly fitted.

Product Operation

Start to Work

1. Step on the Motorized floor brush and press the vacuum cleaner down to open the Motorized floor brush lock.
   (note: both the left and right sides of Motorized floor brush could be stepped on as you like)

2. Press the Switch button, the vacuum machine will start to work;
   press the Switch button again and the vacuum machine will stop to work;

3. Choose the MIN/MID/MAX Mode of Vacuum cleaner by Speed button for different floor condition.
   (Note: Choose the MAX Mode for the carpet, or big size garbage like candy; choose the MIN Mode for the floor or for lower noise).

4. Hold the Extend retract operating spot, extending or retracting the Retracting metal tube to choose the suitable vacuum cleaner height for more comfortable cleaning;



Battery charging

Three Ways to charge the Vacuum cleaner:

1. Charge the vacuum cleaner head by Power adapter;
2. Remove the Battery from the vacuum cleaner and charge it separately by Power adapter;
3. Charge the whole vacuum cleaner by Power adapter

Charging mode: directly insert into the charging socket of the battery to charge.

Battery indicator light

1. When the Power indicator flashes for seconds and turns off, indicating that the power has been used up. Please plug the Charger adaptor into household socket for charging;
2. When the Power indicator is always on and no longer flashing, it means that the machine is fully charged.

How to empty the Dustbin

Press the Dustbin release button

Note:

1. Please clean the Dustbin when the dust reaches its MAX level;
2. We suggest to clean the Dustbin every 3-5 days even the dust doesn't reach its MAX level.

Clean the Filter components

Pull the Filter HEPA out from Filter case and clean them separately:

1. Clean the Filter case: normally brush the dirts firstly, wipe dry it by cloth; if it was too dirty, please wash it and wipe dry it by cloth and leave to dry it in a well-ventilated place under the sun.
2. Clean the Filter HEPA: normally brush the dirts by Hair cleaning tool slightly; or rinse and brush it if the HEPA was too dirty and leave to dry it in a well-ventilated place under the sun in time.

Note
We suggest to clean the Filter components every 2-3 weeks for better cleaning; Please make sure to dry the Filter components completely before use them, or the water and moisture would effect the working and lifespan of machine's electric parts.

Clean the Roller brush

Take out the Roller brush and clean the hair and other foreign matters on the Roller brush by the Hair cleaning tool and dry it by cloth; if it was too dirty, please wash it and eave to dry it in a well-ventilated place under the sun.

Product storage

Fix the Wall mount to the wal with nails;
Lock the floor brush and fix the machine to the wall mount;
Attach cleaning accessories to wal mount.

Maintenance

• Do not carry out any maintenance or repair work other than that shown and described in this Operating Manual
• Store the machine indoors. Do not use or store it below 37.4°F (3°C). Ensure the machine is at room temperature before operating.
• Clean the machine only with a dry cloth. Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the machine.

When using the Lubluelu vacuum cleaner, basic precautions should always be followed. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

1. Please use the original parts for the machine, do not use other branded or no branded parts without the permission of the manufacturer. If using non original parts causes the machine to malfunction, the warranty service will be automatically ended. The manufacturer is not responsible for any loss of life or property.
2. Please check if the product is damaged or the accessories are not completely received after unpack.
3. Do not use with damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to the manufacturer.
4. Children below 15 years and incapacitated persons should use this machine under the supervision of their guardians.
5. When a fault occurs, the Power adapter should be pulled out immediately and the defective product should not be placed in working status.
6. Please do not disassemble and repair al the electric parts including but not limited motors, battery and Power adapter, which is easy to damage the machine and cause other insecurity.

Prohibited sign	Any content with the logo means being prohibited, otherwise it may cause damage to the product or endanger the personal safety of the user.
Warning sign	All contents with the logo means it must be handled in strict accordance with the requirements, otherwise it may cause damage to the product or endanger the personal safety of the user.

This product is for household use only. Do not use this product outdoors.

Children below 15 years are not allowed to use it a one to avoid dangers like electric shock.

Please do not let the vacuum cleaner too close to the heat source and other high temperature objects, lest plastic deformation, It will affect the use of the vacuum cleaner.

When using the vacuum cleaner, please pay attention to the installation of various filter parts, do not use the vacuum cleaner when there is no filter accessories.

Please do not use vacuum cleaner to suck cement, gypsum powder, wa powder, starch and other sma particles, otherwise it will cause vacuum cleaner filter parts blockage, motor burn out and other faults, if suction of the above small particles, please timely processing filter parts.

Please don't use the vacuum cleaner to suck burning cigarette butts, so as to avoid danger. Please do not suck detergent, kerosene, gasoline, paint, sewage and other liquids, in case the liquid enters the motor and causes motor failure.

Please do not suck hair group, paper group and other easy to block the suction mouth and air duct objects, such as suck in the air duct, should be promptly cleaned to avoid damage to the machine.

Please do not press heavy weights on the machine or tread on the machine.

After 5-6 hours of charging time, please unplug the charger from the socket and keep it properly. Avoid children taking it away

When cleaning the vacuum cleaner, please use the wet cloth with water or neutral detergent, do not use gasoline, banana oil, etc., or it will cause shell crack and fade

Troubleshooting

Note:
In any other cases or if the solutions explained above can not solve the problem, please contact us via support@lubluelu.com or visit our website lubluelu.com for further support.

Important Safety Instructions

READ ALL INSTRUCTIONS BEFORE USE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

Do not use in rain or leave outdoors while raining.

Basic safety precautions should a ways be observed when using an electrical appliance, including the fol owing to reduce the risk of fire, electrical shock, or injury.

Personal Safety:

1. Store indoors in a dry place out reach of children;
2. Always use responsibly. This appliance can be used by children aged from 15 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved;
3. Don't let children play with the appliance; supervise children using or maintaining the appliance;
4. Use on y manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury;
5. Take extra care when cleaning stairs;
6. Keep the appliance and accessories away from hot surface;
7. Do not block the appliances openings or hinder air flow, keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body);
8. Particularly keep hair away from openings and moving parts;

Electrical Safety:

1. Only use batteries and chargers supplied by the manufacturer;
2. Never modify the charger in any way;
3. The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate;
4. A charger that is suitable for one type of battery may create a risk of fire when used with another battery;
5.
   Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock,
6. Do not abuse the charger cord,
7. Never carry the charger by the cord;
8. Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect;
9. Don't wrap the cord around the charger when storing;
10. Keep the charger cord away from hot surfaces and sharp edges;
11. The supply cord can not be replaced. If the cord is damaged, the charger should be discarded and replaced;
12. Do not handle the charger or the appliance with wet hands;
13. Do not store or charge the appliance outdoors;
14. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Attention:

1. Before using the appliance and after any impact/ check for signs of wear of damage and repair if necessary;
2. Do not use the appliance if any part is damaged or defective;
3. Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations; Repairs by unqualified persons could be dangerous;
4. Never modify the appliance in any way as this may increase the risk of personal injury;
5. Only use replacement parts or accessories provided or recommended by manufacturer.

Intended use:

1. This appliance has been designed for domestic dry vacuum cleaning only;
2. Do not pick up liquids or use on wet surfaces;
3. Do not pick up anything that is flammable, burning or smoking;
4. Use only as described in this manual,
5. Don't use on concrete, tarmacadam or other rough surfaces.

1. Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth;
2. Never immerse the unit in water and do not clean in a dish washer.

Warranty

WARRANTY SERVICE
Register: Highly recommend you to register your machine on Lubluelu official website and enjoy exclusive benefits. Failure to register your product won't diminish your warranty rights.
If your machine is not functioning properly, please email us: support@lubluelu.com
