Summary of Contents for lubluelu KB-H009

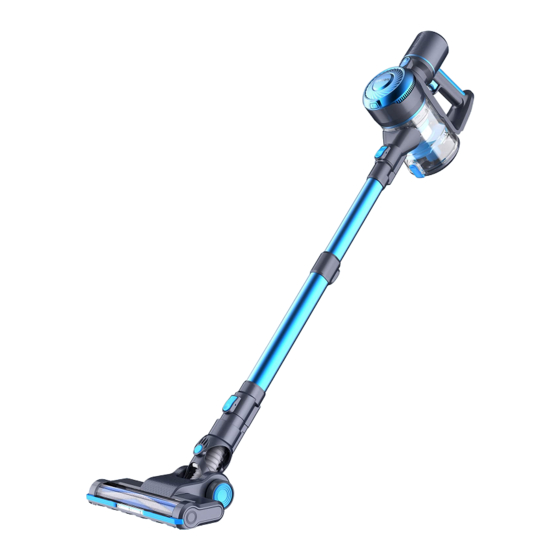

- Page 2 Instruction Manual Handy Cordless Vacuum Cleaner Manual Make Your Daily Cleaning Easy Model Number: KB-H009...
-
Page 3: Table Of Contents
Contents Important Safety Instructions---------------------------( 01 ) Product Instructions--------- ----------------------------( 05 ) Accessory Instructions----------------------------------( 06 ) Assembly-----------------------------------------------( 07 ) Product Operation--------------------------------------( 09 ) Maintenance--------------------------------------------( 13 ) -
Page 4: Important Safety Instructions
Important Safety Instructions IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. Do not use in rain or leave outdoors while raining. WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury. - Page 5 Electrical Safety: 1. Only use batteries and chargers supplied by the manufacturer; 2. Never modify the charger in any way; 3. The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate; 4.
- Page 6 3. In an emergency situation contact professional help immediately; 4. Leaks from the battery can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid that gets on skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention.
- Page 7 Intended use: 1. This appliance has been designed for domestic dry vacuum cleaning only; 2. Do not pick up liquids or use on wet surfaces; 3. Do not pick up anything that is flammable, burning or smoking; 4. Use only as described in this manual; 5.
-
Page 8: Product Instructions
PRODUCT INSTRUCTIONS Product Parts introduction: Speed button Battery indicator Battery release button light Switch button(On/Off) Dustbin Dust release button Metal tube release button Retractable metal tube Extend-retract tube button Motorized brush release button Motorized floor brush Long suction nozzle Soft dusting brush Wall mount Power adapter Hair cleaning tool... -
Page 9: Accessory Instructions
Accessory Instructions Direct-drive LED multi-tasker power brush Direct-drive technology increases the cleaning efficiency and creates a highly dynamic operation, very effective for agitating dirt embedded in the carpet, easy to clean fine dust and debris. Ideal for both hard floors and carpets. Long suction nozzle For corners, niches and other hard-to-reach places, such as car seat and mat, picture frame, etc. -
Page 10: Assembly
Assembly Install the Retractable metal tube Insert the Retractable Press the Release button metal tube. and remove tube. Install the Motorized floor brush Insert the Motorized Press the Release button and floor brush. remove Motorized floor brush. Install the Roller Brush Rotate counterclockwise Release Take out the Slot, then take Slot with coin or key. - Page 11 Install Filter Components Empty the Dustin by pressing Release button. Rotate the filter to the left to remove it. Separate dusbin assembly from the maschine by pressing the release button. Rotate it to the left to take the cover of dustbin and remove the sponge and hepa.
-
Page 12: Product Operation
PRODUCT INSTRUCTIONS Start to Work Press the Swith button, the vacuum press the Switch button again and the machine will start to work; vacuum machine will stop to work; Status indication Dust Clogging Indicator Light Choose the MIN/MID/MAX Mode of Vacuum cleaner by Speed button for different floor condition. - Page 13 Press the extend-retract tube button with one hand, extending or retracting to choose the suitable vacuum cleaner height for more comfortable cleaning with the other hand; Battery charging: Three Ways to charge the Vacuum cleaner: 1.Charge the vacuum cleaner head by Power adapter; 2.Remove the Battery from the vacuum cleaner and charge it separately by Power adapter;...
- Page 14 2. When the Battery indicator is always on and no longer flashing, it means that the machine is fully charged. How to empty the Dustbin Press the Dustbin release button Note: 1. Please clean the Dustbin when the dust reaches its MAX level; 2.
- Page 15 Clean the Roller brush Take out the Roller brush and clean the hair and other foreign matters on the Roller brush by the Hair cleaning tool and dry it by cloth; if it was too dirty, please wash it and leave to dry it in a well-ventilated place under the sun. Product storage Fix the Wall mount to the wall with nails;...
-
Page 16: Maintenance
WARNING： When using the Lubluelu vacuum cleaner, basic precautions should always be followed. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 17 All contents with the logo means it must be handled in strict accordance with the requirements, otherwise it may cause damage to the product or endanger Warning sign the personal safety of the user. This product is for household use Children below 15 years are not only.
- Page 18 Please do not suck hair group, Please do not press heavy weights paper group and other easy to block on the machine or tread on the the suction mouth and air duct machine. objects, such as suck in the air duct, should be promptly cleaned to avoid damage to the machine.
- Page 19 Battery won't charge The adapter is not Use the original power adapter designed for Lubluelu 008 vacuum cleaner Check the socket and make The socket is sure it is working or change...
- Page 20 WHAT IS COVERED? Your Lubluelu machine has a 2-year warranty against original defects in material and workmanship. when used for private household purposes in accordance with the Lubluelu Instruction Manual.
- Page 21 • Use of the machine other than for normal domestic purposes, e.g. for commercial or rental purposes. • Use of parts not in accordance with the Lubluelu Instruction Manual. • Use of parts and accessories other than those produced or recommended by Lubluelu.
- Page 24 Please contact us if you need any help as following: - Technical Support - Package is NOT in perfect condition - Parts missing - Any other quality issues Email: support@lubluelu.com Website: lubluelu.com HAIWAI CONSULTING LTD 113, GloucesterPlace, Fly, London, England, W1U 6JR Email: zaoo168@hotmail.com...
