SIP HG1800CBW User Manual

Cordless battery inverter welder

Hide thumbs

page of 28

/ 28
Bookmarks

Quick Links

Download this manual

SIP Industrial Products Limited

Gelders Hall Road

Shepshed

Loughborough

Leicestershire

LE12 9NH

United Kingdom

For help or advice please

contact your distributor, or sip

directly on: Tel.: 01509 500400

Email:sales@sip-group.com or

technical@sip-group.com

www.sip-group.com

SIP HG1800CBW Cordless

Battery Inverter Welder

05712

Need help?

Do you have a question about the HG1800CBW and is the answer not in the manual?

Questions and answers

Summary of Contents for SIP HG1800CBW

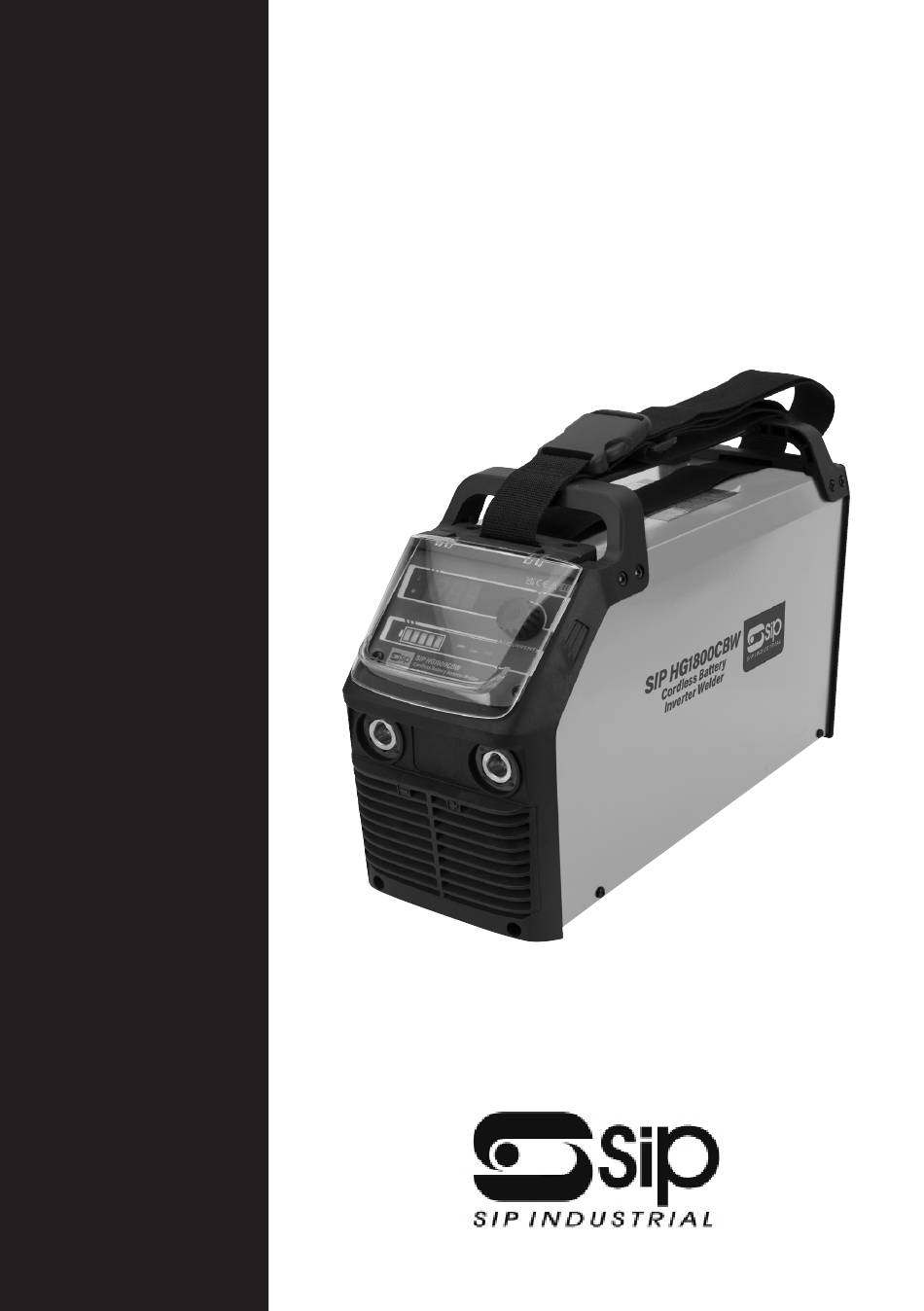

Page 1 SIP HG1800CBW Cordless SIP Industrial Products Limited Gelders Hall Road Shepshed Battery Inverter Welder Loughborough Leicestershire LE12 9NH 05712 United Kingdom For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email:sales@sip-group.com or technical@sip-group.com www.sip-group.com...
Page 3 CONTENTS Page No. Description Safety Instructions Guarantee / Battery Information Your Welder Technical Specification Operating Instructions Maintenance Exploded Drawing Part List UK - Declaration Of Conformity EU - Declaration Of Conformity...
Page 4 SAFETY INSTRUCTIONS Danger / Caution: This image indicates risk of personal injury and/or the possibility of damage. Warning: This image indicates risk of electrical injury or damage! Note: This image indicates supplementary information. Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the item.
Page 5 14. USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or SIP directly for recommended accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and will invalidate any warranty you may have.
Page 6 SAFETY INSTRUCTIONS Lithium Battery • Always charge the product indoors and store in a cool dry place out of the reach of children. Do not use the charger outdoors. • Use only the charger provided with your unit. The use of any other charger could permanently damage the battery.
Page 7 GUARANTEE This item is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs, failure to regularly clean your item will shorten its working life and reduce performance.
Page 8 YOUR WELDER Item No. Description Item No. Description Air Outlet Charging port Negative Output Socket Handle Control Panel On/Off Switch Positive Output Socket Fan / Air Inlet...
Page 9 TECHNICAL SPECIFICATION Model No. 05712 Battery Type Lithium Ion Battery Capacity 740 Wh AC Charging voltage 230V ± 10% Charging Time 1.5h Rated Voltage of battery Charging current Welding Mode MMA & TIG Welding Current 10~180A : Battery 10~150A : Battery Range Power >40% Power ≤40%...
Page 10 OPERATING INSTRUCTIONS Overview 1. Built in high-performance lithium-ion battery, convenient for use in various environments. 2. Extremely low weight and versatile. 3. MMA, VRD and TIG welding modes are available to meet different welding requirements. Charger Layout Item No. Description Item No.
Page 11 OPERATING INSTRUCTIONS Control Panel Layout Item No. Description Item No. Description Power Indicator VRD Welding Mode Indicator Alarm Indicator TIG Welding Mode Indicator Display MMA Welding Mode Indicator Control Knob Battery Indicator Danger / Caution: Items being welded generate and hold high heat and can cause severe burns.
Page 12 OPERATING INSTRUCTIONS MMA Welding Process Select either MMA or MMA with VRD by pressing the control knob until "MMA" or "VRD" is illuminated. MMA Welding Process VRD is an added safety feature. In this mode the Open Circuit Voltage (OCV) is reduced to less than 20V DC.
Page 13 OPERATING INSTRUCTIONS MMA Welding Process 1. Turn the power switch to the on position only to check the battery level. If it is low, charge it as soon as possible, if it is good turn the welder off. 2. Make sure the On/Off Switch is OFF. 3.
Page 14 OPERATING INSTRUCTIONS Electrode Size Material Thickness Welding current 1.6 mm 1.2 - 1.6 mm 20 - 45 A 2.4 mm 1.6 - 3.5 mm 40 - 90 A 3.2 mm 3.0 - 6.0 mm 80 - 130 A 4.0 mm 5.0 - 8.5 mm 105 - 180 A Danger / Caution: Be aware that the electrode is live, simply...
Page 15 OPERATING INSTRUCTIONS 4. With the On/Off Switch in the OFF position:- 5. Connect the earth lead to the positive (+) socket. Turn the dinse plug clockwise 6. Connect the TIG Torch to the negative (-) socket. Turn the dinse plug clockwise. 7.
Page 16 OPERATING INSTRUCTIONS struck the inert gas is ionized and superheated changing its molecular structure which converts it into a plasma stream. This plasma stream flowing between the tungsten and the work piece is the TIG arc and can be as hot as 19,000°C. It is a very pure and concentrated arc which provides the controlled melting of most metals into a weld pool.
Page 17 OPERATING INSTRUCTIONS TIG Welding Filler Wire Technique Once the weld pool is established tilt the torch at about a 75° angle and move smoothly and evenly along the joint. The filler metal is introduced to the leading edge of the weld pool. The filler wire is usually held at about a 15° angle and fed into the leading edge of the molten pool, the arc will melt the filler wire into the weld pool as the torch is moved forward.
Page 18 OPERATING INSTRUCTIONS grain running lengthwise and thus grinding crosswise is “grinding against the grain.” If electrodes are ground crosswise, the electrons have to jump across the grinding marks and the arc can start before the tip and wander. Grinding longitudinally with the grain, the electrons flow steadily and easily to the end of the tungsten tip.
Page 19 OPERATING INSTRUCTIONS Tungsten Diameter at Constant Included Current Range Current Range Diameter the Tip Angle - Degrees Pulsed 1.0 mm 0.250 mm 20°C 5~30 A 5~60 A 1.6 mm 0.500 mm 25°C 8~50 A 5~100 A 1.6 mm 0.800 mm 30°C 10~70 A 10~140 A...
Page 20 MAINTENANCE In order to guarantee safe and proper operation of welding machines, they must be maintained regularly. Good understanding of the maintenance procedure of welding machines will enable customers to carry on simple examination and inspections. Do your best to reduce the fault rate and repair times of welding machines to lengthen service life of arc welding machine.
Page 21 MAINTENANCE Quarter- Check whether the actual current displayed is actually the same as yearly the achieved output. If not, contact SIP Customer Service. examination Measure the insulating impedance among the main circuit, PCB and case, if Yearly it below 1MΩ, insulation is thought to be damaged and need to change, and examination need to change or strengthen insulation.
Page 22 TROUBLESHOOTING If there are some simple troubles with the welding machine, you can consult the following Chart. Troubles Reasons Solutions Test and repair the The power light damaged Turn on the power inside circuit of power or connection is not good. source, and fan works, light.
Page 23 TROUBLESHOOTING The welding current Increase the welding The penetration of adjusted too low. current. molten pool is not The arc force adjusted enough (MMA). Increase the arc force. too small. Use the shelter from Airflow disturbance airflow Adjust the electrode The electrode angle eccentricity...
Page 24 EXPLODED DRAWING...
Page 25 PART LIST Item No. Description 05712 Fan 1 - Top 05712 Fan 2 - Bottom 05712 Output inductor 05712 Main PCB 05712 Power PCB 05712 Hall current sensor 05712 Diode module 05712 Control PCB 05712 Charging socket isolation PCB 05712 Metal casing 05712 Front Plastic cover 05712 Back Plastic cover 05712 Strap...
Page 26 England As the manufacturer within the UK, England, Scotland & Wales, declare that the SIP HG1800CBW Battery Powered Inverter Welder - SIP Part. No. 05712 Conforms to the requirements of the following regulation(s), as indicated. Electrical Equipment (Safety) Regulations 2016...
Page 27 Republic of Ireland As the manufacturer’s authorised representative within the EC declare that the SIP HG1800CBW Battery Powered Inverter Welder - SIP Part. No. 05712 Conforms to the requirements of the following directive(s), as indicated. 2014/35/EU - Low Voltage Directive...
Page 28 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP Please dispose of packaging for the product in a DIRECTLY ON: responsible manner. It is suitable for recycling. Help TEL: 01509 500400 to protect the environment, take the packaging to EMAIL: sales@sip-group.com or...

This manual is also suitable for:
