SIP Weldmate T251P User Manual
  1. Manuals
  2. Brands
  3. SIP Manuals
  4. Welding System
  5. Weldmate T251P
  6. User manual

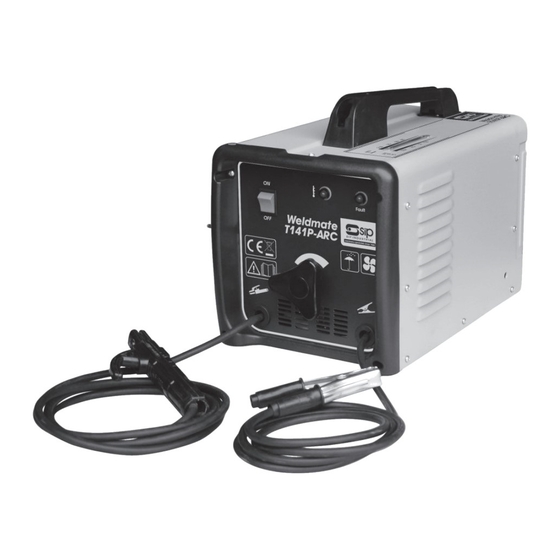

SIP Weldmate T251P User Manual

Arc welder
Hide thumbs

Advertisement

Table of Contents

Enlarged version
Please dispose of packaging for the product in a responsible
manner. It is suitable for recycling. Help to protect the
Weldmate
environment, take the packaging to the local amenity tip
and place into the appropriate recycling bin.
Arc Welder
T141P - T251P
Never dispose of electrical equipment or batteries in with
your domestic waste. If your supplier offers a disposal facili-
ty please use it or alternatively use a recognised re-cycling
agent. This will allow the recycling of raw materials and help
protect the environment.
FOR HELP OR ADVISE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR
SIP DIRECTLY ON:
TEL: 01509500400
05721, 05725, 05741 & 05761
EMAIL: sales@sip-group.com or technical@sip-group.com
www.sip-group.com
Please read and fully understand the instructions in this manual
before operation. Keep this manual safe for future reference.
Ref: 010814
32
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Weldmate T251P and is the answer not in the manual?

Questions and answers

Daniel Ambani
January 23, 2025

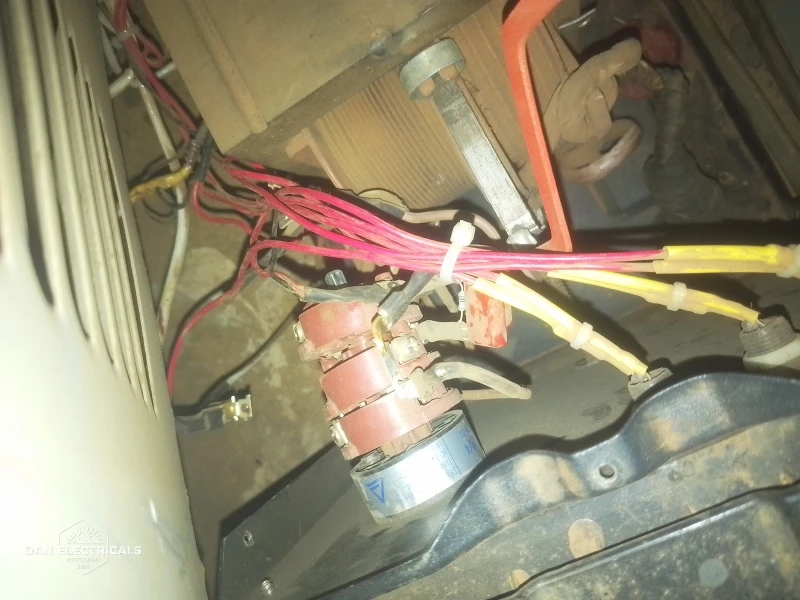

How to connect it's winding direct to power Incase of switch failure

User image 6791e210c7a3b
0

Subscribe to Our Youtube Channel

Related Manuals for SIP Weldmate T251P

Summary of Contents for SIP Weldmate T251P

  • Page 1 FOR HELP OR ADVISE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP DIRECTLY ON: TEL: 01509500400 05721, 05725, 05741 & 05761 EMAIL: sales@sip-group.com or technical@sip-group.com www.sip-group.com Please read and fully understand the instructions in this manual before operation. Keep this manual safe for future reference.

  • Page 2: Declaration Of Conformity

    Personal Protective Equipment Directive 2008/35/EC RoHS Directive And the relevant harmonised standard(s), including EN 60794-1:2012 EN 60794-6:2011 EN 60794-10 EN 379:2003 EN 169:2002 EN 175: 1997 Signed: …………………………………... Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd Date: 02/06/2014.

  • Page 3: Table Of Contents

    PARTS LIST WELDMATE T251P (05725) CONTENTS Ref. No. Description Sip Part No. Handle WE01-00057 Page No. Description Cover WE01-00069 Safety Symbols Used Throughout This Manual Mains lead WE01-00059 Cable clamp WE01-00033 Safety Instructions Rear panel WE01-00034 Electrical Connection Fan motor...

  • Page 4: Safety Symbols Used Throughout This Manual

    SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL EXPLODED DRAWING WELDMATE T251P (05725) Danger / Caution: Indicates risk of personal injury and/or the possibility of damage. Warning: Risk of electrical injury or damage! Note: Supplementary information. SAFETY INSTRUCTIONS IMPORTANT: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the arc welder.
  • Page 5 USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or Clear window WE01-00052 SIP directly for recommended accessories. Follow the instructions that accompany the Handle cap WE01-00068 accessories. The use of improper accessories may cause hazards and will invalidate...
  • Page 6 SAFETY INSTRUCTIONS….cont EXPLODED DRAWING WELDMATE T211P (05721) signed. DO NOT OPERATE THE ARC WELDER IN EXPLOSIVE ATMOSPHERES: Do not use the arc welder in the presence of flammable liquids, gases, dust or other combustible sources. Arc welding will create sparks which can ignite the dust or fumes. DO NOT EXPOSE THE ARC WELDER TO RAIN OR USE IT IN WET CONDITIONS: Water enter- ing the arc welder will greatly increase the risk of electric shock.
  • Page 7 PARTS LIST WELDMATE T161P (05761) SAFETY INSTRUCTIONS….cont Ref. No. Description Sip Part No. ELECTRIC SHOCK Handle WE01-00030 Keep your body and clothing dry. Never work in a damp area without ade- quate insulation against electrical shock, stay on a dry duck board, or rubber...
  • Page 8 SAFETY INSTRUCTIONS….cont EXPLODED DRAWING WELDMATE T161P (05761) ed by radiant or conducted heat. After the work is done, check that the area is free of sparks, glowing embers and flames. An empty container that has held combustibles, or that can produce flamma- ble or toxic vapours when heated, must never be welded, unless the container has first been cleaned.
  • Page 9 PARTS LIST WELDMATE T141P (05741) SAFETY INSTRUCTIONS….cont VENTILATION Ref. No. Description Sip Part No. Ventilation must be adequate to remove the smoke and fumes during welding Handle WE01-00030 (see the relevant safety standard for acceptable levels). Cover WE01-00031 Toxic gases may be given off when welding, especially if zinc or cadmium...
  • Page 10 SAFETY INSTRUCTIONS….cont EXPLODED DRAWING WELDMATE T141P (05741) When using the arc welder always ensure the operator as well as those in the area use a welding mask with the correct shade filter lens. Some metals and metal composites have the potential to be highly toxic;...

  • Page 11: Electrical Connection

    WIRING DIAGRAM ELECTRICAL CONNECTION WARNING! It is the responsibility of the owner and the operator to read, understand T141P & T161P and comply with the following: You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other connectors for wear or damage.
  • Page 12 Note: If an extension lead is required in order to reach the mains supply; Note: If none of the above solutions work then contact your local distributor ensure that this too is rated for the correct voltage and fuse rating. for repair, or contact SIP technical for more advise.

  • Page 13: Guarantee

    Remove any excess weld / slag with the wire brush / hammer. These SIP arc welders are covered by a 12 month parts and labour warranty covering IMPORTANT INFORMATION: These units can be set to deliver different output currents at failure due to manufacturers defects.

  • Page 14: Technical Specification

    Model Weldmate T141P Weldmate T161P Weldmate T211P Weldmate T251P The current control is operated by rotating the large knob on the front of the welder; Rotate the knob clockwise to increase the current and anticlockwise to reduce the Input Voltage...

  • Page 15: Getting To Know Your Arc Welder

    ASSEMBLY INSTRUCTIONS….cont GETTING TO KNOW YOUR ARC WELDER T141 & T161 FITTING THE WHEEL KIT & FRONT FOOT The Weldmate T141P and T161P do not come with a wheel kit, and Note: can not be fitted with one. WELDMATE T211P & T251P Fit a circlip over the slot at one end of the axle and slide a wheel from the op- posite end the axle so that it hits the circlip.
  • Page 16 GETTING TO KNOW YOUR ARC WELDER T211 & T251 ASSEMBLY INSTRUCTIONS WELDING MASK The welding mask does not provide unlimited body protection. Use the welding mask only for eye and face protection from sparks, spatters and harmful rays from the arc welder. The filter lens is not suitable for any other application or process.

This manual is also suitable for:

Weldmate t141p

Table of Contents
