SIP T1400 Manual

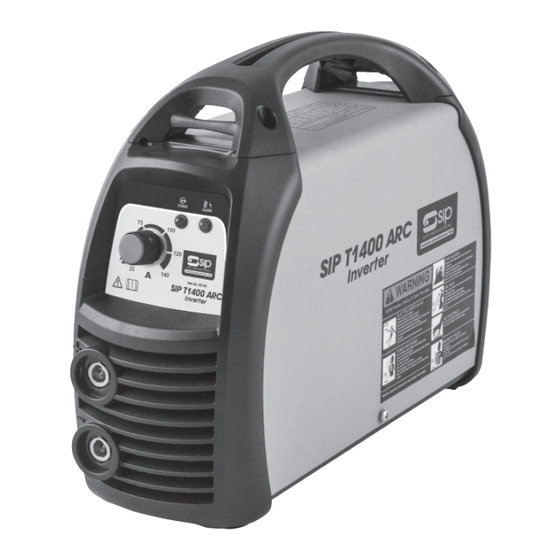

Arc inverter welder

Hide thumbs

Table Of Contents

Quick Links

Enlarged version

Please dispose of packaging for the product in a responsible

manner. It is suitable for recycling. Help to protect the

T800 / T1400 / T1600

environment, take the packaging to the local amenity tip

and place into the appropriate recycling bin.

Arc Inverter Welder

Never dispose of electrical equipment or batteries in with

your domestic waste. If your supplier offers a disposal facili-

ty please use it or alternatively use a recognised re-cycling

agent. This will allow the recycling of raw materials and help

protect the environment.

FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR,

OR SIP DIRECTLY ON:

TEL: 01509500400

05703, 05705 & 05707

EMAIL: sales@sip-group.com or technical@sip-group.com

www.sip-group.com

Please read and fully understand the instructions in this manual

before operation. Keep this manual safe for future reference.

Ref: 040817

Table of Contents

Need help?

Do you have a question about the T1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIP T1400

Page 1 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the T800 / T1400 / T1600 environment, take the packaging to the local amenity tip and place into the appropriate recycling bin.
Page 2: Declaration Of Conformity
England As the manufacturer's authorised representative within the EC declare that the SIP T800 ARC Inverter Welder - SIP Part. No. 05703 T1400 ARC Inverter Welder - SIP Part. No. 05705 T1600ARC Inverter Welder - SIP Part. No. 05707 Conforms to the requirements of the following directive(s), as indicated.
Page 3: Table Of Contents
Operating Instructions Maintenance Troubleshooting Wiring Diagram - T800 (05703) Wiring Diagram - T1400 (05705) / T1600 (05707) Exploded Drawing / Parts List T800 (05703) Exploded Drawing / Parts List T1400 (05705) Exploded Drawing / Parts List T1600 (05707) Declaration of Conformity Ref.
Page 4: Handle
SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL EXPLODED DRAWING / PARTS LIST T1400 (05705) Danger / Caution: Indicates risk of personal injury and/or the possibility of damage. Warning: Risk of electrical injury or damage! Note: Supplementary information. SAFETY INSTRUCTIONS Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the invert- er welder.
Page 5: Cover
USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or Main Control PCB WE07-00055 Fan Fixing Plate WE07-00067 SIP directly for recommended accessories. Follow the instructions that accompany the Power Transformer WE07-00056 Plastic Rear Cover WE07-00068 accessories. The use of improper accessories may cause hazards and will invalidate...
Page 6 SAFETY INSTRUCTIONS….cont WIRING DIAGRAM designed. T1400 (05705) & T1600 (05707) DO NOT OPERATE THE INVERTER WELDER IN EXPLOSIVE ATMOSPHERES: Do not use the inverter welder in the presence of flammable liquids, gases, dust or other combustible sources. Inverter welding will create sparks which can ignite the dust or fumes.
Page 7 WIRING DIAGRAM SAFETY INSTRUCTIONS….cont ELECTRIC SHOCK T800 (05703) Keep your body and clothing dry. Never work in a damp area without ade- quate insulation against electrical shock, stay on a dry duck board, or rubber mat when dampness or sweat can not be avoided. Sweat, sea water or mois- ture between the body and an electrically ’hot’...
Page 8 Protect other nearby personnel from arc rays and hot sparks with a suitable non- flammable partition. Alarm light on. Overheated. Allow the to cool. Note: If none of the above solutions work then contact your local distributor for repair, or contact SIP technical for more advise.
Page 9 MAINTENANCE SAFETY INSTRUCTIONS….cont VENTILATION Clear dust from the machine at regular intervals, if used in a dirty environment the machine should be cleaned once a month. Ventilation must be adequate to remove the smoke and fumes during welding Check all connections are clean and tight, if there is any oxidization clean the (see the relevant safety standard for acceptable levels).
Page 10: Dinse Socket
SAFETY INSTRUCTIONS….cont OPERATING INSTRUCTIONS….cont PREPARATION FOR WELDING When using the Inverter welder always ensure the operator as well as Clean the area to be welded, and the earthing point of all rust, paint and con- those in the area use a welding mask with the correct shade filter taminants etc.
Page 11: Electrical Connection
Connecting to the power supply 05703 & 05705: 30-60 15-30 These SIP Inverter welders (05703 & 05705) are fitted with a standard 230v ~ 13 amp type plug. Before using the Inverter welder, inspect the mains lead and plug to ensure 50-70 50-70 that neither are damaged.
Page 12 Remove any excess weld / slag with a wire brush / hammer (not supplied). TIG WELDING You will need to purchase the following items in order to TIG weld (not supplied): TIG torch (with gas valve) - SIP Part No. 05029 Regulator Tungsten electrode...
Page 13: Guarantee
Important information: These units can be set to deliver different output currents at a These SIP Inverter welders are covered by a 12 month parts and labour warranty cov- duty cycle that is written as a percentage on page 14. This percentage represents the ering failure due to manufacturers defects.
Page 14: Technical Specification
IP21S IP21S IP21S Net Weight 2.8Kg 3.8Kg 3.8Kg Note: Only the T800 and T1400 should be operated from a 13A supply. Ref. No. Description Ref. No. Description Negative Dinse Socket Carry Handle Positive Dinse Socket On/Off Switch Note: Operation of the T1600 from a 13A supply could invalidate the war-...
