AMC GS PRO Installation Manual page 2

0 m

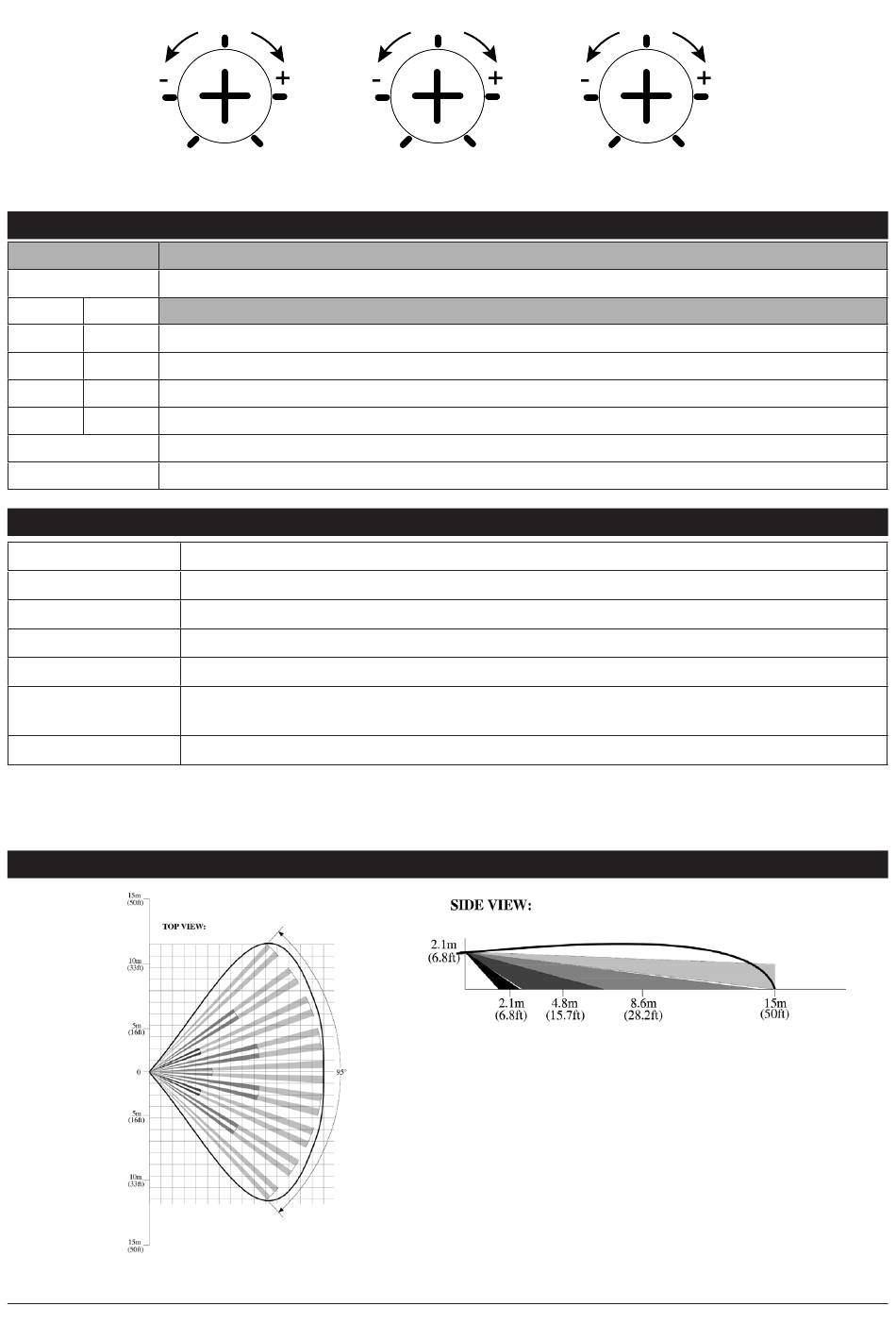

3. CONNECTIONS AND ADJUSTMENTS - DIP SWITCHES
DIP SWITCH DESCRIPTION
LED function ON/OFF led
A B
off off
Glass & shock TEST (does not activate the MIC output relay)
on off glass & shock double frequency detection (activates the MIC output relay)
off on shock (yellow LED active & MIC relay active)
on on glass (green LED active & MIC relay active)
2 PULSE PIR OFF Infrared operation - 1 pulse
2 PULSE PIR
ON Infrared operation - 2 pulses
4. TERMINALS AND TRIMMER
+ / -
MIC
PIR
C
TAMPER
Trimmer
SHOCK / GLASS
Trimmer PIR
Note: being a detector with microphone, we recommend you install the detector far from sound
sources with power particularly high.
5. LENS
www.amcelettronica.com
3.5 m
7 m
GLASS
13.8 Vdc detector power supply
microphone alarm contact
infrared alarm contact
reference common for alarms
tamper anti opening (N.C.)
Shock and glass sensitivity
(" + " _ greater sensitivity " - " _ smaller sensitivity)
Infrared sensitivity trimmer (" + " _ greater range " - " _ smaller range)
3.5 m
7 m
0 m
SHOCK
2
6 m
2 m 12 m
INFRARED RANGE
GS PRO - Installation manual v1.0 EN-IT
