AMC GS PRO Installation Manual

INSTALLATION MANUAL
MANUALE DI INSTALLAZIONE
GS PRO
GLASS BREAK MICROPHONE DETECTOR
SENSORE MICROFONICO ROTTURA VETRI
ENGLISH
1. INTRODUCTION
GS PRO is a dual technology sensor consisting of PIR and microphone sensor for notification of impacts and
glass breakage.
It has independent adjustments for the different detection sections.
It has a maximum range of 7m for the microphone section and approximately 12m for the infrared section.
GS PRO is pet immune up to 10 kg.
Yellow LED for shock detection.
Green LED for glass detection.
Il led Rosso si attiva con un lampeggio quando il sensore va in allarme per rilevazione microfonica and is
activated for longer when the Pir sensor goes into alarm.
Jumper Gain 50%: reduces microphone sensitivity by 50%.
EOL jumper used only for Mic contact and tamper with 1K+1K internally balanced (insert all jumpers).

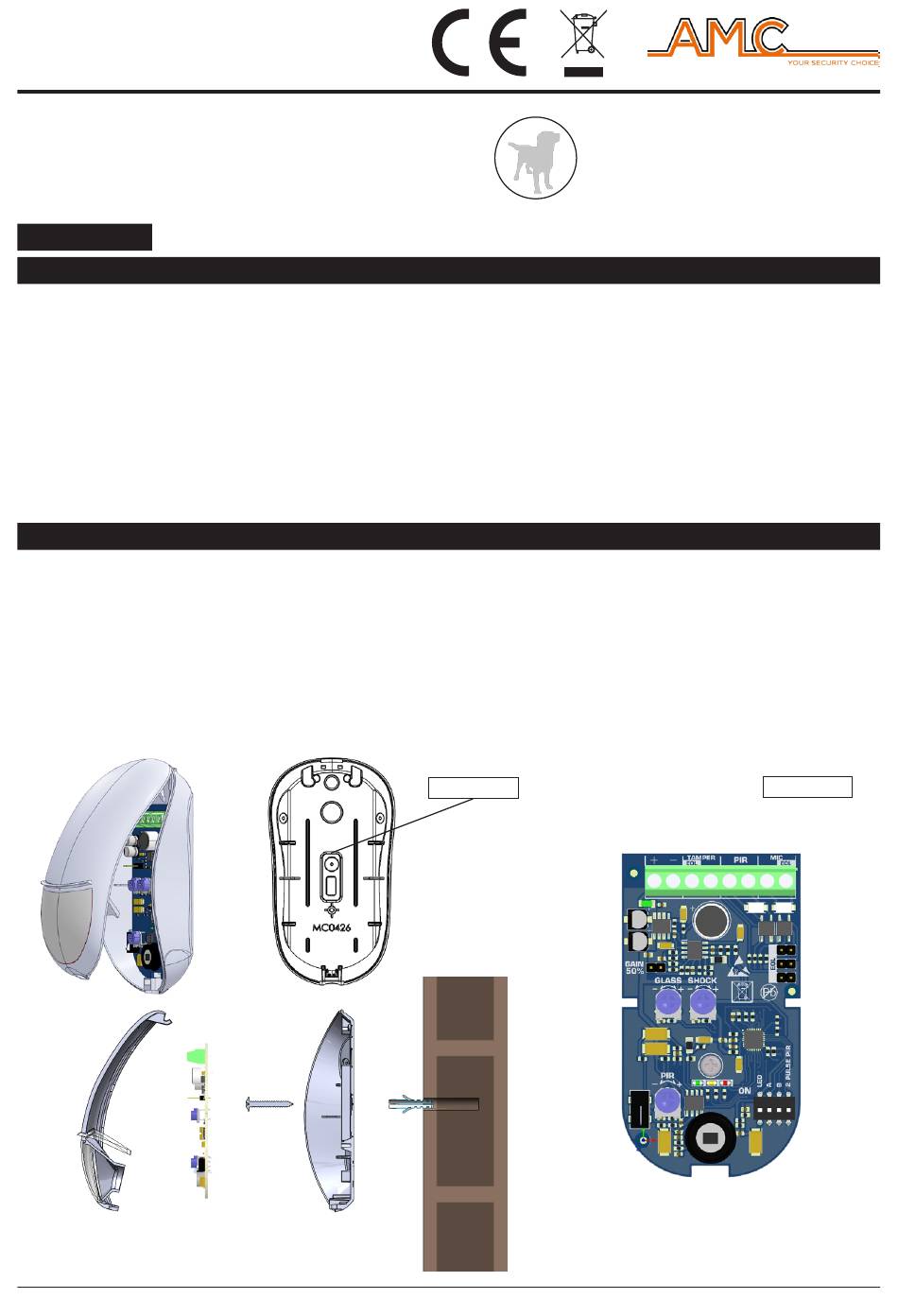

2. INSTALLATION
- Using a screwdriver, unscrew the screw under the sensor and open the cover.
- Remove the electronic board from the bottom of the cover.
- Use the pre-holes for fixing, or use the appropriate joint (optional).
- Wire the circuit following the table (4.).
Note: The recommended height from the ground for fixing is between 2m and 2.50m.
- Move the DIP-Switches to the desired position.
- Power the sensor and wait for the green LED to flash.
- Rotate the trimmers to obtain the desired calibration.
("+" _ greater flow rate "-" _ lower flow rate) then close the sensor).
www.amcelettronica.com
screw
1 GS PRO - Installation manual v1.0 EN-IT
board
