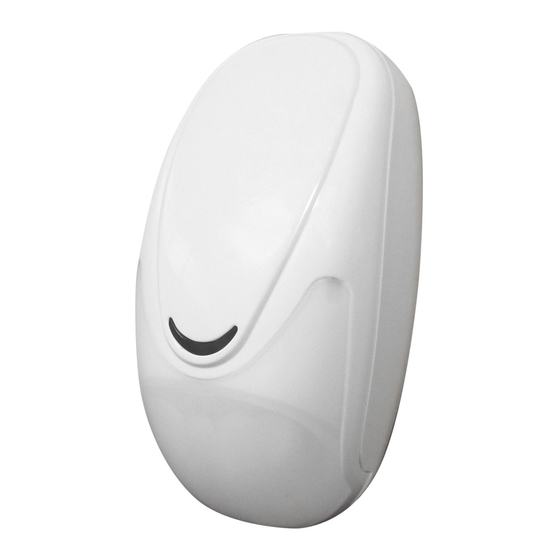

MOUSE 01
Dual Element Digital Motion Detector (dual pyro
element + microwave + anti-masking)
1. Introduction
The MOUSE 01 is a dual element digital motion detector with anti-masking function.
With its advanced signal processing algorithms and dual detection technology (PIR and MW) it is
characterized by very stable operation and low rate of false alarms. Advanced digital temperature
compensation enables operation over a wide temperature range.
The range of the MOUSE 01 detector is up to 14 meters. Special lens provides horizontal coverage
exceeding 90 degrees (29 zones in 5 levels). The detector features creep zone detection. The area of the
sensor operation is shown in the Figure 5a and 5b.
The anti-masking function is based on the microwave sensor. If the microwave sensor detects any object
in a distance of several centimeters from the detector, it is interpreted as an attempt to block the detector and
causes the opening of the NC anti-masking relay for about 2 seconds.
2. Installation of the detector
The detector should be mounted by a qualified installer, holding relevant permits and licenses (applicable and
required for a given country) for Intrusion Detection Systems.
The latch system used in the enclosure of the detector eliminates the need for screw connections, so that the
detector installation is simple and does not take much time.
Follow the basic rules for the installation of Intrusion Detection Systems (pay attention, among others, not
to soil or damage
towards strong light sources).). The optimum mounting height of the MOUSE 01 detector is 2 meters.

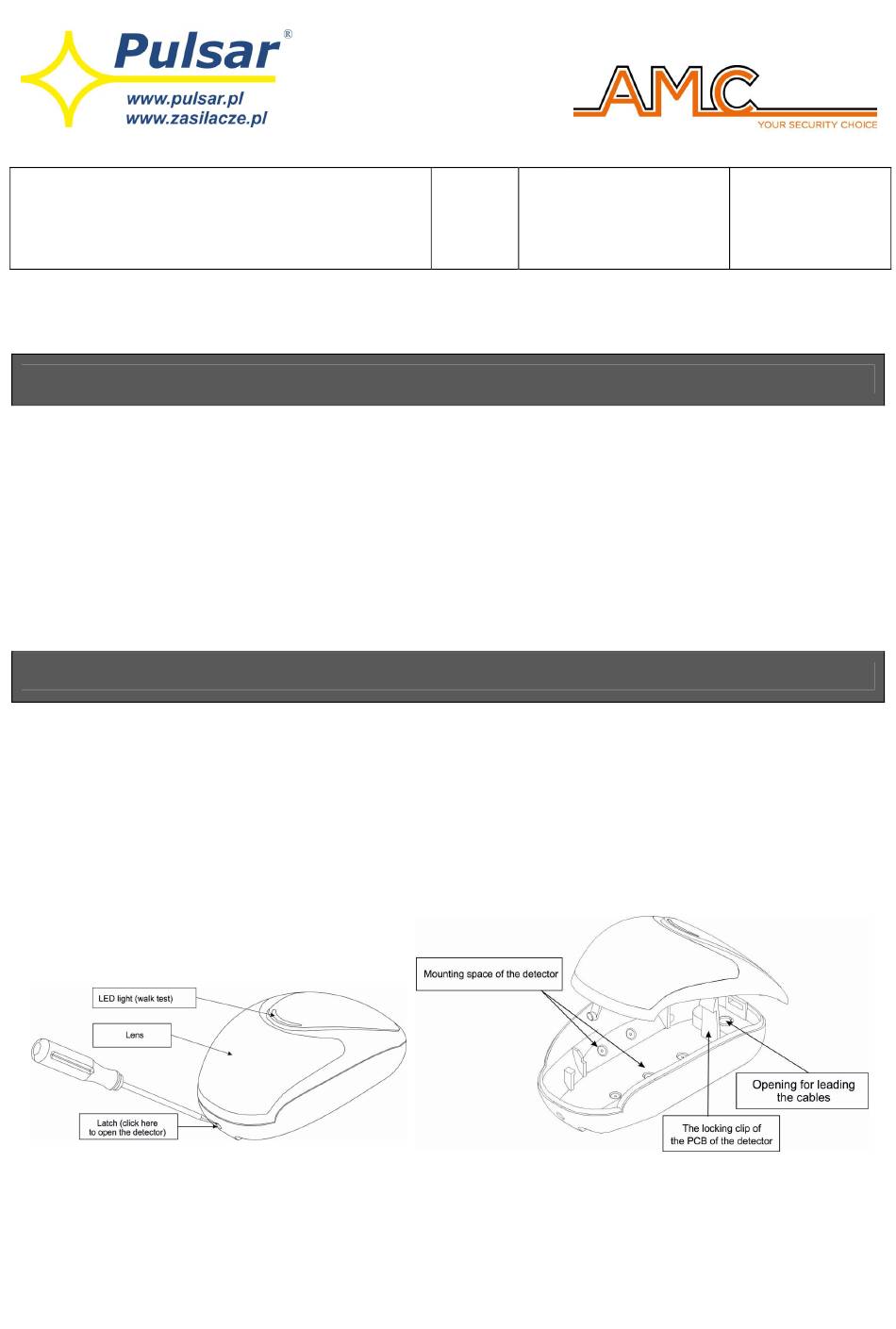

Main view
Edition: 3 from 07.03.2014
Supersedes: 2 from 24.02.2014
the pyroelectric
Fig. 1a
CODE In accordance with the
MU01 EN 50131-2-4 standard
element, do not
Inside view
MANUAL EN
point the
Fig. 2 b
detector
