Summary of Contents for Monoprice Blackbird 36743

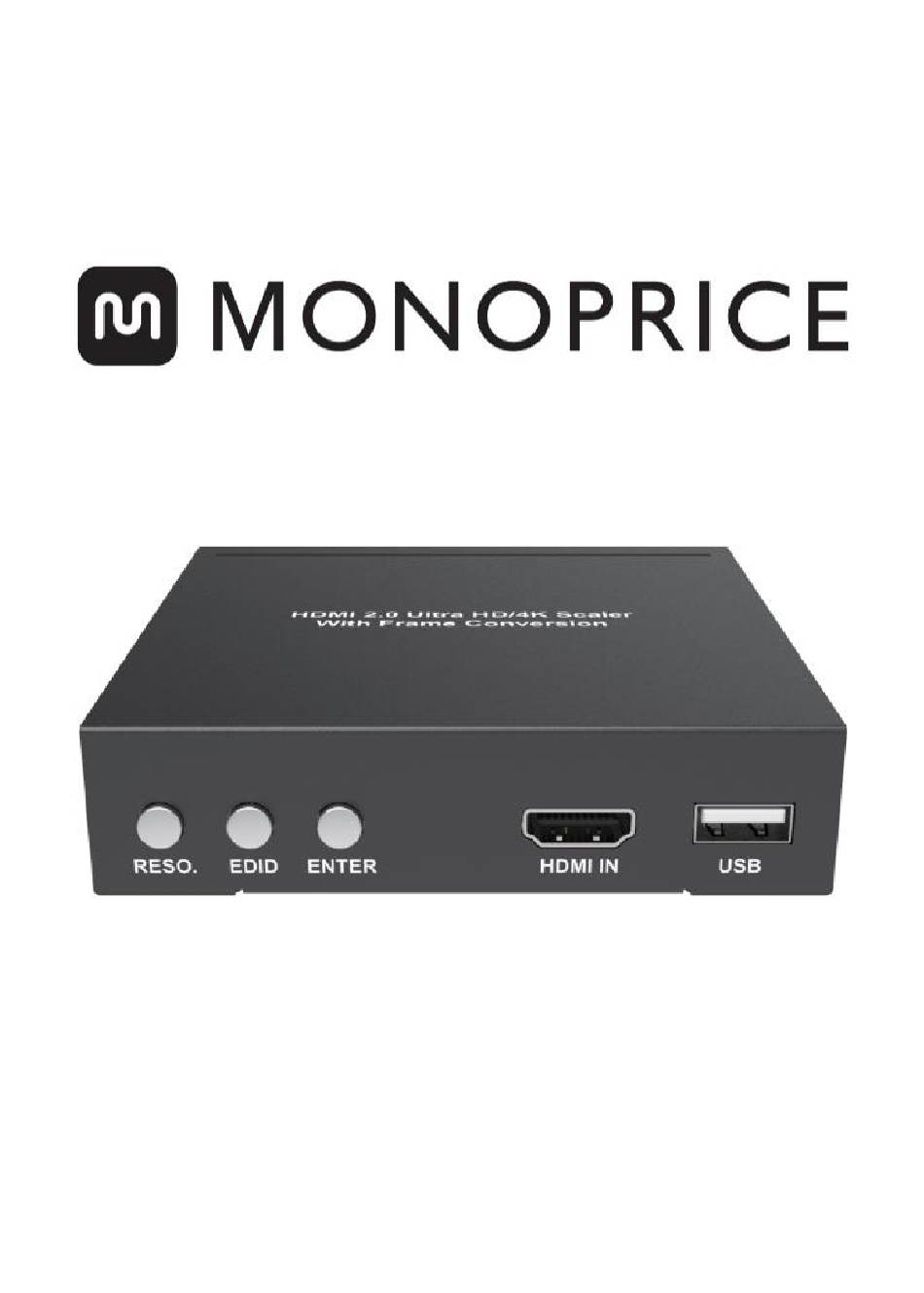

- Page 1 Blackbird™ 4K HDMI® Scaler P/N 36743 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 3 Before plugging the unit into a power outlet, ensure that the outlet provides the same type and level of power required by the device. Unplug this device from the power source when not in use. Take care to prevent damage to the power cord. Do not ...
- Page 4 INTRODUCTION This Blackbird™ 4K HDMI® Scaler with Frame Conversion is a high performance HDMI video scaler. It can accept input resolutions from 480i to 4K@60Hz (4:4:4) and can upscale or downscale the video to any resolution from 1024x768@60Hz to 4K@60Hz (4:4:4). It is compliant with the HDMI 2.0b and HDCP®...
-
Page 5: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 6: Product Overview
PRODUCT OVERVIEW Front Panel RESO.: Momentarily press the RESO. button to switch the output resolution. Press and hold the RESO. button for 5 seconds to set the output resolution to 720p@60Hz. EDID: Momentarily press the EDID® button to change the EDID value. - Page 7 Rear Panel HDMI: HDMI® output port for connecting a video display. OPTICAL: Digital optical audio output for connecting an external amplifier or receiver. AUDIO: 3.5mm stereo analog audio output for connecting headphones or powered speakers. RS-232: Euroblock terminal for connecting a computer for RS-232 serial control.
-
Page 8: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 9: Supported Input Resolutions
SUPPORTED INPUT RESOLUTIONS 640x480@60Hz 720x480i@60Hz 720x480p@60Hz 720x576i@50Hz 720x576p@50Hz 800x600@60Hz 1024x768@60Hz 1152x864@75Hz 1024x768@75Hz 1280x768@60Hz 1280x960@60Hz 1280x1024@60Hz 1365x1024@60Hz 1600x1200@60Hz 1680x1050@60Hz 1856x1392@60Hz 1920x1080@60Hz 1920x1200@60Hz 1920x1440@60Hz 3840x2160@24Hz 3840x2160@30Hz 3840x2160@25Hz 4096x2160@24Hz 4096x2160@25Hz 4096x2160@30Hz 3840x2160@50Hz 3840x2160@60Hz 4096x2160@50Hz 4096x2160@60Hz... -
Page 10: Supported Output Resolutions
SUPPORTED OUTPUT RESOLUTIONS 1024x768@60Hz 1280x720@50Hz 1280x720@60Hz 1280x800@60Hz 1360x768@60Hz 1400x1050@60Hz 1600x1200@60Hz 1680x1050@60Hz 1920x1200@60Hz 1920x1080@50Hz 1920x1080@60Hz 3840x2160@30Hz 3840x2160@50Hz 3840x2160@60Hz 3840x2160@25Hz UPDATING THE SOFTWARE In the event that a software update is made available, perform the following steps to update your scaler's software. Download the zip file with the software update, then extract the MERGE.bin file to the root directory of a USB flash drive. -
Page 11: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 12 Bandwidth 18Gbps 640x480@60Hz to Input Resolutions 4096x2160@60Hz 1024x768@60Hz to Output Resolutions 3840x2160@60Hz RGB, YCbCr 4:4:4, Color Space YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 10-bit, 12-bit Input Power 12 VDC, 1A AC Adapter Input Power 100 ~ 240 VAC, 50/60Hz Power Consumption Up to 8 watts Operating Temperature +32 ~ +104°F (0 ~ +40°C)
-
Page 13: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right... - Page 14 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
