Summary of Contents for Zline TOUCHSTONE RWDO-GS-24

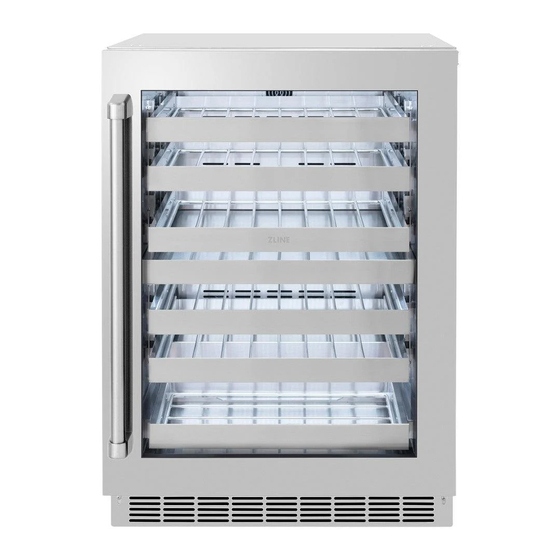

- Page 1 Installation and User Manual TOUCHSTONE REFRIGERATION RWDO-GS-24, RWDPO-24, RBSO-GS-24, RBSPO-24, RBSO-ST-24, RDSO-ST-24, & RDSPO-24 MODELS www.zlinekitchen.com...
- Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
- Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
- Page 4 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ......1 BEFORE INSTALLATION ......... . 6 Product Specifications .
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • IMPORTANT: Read all instructions before using this appliance. Use this appliance only for its intended purpose as described in this manual. Always exercise basic safety precautions, as described below. After reading this manual, store it in an accessible place where users and services can easily reference it.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not damage the refrigerant circuit. WARNING Do not use electrical appliances inside the food storage compartments of the appliance unless they are explicitly recommended by the manufacturer. WARNING DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS • Never use flammable spray cans or leave flammable substances near the unit. Sparks from electrical switches could result in an explosion and/or fire. • If a combustible gas is present near the appliance, turn off the source of the gas, then open the windows and doors to allow the gas to dissipate.
- Page 8 • Disconnect the unit if it is behaving abnormally, and do not reconnect until the situation is corrected. If normal troubleshooting measures do not work, contact ZLINE at 1-614-777-5004 for assistance.
- Page 9 The plug should always be accessible. • Never use an appliance with a damaged cooling system. If system is damaged upon arrival, contact ZLINE at 1-614-777-5004 DISPOSAL The appliance cannot be treated as normal domestic trash and must be disposed of at a collection point for recycling electric and electronic appliances.
- Page 10 BEFORE INSTALLATION PRODUCT SPECIFICATIONS Model RWDO-GS-24 RWDPO-24 Dual-Zone Wine Cooler Dual-Zone Wine Cooler Description Stainless Steel Glass Door Panel-Ready Glass Door Weight 169 lb (77 kg) 161 lb (73 kg) Voltage/Frequency/Max Amp Draw 1 15-120VAC/60Hz/15A 23 7/8" W × 23 3/16" D × 34" H *Product Dimensions 606 mm W x 589 mm D x 864 mm H Ambient Temperature Range...
- Page 11 BEFORE INSTALLATION PRODUCT SPECIFICATIONS Model RBSO-GS-24 RBSPO-24 Beverage Center Beverage Center Description Stainless Steel Glass Door Panel-Ready Glass Door Weight 154 lb (70 kg) 147 lb (67 kg) Voltage/Frequency/Max Amp Draw 1 15VAC/60Hz/15A 23 7/8" W × 23 3/16" D × 34" H *Product Dimensions 606 mm W x 589 mm D x 864 mm H Ambient Temperature Range...
- Page 12 BEFORE INSTALLATION PRODUCT SPECIFICATIONS Model RBSO-ST-24 Description Stainless Steel Solid Door Refrigerator Weight 139 lb (63 kg) Voltage/Frequency/Max Amp Draw 1 15VAC/60Hz/15A 23 7/8" W × 23 3/16" D × 34" H *Product Dimensions 606 mm W x 589 mm D x 864 mm H Ambient Temperature Range 50 °F–1 10 °F (10 °C–43 °C) Operating Temperature Range...
- Page 13 BEFORE INSTALLATION PRODUCT SPECIFICATIONS Model RDSO-ST-24 RDSPO-24 Refrigerator Drawer Refrigerator Drawer Description Solid Stainless Steel Door Panel-Ready Door Weight 127 lb (58 kg) 122 lb (55 kg) Voltage/Frequency/Max Amp Draw 1 15VAC/60Hz/15A 23 7/8" W × 23 3/16" D × 34" H 23 7/8"...
- Page 14 BEFORE INSTALLATION PROVIDED MATERIALS DESCRIPTION IMAGE Foot adjustment wrench (1) Anti-tip brackets (2) Screws for anti-tip brackets (6) *Door limiting pins (2) **Screws for custom panel installation (10) Decorative plugs (4) Allen key (1) *Not needed for RDSO-ST-24 and RDSPO-24 refrigerator drawer models. **Not needed for stainless steel door models;...
- Page 15 (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized ZLINE service provider. • While appliances are approved for outdoor use, it’s recommended to avoid installing units in overly moist or humid areas.
- Page 16 INSTALLATION BUILT-IN CABINET INSTRUCTIONS While this unit is designed for both built-in and freestanding installation, built-in installation is recommend to reduce risk of tipping. If you plan to use this unit in a built-in application, please follow the cabinet cutout requirements shown below. Depth Height Width...
- Page 17 INSTALLATION INSTALLING THE ANTI-TIP SYSTEM (BUILT-IN INSTALLATION ONLY) 1. With built-in installations, once you’ve determined the appropriate height and have ensured the appliance is level, position the unit at the front of the cutout to install the anti- tip system, which is necessary to reduce risk of tipping. 2.
- Page 18 INSTALLATION REVERSING THE DOOR SWING RWDO-GS-24, RWDPO-24, RBSO-GS-24, RBSPO-24, RBSO-ST-24 MODELS ONLY This appliance has the capability of the doors opening from either the left or right side. The unit is delivered to you with the doors opening from the left side (Figure 1). Should you desire to reverse the opening direction (Figure 2), follow the instructions below.
- Page 19 INSTALLATION COOLER INTEGRATED DOOR PANEL INSTALLATION RWDPO-24 and RBSPO-24 models are manufactured without door panels and handles. To install a custom integrated panel around the glass door, follow the instructions and dimensions below and on the next page. NOTE: Custom handles need to be affixed to the panel prior to installing the panel onto the appliance (see page 17).
- Page 20 INSTALLATION COOLER INTEGRATED DOOR PANEL INSTALLATION 1. Remove the door from the unit as outlined in the steps on page 14. 2. By hand, remove the rubber door seal to access the panel mounting holes. Set the seal aside and place the door face side up on a stable surface. 3.
- Page 21 Prior to installing a custom integrated panel around the glass door on RWDPO-24 and RBSPO-24 models, handle(s) need to be affixed to the panel first. If you wish to install a ZLINE Autograph Edition handle onto your custom panel, reference the measurements displayed in the diagrams below regarding where to affix the mounting studs.
- Page 22 INSTALLATION COOLER INTEGRATED DOOR PANEL INSTALLATION DOOR HINGE TIGHTENING The appliance’s door hinges may loosen over time, which is normal with regular use. Use the provided Allen key to loosen or tighten screws securing the hinges to the door as necessary, as outlined in the image below for RWDPO-24 and RBSPO-24 models.
- Page 23 INSTALLATION DRAWER INTEGRATED DOOR PANEL INSTALLATION PREPARING THE PANEL Drawer Refrigerator’s Panel Door Installation Drawer Refrigerator’s Panel Door Installation RDSPO-24 models are manufactured without drawer door panels and handles. The dimensions in the figure below represent precise distances between the middle of the PREPARING THE INTEGRATED PANEL PREPARING THE INTEGRATED PANEL The dimensions in the figure below represent precise distances between the middle of the...
- Page 24 HANDLE INSTALLATION HANDLE INSTALLATION If you wish to install a ZLINE Autograph Edition handle onto your custom panel, reference the measurements If you wish to install a ZLINE Autograph Edition handle onto your custom panel, reference the measurements HANDLE INSTALLATION...
- Page 25 DRAWER INTEGRATED DOOR PANEL INSTALLATION HANDLE INSTALLATION If you wish to install a ZLINE Autograph Edition handle onto your custom panel, reference the measurements displayed in the diagrams below regarding where to affix mounting studs. displayed in the diagrams below regarding where to affix mounting studs.
- Page 26 INSTALLATION DRAWER INTEGRATED DOOR PANEL INSTALLATION INTEGRATED GRILL/PLINTH INTEGRATED GRILL/PLINTH An integrated grill/plinth can be fabricated if desired. The thickness of the panel should be between An integrated grill/plinth can be fabricated if desired. The thickness of the panel should be between 1/4 in.
- Page 27 INSTALLATION ELECTRICAL CONNECTION • For your personal safety, this appliance must be properly grounded. In the event of an electrical short circuit, grounding reduces the risk of shock by providing an escape wire for the electric current. • This appliance is equipped with a cord having a grounding wire and a grounded plug. The plug must be inserted into an outlet that is properly grounded and installed.
- Page 28 OPERATION PRIOR TO OPERATING THE UNIT • While this unit is capable of operating in ambient temperatures between 50 °F–1 10 °F (10 °C–43 °C), it is recommended you install the appliance in a place where the ambient temperature is generally between 60 °F–90 F (16 °C–32 °C). •...
- Page 29 Fast cooling Screen lock Maintenance OPERATION Down Power Light Fast cooling Screen lock Maintenance Down Power Light Fast cooling Screen lock Maintenance Down ON/OFF After plugging in the appliance for the first time, it will be in “stand by” mode, and “OFF” Defrosting Temp unit Lighting...
- Page 30 Upper Zone OPERATION Upper Zone Lower Zone Upper Zone Lower Zone TEMPERATURE DISPLAY SETTING Upper Zone Press and hold “UP” for 6 seconds to toggle the panel display temperature between the setting temperature and the real-time temperature of the cabinet interior. The factory preset Lower Zone temperature display mode is the setting temperature.
- Page 31 OPERATION ANTI-SWEAT CONTROL ANTI-SWEAT CONTROL ANTI-SWEAT CONTROL ANTI-SWEAT CONTROL ANTI-SWEAT CONTROL (DRAWER MODELS ONLY) Press and hold ‘DOWN’ + ‘LIGHT’ for 6 s Press and hold ‘DOWN’ + ‘LIGHT’ for 6 s Press and hold ‘DOWN’ + ‘LIGHT’ for 6 Press and hold ‘DOWN’...
- Page 32 running. running. OPERATION SABBATH SABBATH Press and hold 'UP' + 'LIGHT' over 6 seconds to toggle on/off the sabbath mode. Press and hold 'UP' + 'LIGHT' over 6 seconds to toggle on/off the sabbath mode. This mode will shut off the screen display, the operating sounds, and light will be remained off while This mode will shut off the screen display, the operating sounds, and light will be remained off while the unit still running automaticly according to the previous setting.
- Page 33 OPERATION ERROR ALARMS This refrigerator has built-in alarm system feature that activates when the unit detects any malfunction in the sealed cooling system. If the temperature display window displays , or , and the “ALARM” indicator begins flashing, please proceed to "Troubleshooting"...
- Page 34 OPERATION WINE STORAGE TEMPERATURES • While certain wines store best at temperatures between 56 °F–58 °F (13 °C–14 °C), your unit also allows you to store wine at drinking temperatures. • Generally, red wine should be kept at 60 °F–61 °F (16 °C) and white wine, which is usually served chilled, is best kept at 54 °F –55 °F (12 °C).
- Page 35 CARE AND MAINTENANCE Make sure the appliance is fully disconnected from power before performing any cleaning or maintenance to avoid risk of electric shock or injury. WARNING NOTE: Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life of the appliance. CLEANING THE EXTERIOR Clean the exterior stainless steel with a cloth dampened in mild soapy water.
- Page 36 CARE AND MAINTENANCE WINTERIZING YOUR UNIT If an outdoor refrigerator will be exposed to temperatures of 40 °F (4 °C) or less, perform the following steps to winterize the unit so it will keep it in good condition while facing the winter elements.
- Page 37 Moisture will dissipate as humidity levels decrease. external surfaces This error code indicates the thermostatic sensor has Temperature window malfunctioned. Contact ZLINE Customer Service at displays 1-614-777-5004 for assistance. This error code indicates the actual temperature is much lower than your set temperature. Try restarting. Unplug...
- Page 38 TERMS ZLINE warranties apply only to the original purchaser of a ZLINE product installed for normal residential use. This is defined as a single-family, residential dwelling in a non-commercial setting. Any warranty claim stemming from installation, operation, or any other use within a commercial setting is not covered under this limited warranty.
- Page 39 If a product qualifies within the service window provided under these warranty terms, and ZLINE is unable to repair the product or a defective part of the product after a reasonable number of attempts, ZLINE reserves the right to offer to replace the defective part or the...
- Page 40 Always check the ZLINE website for the most up-to-date version of its product manuals: www.zlinekitchen.com/pages/manuals. Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer Experience at 1-614-777-5004 for help.
- Page 41 Customer Experience Portal. Scan the QR code to view the most up-to-date version of our Installation Manual and User Manual. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE’s official parts distribution partner.
- Page 42 2.0.4 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...
