Important before assembly:

Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

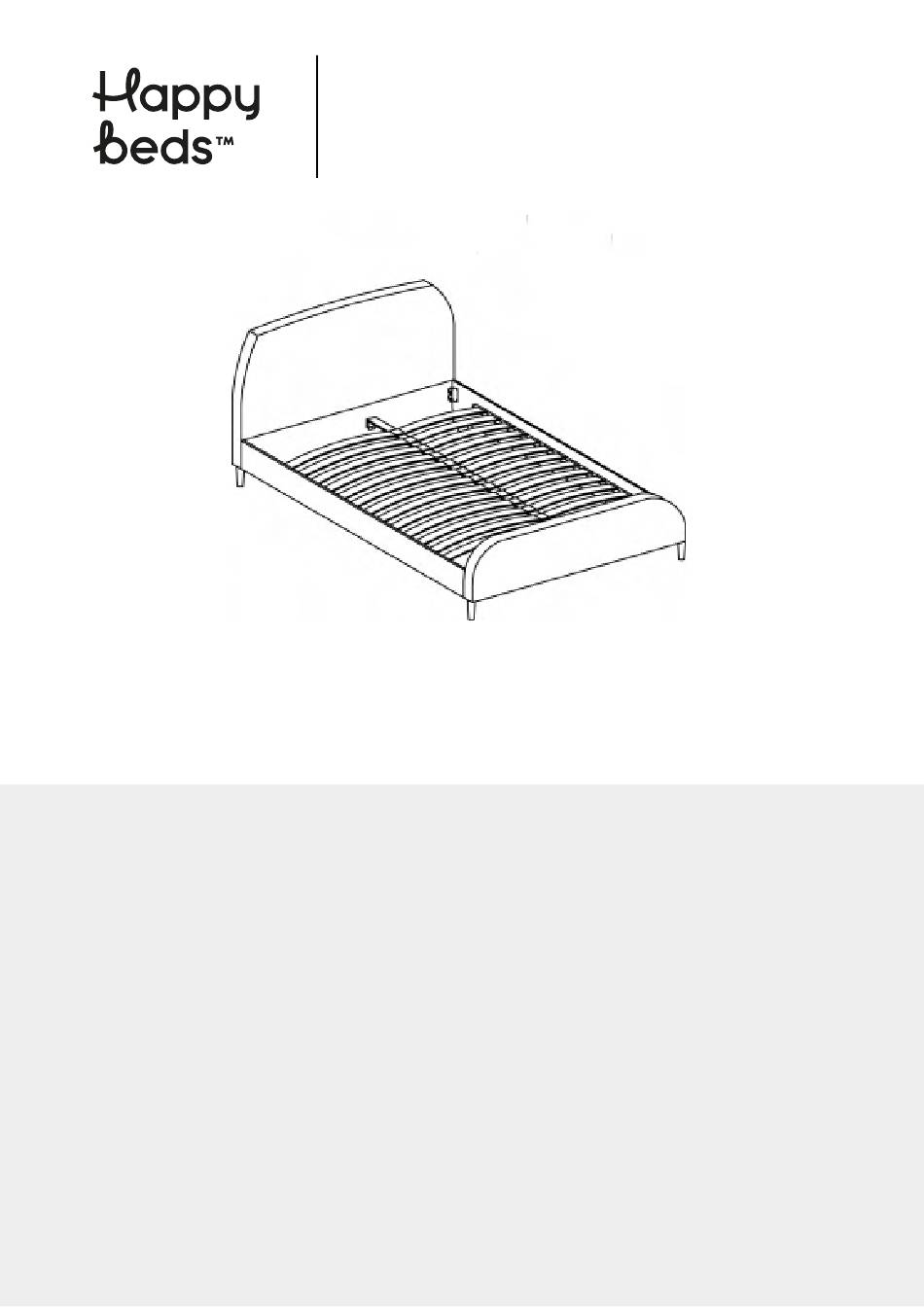

Otley Bed - Double
Assembly Instructions
.
www.happybeds.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Otley and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Happy Beds Otley

  • Page 1 Otley Bed - Double Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
  • Page 3 1. Headboard (x1) 2.Footboard (x1) 4.Legs (x4) 5.Slats (x26) 7.Support Legs (x2) 3.Side Rail (x2) 6.Centre Rail (x1) Page 3 of 7...
  • Page 4 All fitting are stored within Box 2 B.Allen Key M4 x 65 mm (xl) C.Allen Key MS x 70 mm (xl) D.M4 x 25 mm CSK (x2) A.MG x 40 mm JCBC (x2) E.Double Slat Cap (x13) F.Single Slat Cap (x26) G.Adjuster (x2) *You will need a screwdriver (not provided) Step 1...
  • Page 5 Step 2 Attach the 4x Legs (4) to the 1x Headboard (1) and 1x Fooboard (2). Step 3 Slot the 2x Side Rails (3) to the Bolts attached to 1 x Headboard (1) and 1 x Footboard (2). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page 5 of7...
  • Page 6 Step 4 Attach the 2x Support Leg (7) to 1 x Centre Rail (6) using 2x M6x40mm JCBC (A) and 1x M4 Allen Key (B).Then, screw 2x Adjuster (G) to Support Leg (7). ATTENTION: Please keep the adjuster around 5to 8mm distant away from the floor.
  • Page 7 Step 6 Secure 2x Side Rail (3) to 1x Headboard (1) and 1x Footboard (2) using 1x MS Allen Key (C). Step 7 Slot the 26x slats (5) into the 13x double slat caps (E) and then into 26x Single slat caps (F). Press firmly into the holes located on the 2x side rails (3) and lx centre rail (6).
  • Page 8 Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
