Haworth Collaborate Assembly Instructions Manual

Fabric screen with monitor mount
Hide thumbs Also See for Collaborate:

Advertisement

Quick Links

Download this manual
Collaborate
Assembly Instructions

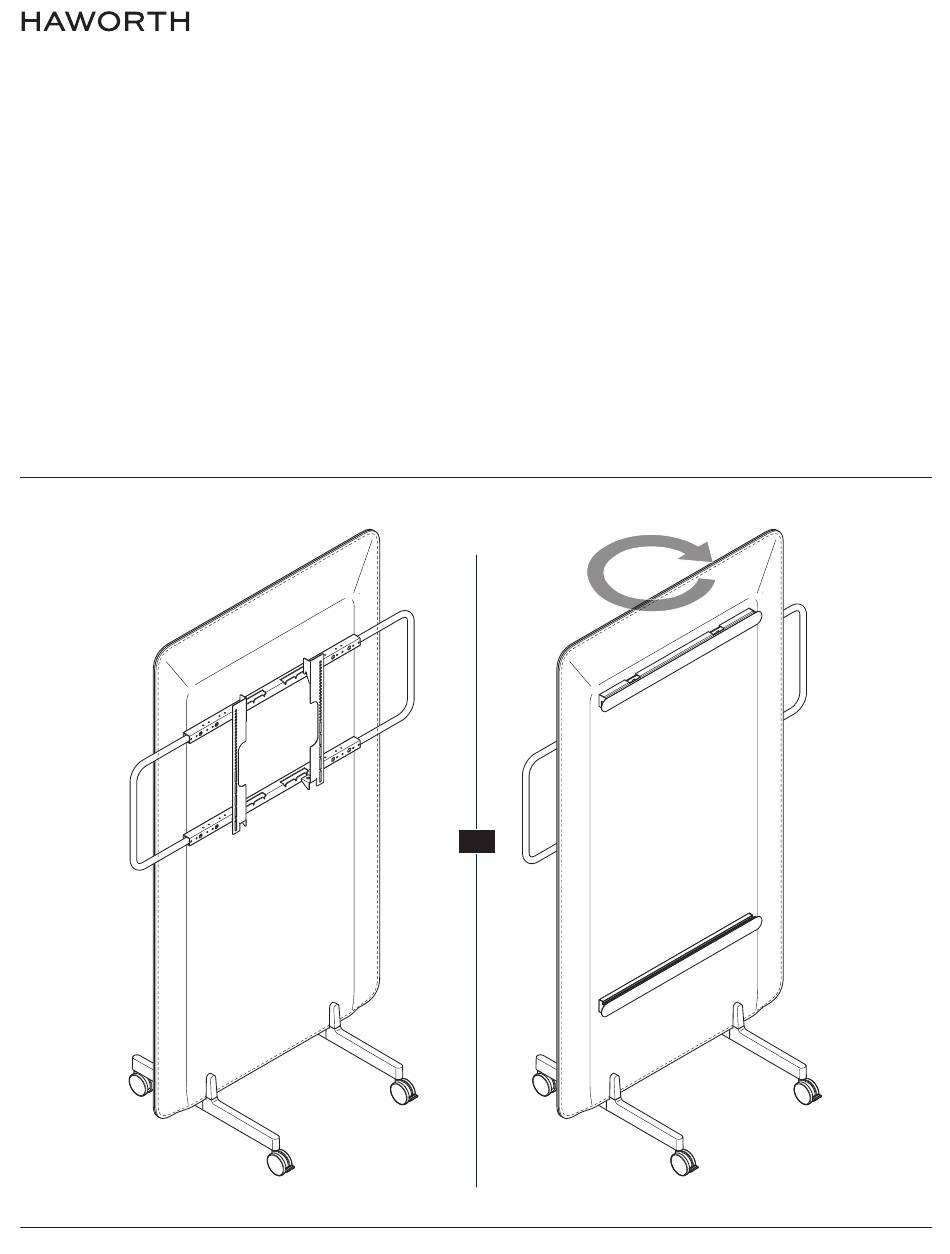

Congratulations on your
purchase of a new Collaborate
Fabric Screen with Monitor
Mount!
42" to 48"
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to assemble your new screen?
Follow all the steps carefully before using your screen.
That's it! Now you're ready to use your new screen.
Optional: Reference
instructions:
61000276
OR

Advertisement

loading
Need help?

Need help?

Do you have a question about the Collaborate and is the answer not in the manual?

Questions and answers

Related Manuals for Haworth Collaborate

Summary of Contents for Haworth Collaborate

  • Page 1 Follow all the steps carefully before using your screen. Fabric Screen with Monitor That’s it! Now you’re ready to use your new screen. Mount! 42” to 48” Optional: Reference instructions: 61000276 For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
  • Page 2 Collaborate Assembly Instructions Tools Required 5/32” & 7/32” 3/8” Wrench Allen Wrench 9/16” Wrench FOR EASEL WITH MONITOR MOUNT ACCESSORY Assembly Overview NOTE: Install fabric (A) before installing support legs (D). S154 S154 S154 S154 (S329) 3/16” S329 1/4-28 Square Nut...
  • Page 3 Collaborate Assembly Instructions FOR EASEL WITH MONITOR MOUNT ACCESSORY (J) Vertical Frame - Qty. 2 (A) Fabric Surface Easel (D) Support Legs - Qty. 2 Front, 2 Back 75.9” & 78.9” Sock height Non-Monitor No Pin Monitor 66”, 69” NOTE: Longer leg is used...
  • Page 4 Collaborate Assembly Instructions Assemble frame (J & K) NOTE: Install screws (S154) S154 in the order as shown. NOTE: Make sure these holes are facing out. NOTE: Make sure these holes are facing out. S154 (S154) #10-24 x 1/2" Screw...
  • Page 5 Collaborate Assembly Instructions Slide fabric (A) over frame (K & J) Align holes in fabric (A) with screws (S154) in frame (J) S154 (S154) #10-24 x 1/2" Screw Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1...
  • Page 6 Collaborate Assembly Instructions Collaborate Assembly Instructions Remove screws (S154) and re-install with monitor tubes (M) S154 (S154) #10-24 x 1/2" Screw Align holes in fabric (A) with holes in frame (J) Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277...
  • Page 7 Collaborate Assembly Instructions Loosely install legs (D) S330 NOTE: Align holes in fabric (A) with frame holes (J). (S329) 3/16” 1/4-28 Square Nut (S330) S329 1/4-28 x 2" Button Head Screw Install metal straps (E) NOTE: Install metal straps (E) with only 2 screws (S331).
  • Page 8 Collaborate Assembly Instructions Squeeze support legs (D) together and install screws (S331 ) SQUEEZE NOTE: Squeeze with your hands to help even out gap. SQUEEZE TIGHTEN S331 TIGHTEN S331 SQUEEZE (S331) SQUEEZE 3/8-16 x 1/2" Button Head Screw Tighten screws (S330) and nuts (S329) NOTE: Gap is expected.
  • Page 9 Collaborate Assembly Instructions Install monitor handles (N) S154 S154 FOR 42” WIDE SCREENS FOR 48” WIDE SCREENS (S154) #10-24 x 1/2" Screw Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1 Page 9 of 15...
  • Page 10 Collaborate Assembly Instructions Install remote holder (S) S154 (S154) #10-24 x 1/2" Screw Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1 Page 10 of 15...
  • Page 11 Collaborate Assembly Instructions Install casters (G & H) NOTE: Locking Caster (G) always on monitor side. CASTER LOCKING LOCKING GLIDE NON-LOCKING NON-LOCKING Rotate easel (A) onto casters Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1...
  • Page 12 Collaborate Assembly Instructions Install all 4 covers (F) NOTE: If needed tap with a plastic hammer only. Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1 Page 12 of 15...
  • Page 13 Collaborate Assembly Instructions Install plunger (R) to one of the monitor brackets (P) and install monitor brackets NOTE: Screws provided may not cover all conditions. NOTE: Assemble brackets (P) as shown, facing each other. NOTE: Can assembly to either side.
  • Page 14 Collaborate Assembly Instructions Route cables (T) NOTE: Routing cables internal is optional. Can route outside the screen. Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1 Page 14 of 15...
  • Page 15 Collaborate Assembly Instructions Install monitor (Q) to monitor rail (M) Customer Service: 800 426 8562 E.C.O. No 5_46395 Part No 6100-0277 Rev 1 Page 15 of 15...
