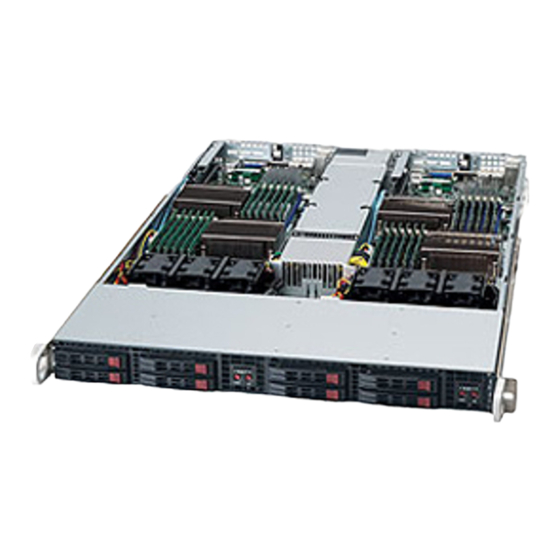

- Page 1 UPER ® SC809 Chassis Series SC809LT-780B SC809T-780B SC809T-980B USER’S MANUAL 1.0a...
- Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
- Page 3 SC809 1U chassis. Installa- tion and maintenance should be performed by experienced technicians only. Supermicro’s SC809 1U chassis features a unique and highly-optimized design for twin dual-core Xeon platforms. The chassis is equipped with a 780W or 980W high- efficiency power supply for superb power savings.
-
Page 4: Manual Organization
SC809 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC809 chassis. This chapter also includes contact information. Chapter 2 System Safety This chapter lists warnings, precautions, and system safety. - Page 5 Preface Appendices This section lists compatible cables, power supply specifications, and compatible backplanes. Not all compatible backplanes are listed. Refer to our Web site for the latest compatible backplane information. Appendix A Chassis Cables Appendix B Power Supply Specifications Appendix C SAS-809 Backplane Specifications...
-
Page 6: Table Of Contents
SC809 Chassis Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Contacting Supermicro ..................1-2 Returning Merchandise for Service..............1-3 Chapter 2 System Safety Overview ......................2-1 Warnings and Precautions ................2-1 Preparing for Setup ..................2-1 Electrical Safety Precautions ................ - Page 7 Preface I/O Shield ......................5-5 Permanent and Optional Standoffs ..............5-5 Installing the Motherboards ................5-6 Add-on Card/Expansion Slot Setup ..............5-7 Installing the Air Shrouds ................5-9 Air Shrouds ..................... 5-9 Checking the Air Flow ................... 5-10 Installation Complete ..................5-10 System Fans ....................5-11 Power Supply ....................
- Page 8 SC809 Chassis Manual Notes viii...
-
Page 9: Chapter 1 Introduction
Chapter 1 Introduction Overview Supermicro’s SC809 1U chassis features a unique and highly-optimized design. The chassis is equipped with either a 780W or 980W high-efficiency power supply. High performance fans provide ample optimized cooling for the twin motherboards, and eight hot-swappable drive bays offer maximum storage capacity in a 1U form factor. -
Page 10: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) www.supermicro.com Site: Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 11: Returning Merchandise For Service
For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping. - Page 12 SC809 Chassis Manual Notes...
-
Page 13: Chapter 2 System Safety
Chapter 2 System Safety Chapter 2 System Safety Overview This chapter provides a quick setup checklist to get your chassis up and running. Following the steps in the order given should enable you to have your chassis set up and operational within a minimal amount of time. This quick setup assumes that you are an experienced technician, famailiar with common concepts and terminology. -
Page 14: General Safety Precautions
SC809 Chassis Manual • Power should always be disconnected from the system when removing or install- ing main system components, such as the serverboard, memory modules and the DVD-ROM/USB comport unit. When disconnecting the power, you should first power down the system with the operating system and then unplug the power cords from all the power supply modules in the system. -
Page 15: System Safety
Chapter 2 System Safety • While working on the system, do not wear loose clothing such as neckties and unbuttoned shirt sleeves, which can come into contact with electrical circuits or be pulled into a cooling fan. • Remove any jewelry or metal objects from your body, which are excellent metal conductors that can create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present. - Page 16 SC809 Chassis Manual • For grounding purposes, make sure the computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the serverboard.
-
Page 17: Chapter 3 Chassis Components
Each SC809 chassis comes with a 1U backplane. For more information regarding compatible backplanes, view the appendices found at the end of this manual. for the latest information, visit our Web site at http://www.supermicro.com. Fans The SC809 chassis accepts six system fans. System fans for SC809 chassis are powered from the serverboard. -
Page 18: Power Supply
Supermicro Authorized Distributors / System Integrators / Resellers. A list of Supermicro Authorized Distributors / System Integrators /Reseller can be found at: http://www.supermicro.com. Click the Where... -
Page 19: Chapter 4 System Interface
Chapter 4 System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel and drive carriers to keep you con- stantly informed of the overall status of the system. SC809 models include two front panels that control two semi-independent systesm. This chapter explains the meanings of all LED indicators and the appropriate re- sponse you may need to take. -
Page 20: Control Panel Buttons
SC809 Chassis Manual Control Panel Buttons There are two push-buttons located on the front of the chassis. These are (in order from left to right) a reset button and a power on/off button. • Reset: The reset button is used to reboot the system. •... -
Page 21: Drive Carrier Leds
Chapter 4 System Interface • NIC2: Indicates network activity on GLAN2 when flashing. • NIC1: Indicates network activity on GLAN1 when flashing. • HDD: Indicates IDE channel activity. SAS/SATA drive, SCSI drive, and/or DVD- ROM drive activity when flashing. • Power: Indicates power is being supplied to the system's power supply units. -
Page 22: Scsi Drives
SC809 Chassis Manual nection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed. • Red: The red LED to indicate an SAS/SATA drive failure. If one of the SAS/SATA drives fail, you should be notified by your system management software. SCSI Drives This chassis does not support SCSI drives at this time. -
Page 23: Chapter 5 Chassis Setup And Maintenance
Chapter 5 Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips head screwdriver. -
Page 24: Removing The Chassis Cover
SC809 Chassis Manual Removing the Chassis Cover Remove these screws Remove this screw Remove this screw Figure 5-1: Removing the Chassis Cover Removing the Chassis Cover: Remove the two screws securing the cover to the sides of the chassis. Remove the two screws securing the cover to the back of the chassis. Slide the cover toward the rear of the chassis Lift the cover off the chassis. -
Page 25: Installing Hard Drives
Chapter 5 Chassis Setup and Maintenance Installing Hard Drives Figure 5-2: Removing Hard Drive The SC809 has two sets of four hard disk drives (eight total) which are mounted in drive carriers and reside within the the hard drive bays. These drives are hot- swappable and can be removed or replaced without powering down the chassis. - Page 26 SC809 Chassis Manual 2. Use the handle to pull the drive and its carrier out of the chassis. Installing a Hard Drive into a Drive Carrier Insert a drive into the carrier with the PCB side facing down and the connec- tor end toward the rear of the carrier.
-
Page 27: Motherboard Installation
Chapter 5 Chassis Setup and Maintenance Motherboard Installation I/O Shields Figure 5-4: I/O Shield Placement I/O Shield The I/O shield holds the motherboard ports in place. The I/O shield does not re- quire installation. However, you must confirm that the motherboard matches the I/O shield. -
Page 28: Installing The Motherboards
SC809 Chassis Manual Remove six screws Remove six screws Chassis Standoffs Chassis Standoffs Figure 5-5: Motherboard Installation Installing the Motherboards Installing Motherboards Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions. -
Page 29: Add-On Card/Expansion Slot Setup
Chapter 5 Chassis Setup and Maintenance Connect the cables between the motherboard, backplane, chassis, front panel, and power supply, as needed. Also, fans may be temporarily removed to allow access to the backplane ports. Replace the add-on card bracket and secure the bracket with a screw. Add-on Card/Expansion Slot Setup SC809 chassis includes I/O slots for add-on cards and expansion cards. - Page 30 SC809 Chassis Manual Add-on Card Bracket Screw Add-on Card Bracket Riser Card Add-on Card Figure 5-7: I/O Shield Placement Connect the add-on card to the riser card and slide the add-on card L-bracket into the rear add-on card slot. Close the add-on card slot clip. Note: Under normal circumstances, the riser card and add-on card bracket are not separated.
-
Page 31: Installing The Air Shrouds
Chapter 5 Chassis Setup and Maintenance Installing the Air Shrouds Air Shrouds Air shrouds concentrate airflow to maximize fan efficiency. The SC809 chassis air shrouds do not require screws to set them up. The SC809 chassis requires two identical air shrouds. Installing the Air Shrouds Confirm that all six fans are in place and working properly. -
Page 32: Checking The Air Flow
SC809 Chassis Manual Checking the Air Flow Checking the Server's Air Flow Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically. -
Page 33: System Fans
Chapter 5 Chassis Setup and Maintenance System Fans Six fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. The SC809 system fans are hot-swappable. There is no need to power down the system when switching fans. - Page 34 SC809 Chassis Manual Figure 5-10: System Fan Placement 5-12...
-
Page 35: Power Supply
The SC809 chassis utilizes one power supply. In the unlikely event that the power supply unit must be replaced, the system will shut down. Replacement units can be ordered directly from Supermicro. (See the Contact Information section in the Preface of this manual). - Page 36 SC809 Chassis Manual Changing The Power Supply: 1. Power down the server and unplug the power cord. 2. Push the release tab (on the back of the power supply) as illustrated. 3. Pull the power supply out using the handle provided. 4.
-
Page 37: Chapter 6 Rack Installation
Chapter 6 Rack Installation Chapter 6 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way. -
Page 38: Warnings And Precautions
SC809 Chassis Manual Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installations, stabilizers should be attached to the rack. •... -
Page 39: Rack Mounting Considerations
Chapter 6 Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (TMRA). -
Page 40: Rack Mounting Instructions
SC809 Chassis Manual Rack Mounting Instructions This section provides information on installing the SC809 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using. -
Page 41: Installing The Inner Rail Extensions
Chapter 6 Rack Installation Inner Rail Extension Inner Rail Preattached to the Chassis Figure 6-3: Installing the Inner Rail Extensions Installing the Inner Rail Extensions The SC809 chassis includes a set of inner rack rails in two sections: inner rails (A) and inner rail extensions (B). -
Page 42: Installing The Outer Rails
SC809 Chassis Manual Outer Rail Secure to the Front of the Rack Secure to the Rear of the Rack Secure Outer Rails Together Figure 6-4: Assembling the Outer Rails Installing the Outer Rails Installing the Outer Rails to the Rack Attach the short bracket to the outside of the long bracket. -
Page 43: Installing The Chassis Into A Rack
Chapter 6 Rack Installation Figure 6-5: Installing the Rack Rails Installing the Chassis into a Rack Rack Installation Confirm that chassis includes the inner rails (A) and rail extensions (B). Also, confirm that the outer rails (C) are installed on the rack. Align the chassis rails extentions (B), with the front of the rack rails (C). - Page 44 SC809 Chassis Manual Notes...
-
Page 45: Appendix A Cables, Screws, And Other Accessories
For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com. A-2 Cables Included with SC809 Chassis (SAS/SATA) SC809LT-780B, SC809T-780B, SC809T-980B Part # Type Length... -
Page 46: Extending Power Cables
SC809 Chassis Manual A-4 Compatible Cables These cables are compatible with the SC809 Chassis. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables. -
Page 47: Front Panel To The Motherboard
Appendix A Chassis Cables Front Panel to the Motherboard The SC809 chassis includes a cable to connect the chassis front panel to the motherboard. If your motherboard uses a different connector, use the following list to find a compatible cable. Front Panel to Motherboard Cable (Ribbon Cable) Number of Pins Number of Pins... - Page 48 SC809 Chassis Manual A-5 Chassis Screws The Chassis and accessory box include all the screws needed to setup your chassis. This section include descriptions of the most common screws used. Your chassis may not require all the parts listed. HARD DRIVE Flat head Pan head 6-32 x 5 mm...
-
Page 49: Appendix B Sc809 Power Supply Specifications
Appendix B Power Supply Specifications Appendix B SC809 Power Supply Specifications This appendix lists power supply specifications for your chassis system. SC809LT-780B and SC809T-780B 980W MFR Part # PWS-781-1S 180 - 240V 50 - 60Hz Rated AC Voltage 5 - 3.5 Amp*... - Page 50 SC809 Chassis Manual Notes...
-
Page 51: Appendix Csas-809T/Tq Backplane
Appendix C SAS-809T/TQ Backplane Specifications Appendix C SAS-809T/TQ Backplane Safety Guidelines To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully. - Page 52 SC809 Chassis Manual • Make sure that the backplane is securely and properly installed on the mother- board to prevent damage to the system due to power shortage. C-3 An Important Note to Users • All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing.
- Page 53 PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Erni, Gloria Front Connectors TOLERANCES DESIGNED BY SUPERMI CRO U.S.A. DECIMAL ANGLE www.supermicro.co DATE: Jan. 10 2008 REV: 1.01 MACH FINISH SAN JOSE,CA 95131 .010 PROJECT NAME: SAS809TQ TEL:408-503-8000 FAX:408-50 3-8008 Power Connector (4-pin) JP10...
- Page 54 SC809 Chassis Manual C-5 Front Connector and Pin Definitions 1. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors designated JP10 pro- 4-Pin Connector (JP10) vides power to the backplane. See the table Pin# Definition on the right for pin definitions. +12V 2 and 3 Ground...
- Page 55 Appendix C SAS-809T/TQ Backplane Specifications 8. Upgrade Connectors The upgrade connector, designated JP46, is only included on the SAS-809TQ backplane and is used for manufacturer's diagnostic purposes only. 9. MG9071 Chip Reset The chip reset, designated JP35, is only included on the SAS-809TQ backplane and is used to reset the MG9071 chip.
- Page 56 UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Erni, Gloria TOLERANCES DESIGNED BY SUPERMI CRO U.S.A. JP18 DECIMAL ANGLE www.supermicro.co DATE: Jan. 10 2008 REV: 1.01 MACH FINISH SAN JOSE,CA 95131 .010 PROJECT NAME: SAS809TQ TEL:408-503-8000 FAX:408-50 3-8008 JP18...
- Page 57 UPER UNLESS OTHERWISE PRIMARY-SIDE SPECIFIED DIMENSIONS ARE IN INCHES DESINGER: Erni, Gloria TOLERANCES DESIGNED BY SUPERMI CRO U.S.A. DECIMAL ANGLE www.supermicro.co DATE: Jan. 10 2008 REV: 1.01 MACH FINISH SAN JOSE,CA 95131 .010 PROJECT NAME: SAS809TQ TEL:408-503-8000 FAX:408-50 3-8008 D3:ALARM...
- Page 58 SC809 Chassis Manual C-7 Rear Connectors and LED Indicators SAS #3 SAS #1 ACT#1 ACT#3 FAIL#3 FAIL#1 ACT#0 ACT#2 FAIL#2 FAIL#0 SAS #2 SAS #0 Rear SAS/SATA Connectors Rear Connector SAS Drive Connector Number Number SAS #0 SAS/SATA HDD #0 SAS #1 SAS/SATA HDD #1 SAS #2...
- Page 59 Appendix C SAS-809T/TQ Backplane Specifications Notes...
- Page 60 SC809 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
