Installation Guide

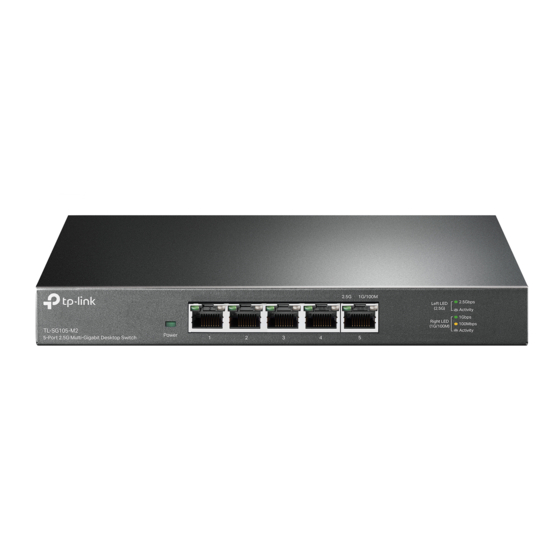

5/8-Port 2.5G Multi-Gigabit Desktop Switch
Note:
For simplicity, we will take TL-SG105-M2 for example in this Guide.
Connection
WAN Port
Power Adapter
Router
LAN Port
Panel Explanation
Power
On:
Power on
Off:
Power off
Port LED
When one of the LED is on/flashing
On:
Connecting to a device but no activity
Flashing:
Left LED (2.5G)
Green:
Running at 2.5 Gbps
Flashing:
Right LED (1G/100M)
Green:
Running at 1 Gpbs
Yellow: Running at 100 Mbps
Flashing: Transmitting or receiving data
Ethernet Ports
2.5G
1G/100M
Devices
2.5G NAS/Server
2.5G Gaming
Computer
*With a USB to 2.5G Ethernet adapter, you can enjoy the Ethernet up to 2.5 Gbps on your laptop.
Kensington Security Slot
Secure the lock (not
provided) into the slot to
prevent the device from
being stolen.
Transmitting or receiving data
Transmitting or receiving data
2.5G
Laptop*
Wi-Fi 6 AP
