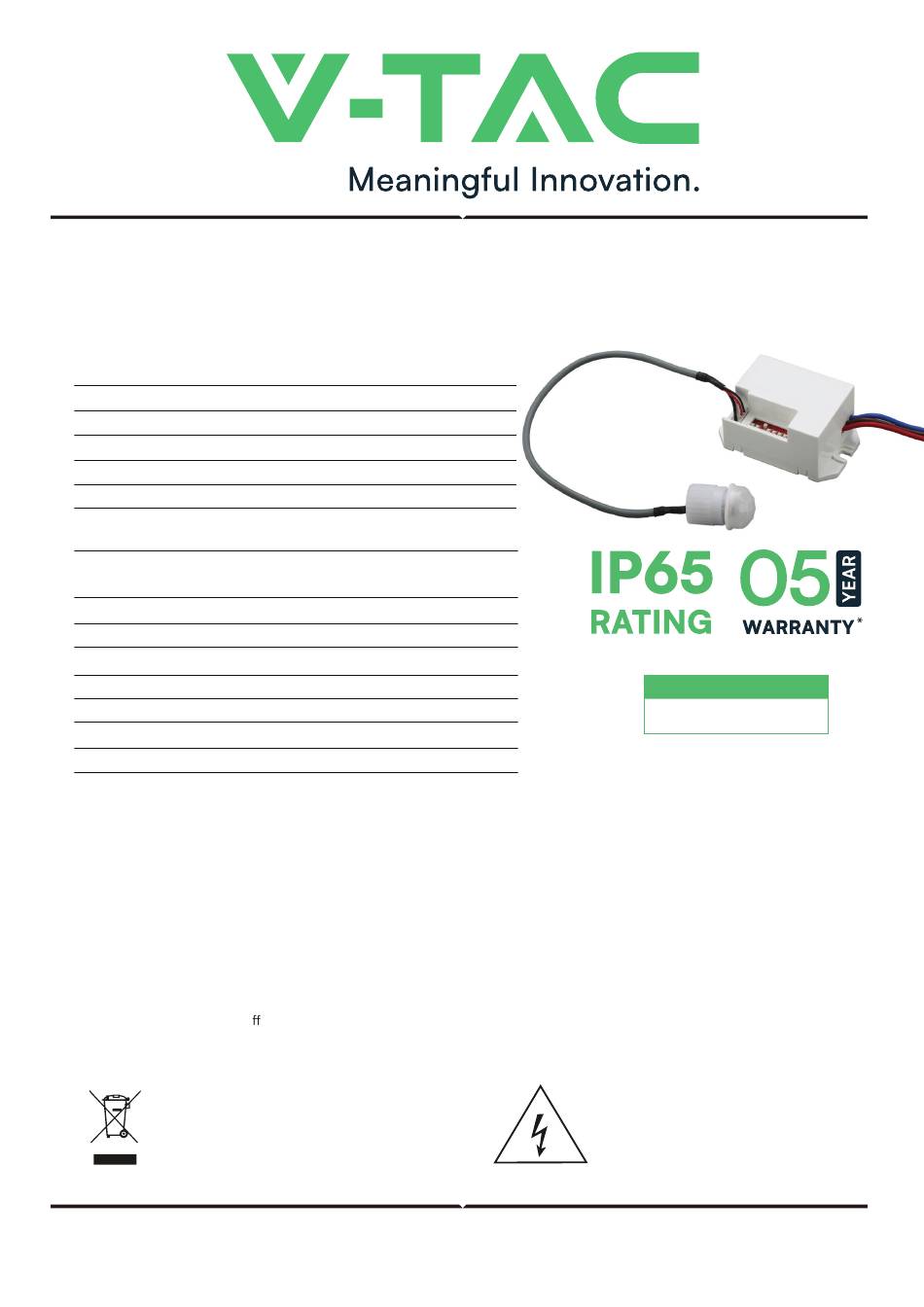

INSTALLATION INSTRUCTION
TECHNICAL DATA
MODEL
SKU
VOLTAGE
POWER FREQUENCY
AMBIENT LIGHT
TIME DELAY
RATED LOAD
DETECTION RANGE
DETECTION DISTANCE
WORKING TEMPERATURE
WORKING HUMIDITY
INSTALLING HEIGHT
POWER CONSUMPTION
DETECTION MOTION SPEED 0.6-1.5m/s
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions care-
fully before starting the installation and keep this manual handy for future reference. If you have any another query,
please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to
serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to
damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage
to any surface due to incorrect removal and installation of the product.
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation should only be done by a certified electrician.
This marking indicates that this
product should not be disposed
of with other household wastes.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
INFRARED MOTION SENSOR
VT-8022
5082
220-240V/AC
50/60Hz
10LUX2000LUX (choice)
5s, 30s, 1min, 3mins,
5mins, 8mins (choice)
800W (Traditional Lighting)
200W (LED Lighting)
120°/ 360°
3m / 6m (Choice) (<24°C)
-20~+40°C
<93%RH
Wall: 1.8-2.5m, Ceiling: 2-2.4m
Approx 0.5W
WEEE Number: 80133970
COMPATIBLE WITH
V-TAC LED
RANGE [UPTO 400W]
Caution, risk of electric shock.
