TECHNICAL DATA
MODEL
SKU
INPUT POWER
RATED LOAD
TIME DELAY
DETECTION
RANGE
DETECTION
DISTANCE
DETECTION
MOVING SPEED
IP RATING
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

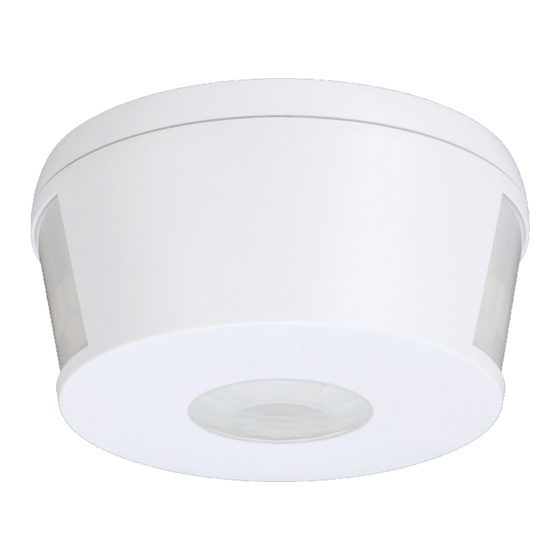

INFRARED MOTION SENSOR
VT-81000
23162
AC: 220-240V, 50/60 Hz
Max. 2000W
1000W
+LED
Min. 10sec ±3sec
Max. 15min ±2min
360°
30m max (<24°C)
0.6-1.5m/s
IP20
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to
access the manual in multiple languages.
WORKING
TEMPERATURE
WORKING
HUMIDITY
POWER
CONSUMPTION
AMBIENT LIGHT
INSTALLATION
HEIGHT
POWER
CONSUMPTION
DETECTION
MOTION SPEED
DIMENSION
COMPATIBLE WITH
V-TAC LED
RANGE (UPTO 500W)
-20°C to +40°C
<93%RH
Approx, 0.9W
<3-2000 LUX (Adjustable)
2.2 - 4m
approx 0.9w
0.6-1.5 m/s
Ø103x53.5 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for V-TAC VT-81000
Summary of Contents for V-TAC VT-81000
- Page 1 IP20 INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 WARNING Please make sure to turn off the power before starting the installation. 2. Installation must be performed by a qualified electrician. 3. For Indoor use only This marking indicates that this prod- uct should not be disposed of with Caution, risk of electric shock.
- Page 3 CONNECTION-WIRE DIAGRAM SENSOR INFORMATION Height of installation:2.2-4m Detection Distance: Max.30m • Turn the TIME knob anti-clockwise on the minimum (10s).Turn the LUX knob clockwise on the maximum (sun). • Switch on the power; the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the sensor can start work.
- Page 4 • Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3LUX, the sensor would not work and the lamp stop working too. If the ambient light is less than 3LUX (darkness), the sensor would work. Under no induction signal condition, the sensor should stop working within 10sec±3sec.
