TECHNICAL DATA
MODEL
SKU
INPUT VOLTAGE
RATED LOAD
TIME DELAY
DETECTION
RANGE
DETECTION
DISTANCE
DETECTION
MOTION SPEED
WORKING
TEMPERATURE
WORKING
HUMIDITY
POWER
CONSUMPTION
AMBIENT LIGHT
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

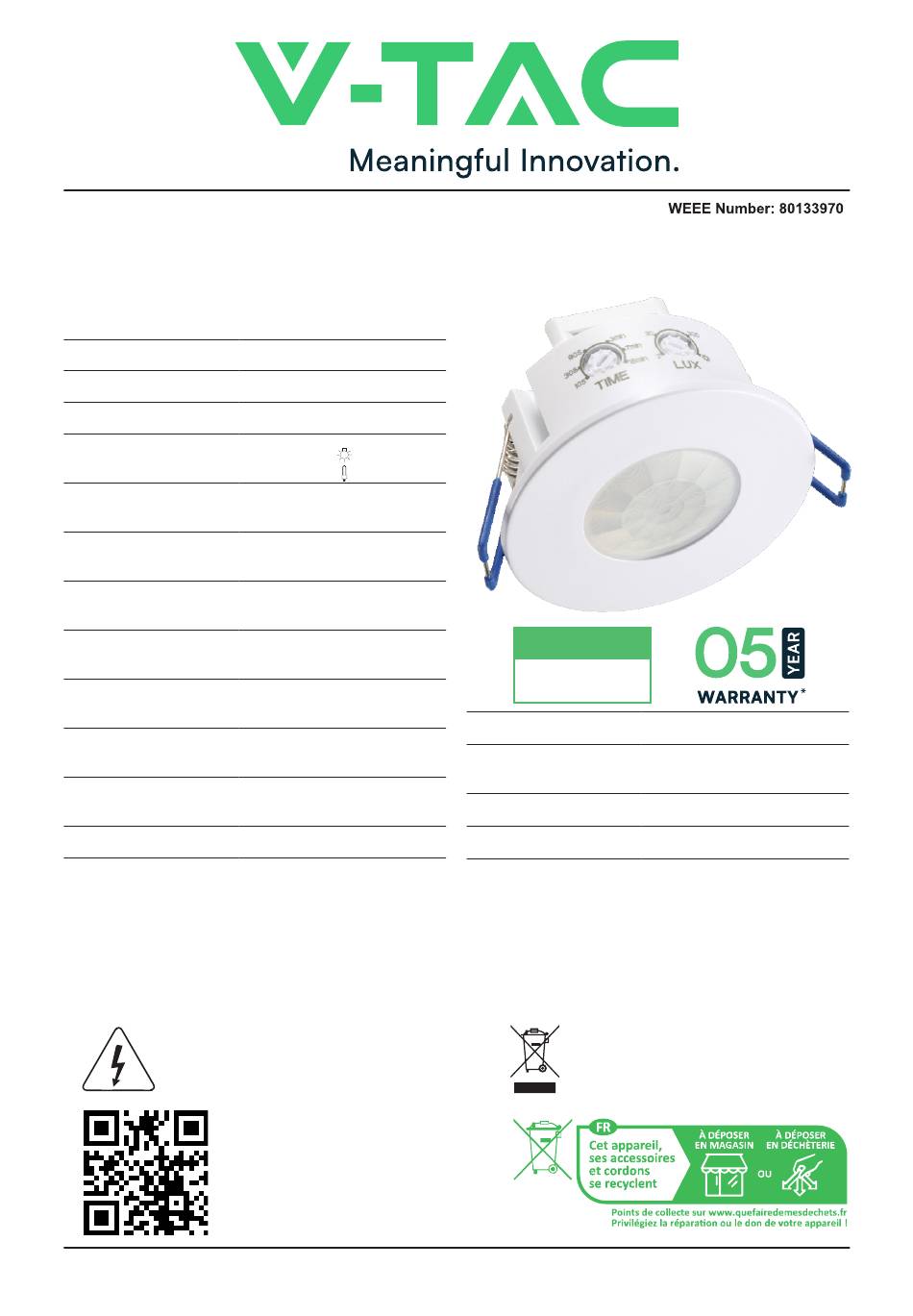

INSTRUCTION MANUAL
INFRARED MOTION SENSOR
VT-81010
23426
AC: 220-240V, 50/60 Hz
Max. 1200W
600W
+LED
Min. 10sec ±3sec
Max. 15min ±2min
360°
8m Max (<24° C)
0.6-1.5m/s
-20°C to +40°C
<93%RH
Approx, 0.9W
<3-2000 LUX (Adjustable)
COMPATIBLE WITH
V-TAC LED
RANGE (UPTO 600W)
IP RATING
HEIGHT
CUTOUT SIZE
DIMENSION
This marking indicates that this
product should not be disposed
of with other household wastes.
IP20
1.8-4m
Ø63-66m
Ø76x49
mm
Advertisement
Table of Contents
Related Manuals for V-TAC VT-81010
Summary of Contents for V-TAC VT-81010
- Page 1 <3-2000 LUX (Adjustable) INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 WARNING Please make sure to turn off the power before starting the installation. 2. Installation must be performed by a qualified electrician. 3. Cover or shied any adjacent live components. 4. For indoor use only. FUNCTION 1. Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun”...
- Page 3 INSTALLATION • Switch off the power. • Unload the transparent cover. • Connect the power to connection terminal of sensor according to connection-wire diagram. • Install back the transparent cover into the original location. • Fold the metal spring of the sensor upwards and then put the sensor into the suitable hole or installation box.
- Page 4 induction signal, the lamp will turn on. While there is no another induction signal any more, the load should stop working within 10sec±3sec and the lamp would turn off. • Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3LUX, the sensor would not work and the lamp stop working too.
