TECHNICAL DATA
MODEL
SKU
INPUT POWER
RATED LOAD
TIME DELAY
DETECTION
RANGE
DETECTION
DISTANCE
DETECTION
MOVING SPEED
WORKING
TEMPERATURE
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

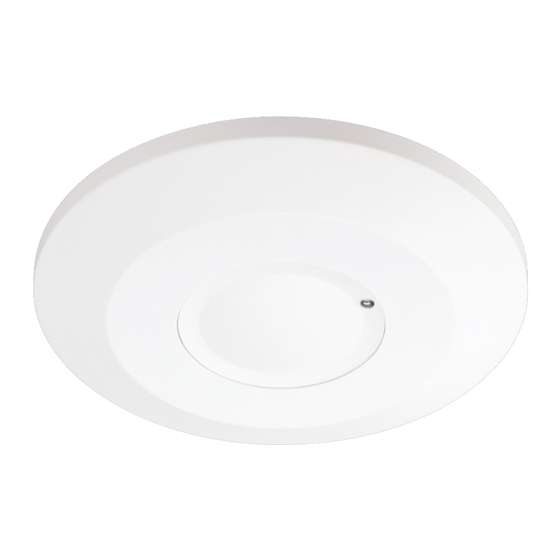

MICROWAVE SENSOR CEILING MOUNT
VT-81001
23163
AC: 220-240V, 50/60 Hz
Max. 2000W
1000W
+LED
Min. 10sec ±3sec
Max. 12min ±1min
360°
1-8m(Radius), Adjustable
0.6-1.5m/s
-20°C to +40°C
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to
access the manual in multiple languages.
POWER
CONSUMPTION
AMBIENT LIGHT
HEIGHT
POWER
CONSUMPTION
DETECTION
MOTION SPEED
HF SYSTEM
IP RATING
DIMENSION
COMPATIBLE WITH
V-TAC LED
RANGE (UPTO 1000W)
Approx, 0.9W
<3-2000 LUX (Adjustable)
2-6m
Approx 0.9w
0.6-1.5 m/s
5.8 Ghz CW Radar,
ISM Band
IP20
Ø115x24.3 mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for V-TAC VT-81001
Summary of Contents for V-TAC VT-81001
- Page 1 TEMPERATURE INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 WARNING Please make sure to turn off the power before starting the installation. 2. Installation must be performed by a qualified electrician. 3. For Indoor use only This marking indicates that this prod- uct should not be disposed of with Caution, risk of electric shock.
- Page 3 TEST • Turn the TIME knob anti-clockwise on the minimum (10s). Turn the SENS knob clockwise on the maximum (+). Turn the LUX knob clockwise on the maximum (sun). • When you switch on the power, the light will be on at once. And 10sec±3sec later the light will be off automatically.
