Getting to Know Your Controller

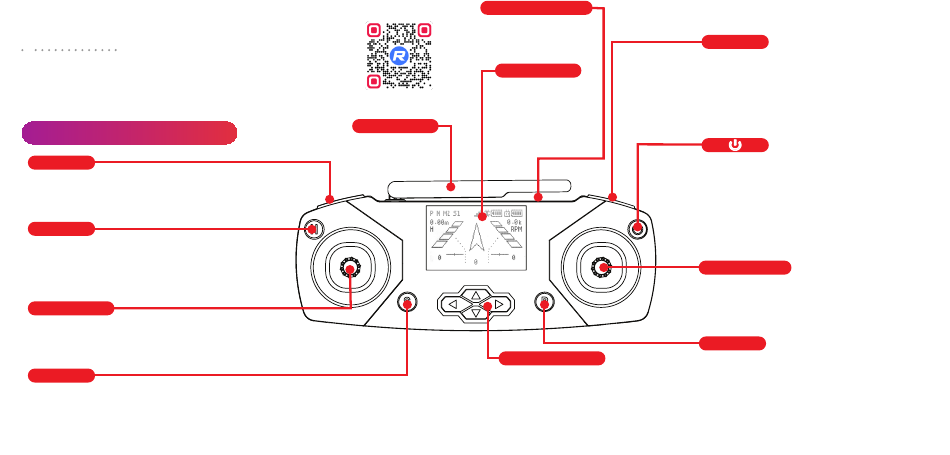

Using your controller, you can pilot your drone or connect your
controller to your computer for coding. These are the controls for the
controller while in the remote control state. For a complete video
guide to the controller, visit:
robolink.com/codrone-edu-controller
L1
Press: Change flight speed (30%, 70%, 100%).
Press and hold: Take off / Land.
H
Press: Turn LCD screen backlight on / off.
Press and hold: Return to take off location, and
used for firmware updates.
Left joystick
Left and right: Yaw (rotate left and right).
Up and down: Throttle (move up and down).
S
Press: Go to previous display mode screen.
Press and hold: Go to the Settings menu.
Antenna
Extend and point
at drone for best
connectivity.
10
Micro USB port
Used for coding and
controller firmware
updates.
LCD screen
Displays drone
information and
settings. Can also be
programmed with
code.
Direction pad
If the drone begins to drift while
flying, use the direction pad to trim
(stabilize) it.
(See page 17 for how to trim.)
R1
Press: Change LED color on drone and
controller.
Press and hold: Prepare drone to flip during
flight. Then, push the right joystick in the
direction you want to flip.
Press: When connected to a computer by
USB cable, this button switches between the
remote control and LINK state, which is used
for coding.
Press and hold: Power on / off when using AA
batteries.
Right joystick
Left and right: Roll (move left and right).
Up and down: Pitch (move forward and
backward).
P
Press: Go to next display mode screen.
Press and hold: Pairing mode.
(See page 14 for how to pair.)
