Robolink codrone EDU User Manual page 11

Complete controller guide
Take a look at our complete video guide about the controller:
robolink.com/codrone-edu-controller

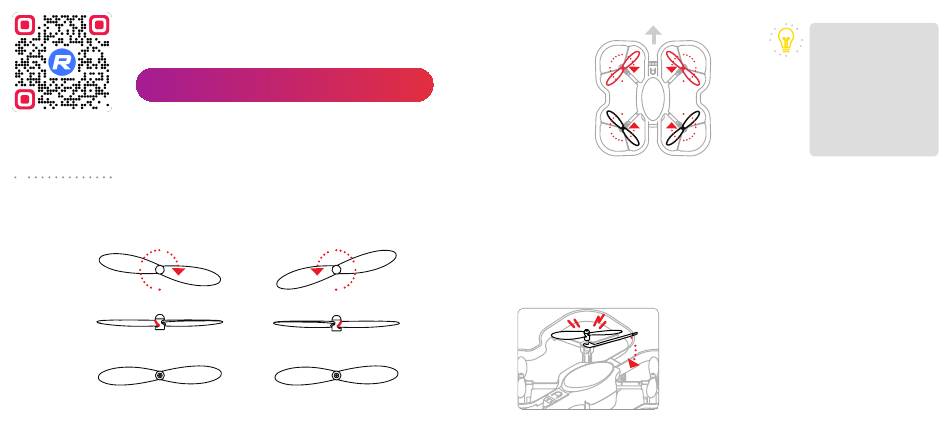

Propellers
Your CoDrone EDU comes with 4 spare propellers. You can use the propeller removal
tool to remove them. Propeller placement is important for the drone to fly correctly.
There are 2 types of propellers.
Top view
Side view
F
Bottom view
Clockwise (cw)
R
Counter-clockwise (ccw)
18
front
'F' | cw
'R' | ccw
Please note, a propeller's color does not indicate its rotation. However, we
recommend placing the red propellers at the front of the drone. This will help identify
the front of the drone during flight.
Removing propellers
Propellers can be removed to clear out debris from under the propeller hub. A
propeller should be replaced if it's bent, chipped, or cracked, and it begins affecting
the drone's flight. Use the included propeller removal tool to remove the propeller.
1.
2.
3.
4. Check propeller rotation, and perform flight
TIP
An easy way to
remember the
directions:
ccw |'R'
F for fast forward, so
clockwise.
cw | 'F'
R for rewind, so
counter-clockwise.
Insert fork-shaped end of tool under
propeller hub.
Push handle down like a lever.
Push new propeller onto the shaft of the
motor.
check.
19
