Motors

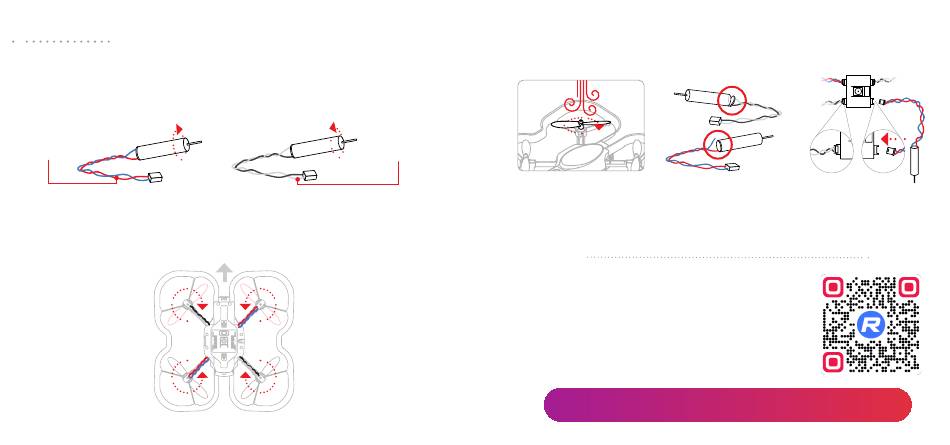

Motor placement is also important for the CoDrone EDU. Like propellers, there are 2
types of motors, indicated by the color of the wires. Motor directions should match
propeller directions.
red / blue
wires
Clockwise (cw)
You can see the color of the motor wires by checking underneath the arms of the
drone frame.
ccw | black / white
cw | red / blue
black / white
Counter-clockwise (ccw)
front
red / blue | cw
black / white
bottom view
20
Inspecting motors
If your drone has issues flying, check propellers first. If the propellers don't seem to be
the issue, check the motors. Motor issues usually result from hard crashes. Here are
common signs that a motor should be replaced.
wires
Blow on the attached
propeller. Look for difficulty
rotating or wobbling during
rotation.
Replacing motors
Replacing motors is an involved process, so
we recommend carefully following our motor
replacement video.
Replacement motors are sold separately.
| ccw
Check for breakages in
the wiring or bottom
casing. This can happen
from hard crashes.
robolink.com/codrone-edu-motors
21
Remove the drone's bottom
chassis. Then check if the motor
is disconnected from the drone's
board.
