Robolink CoDrone Pro Quick Start Manual

Rokit Bluetooth Module (new BLE) must have the latest version of the software.
Starting CoDrone
Step 1. Connect the BLE board to PC
USB cable
PC
Connect in order PC > USB cable > USB Downloader (CP 210) > 4-pin cable > Rokit Bluetooth Module (BLE)
Red light blinks when connecting the PC to the USB cable.
Step 2. Download CoDrone's USB Helper Drive
Go to Software Download ▶ VCP Drivers page in silabs.com,
then download proper file for your operating system
Download USB Helper Download at the bottom of Products
menu in download page. (
Run USBHelper_vX.exe, select the port you connected the
board, and click CP210X Driver Setup.
Download Software
Drone Simulator
Download the program from [CoDrone]▶Drone Simulator
in robolinksw.com
Step 3. Pairing - Drone Simulator
new-type BLE
old-type BLE
Insert the battery Searching for signal (blinking)
For information related with Rokit Brick, Arduino, and Mobile application, go to robolinkSW.com.
for
*Irrelevant to DIP Switch
USB to Serial uploader
4-pin cable
USB Downloader
(CP 210)
Rokit Bluetooth
Module (BLE)
robolink.co.kr/download_eng.html
"X" is version information.
Select Proper BLE mode, and then press
the Connect button to connect to the PC.
Connected (solid)
Components - CoDrone Pro

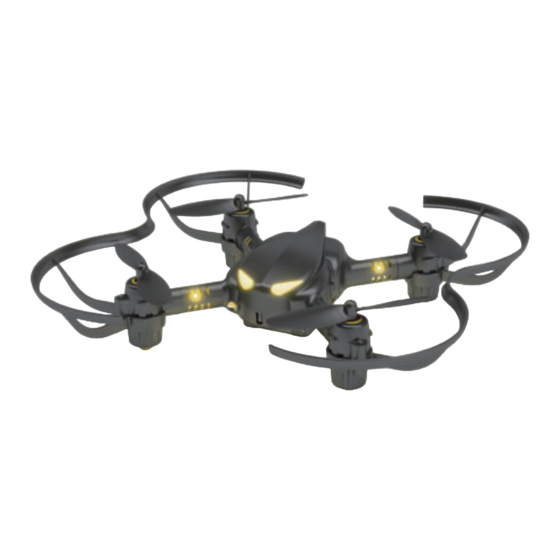

・ CoDrone
・ Smart Inventor Board
・ Rokit Bluetooth Module (BLE)
・ USB cable
Components - CoDrone Lite
・ CoDrone
・ Rokit Bluetooth Module (BLE)
・ Battery, Battery charger
Step 4. Control CoDrone
Drone Simulator
Up
Turn Down
left
Move up / down
Turn left / right
Take off : Press
Software
SMART
INVENTOR BOARD
)
What do I need?
PC SOFTWARE
What do I need?
Check with the video
・ Joystick modules ・ Battery case
・ Extra propellers ・ Battery charger
・ 4-pin cable ・ Battery
・ 3-pin cable ・ Feet (Blue board)
・ Extra propellers
・ 4-pin cable
・ USB cable
Forward
Warning!
Turn
Left Backward Right
Right
Remember how to
initiate an emergency
Move Forward /
stop
before flight!
Backward / Left / Right
W
key !
Through Smart Inventor
Board, You can program
LEARN TO
with joystick, analog
CODE
sensors, and digital
sensors.
What do I need?
You can do not only the
flight practice through si-
MOBILE APP
mulation but also control
real drone, record the fli-
ght pattern, trim, and so
on with Drone Simulator
on PC .
What do I need?
CoDrone page
http://robolink.co.kr
/sw_eng/codrone/
01_codrone.html
・ Propeller Replacement tool
・ Driver (Screw, Nut)
・ Bolts, Nuts, and Supporting beams
・ USB Downloader (CP 210)
・ USB Downloader
(CP2102 USB to UART Convertor)
・ Propeller Replacement tool
Once : Landing
Twice : Emergency
Stop
Rokit BRICK is based on the
way of Scratch's Drag & drop
so that beginners can use it
easily.
Use your smartphone app-
lication to control the drone,
drive kit, and camera kit.
(FPV : First-person view)
for
Download (eng)
http://robolink.co.kr
/download_eng.html
